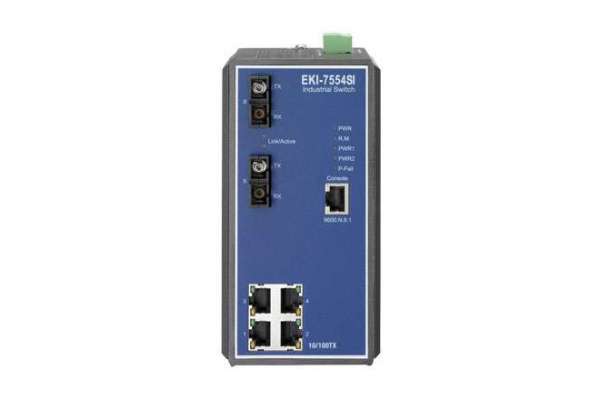

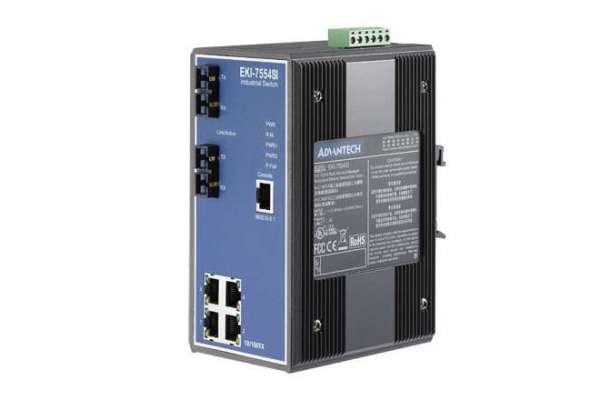

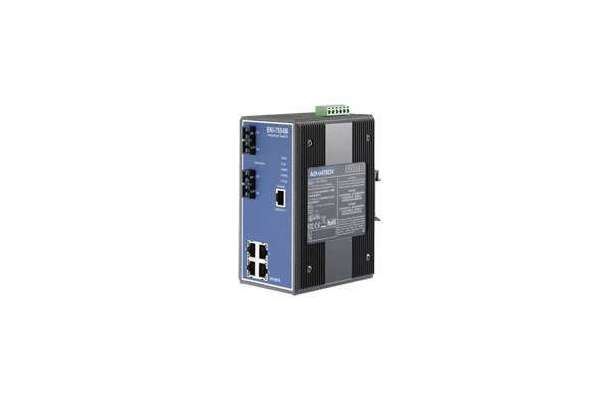

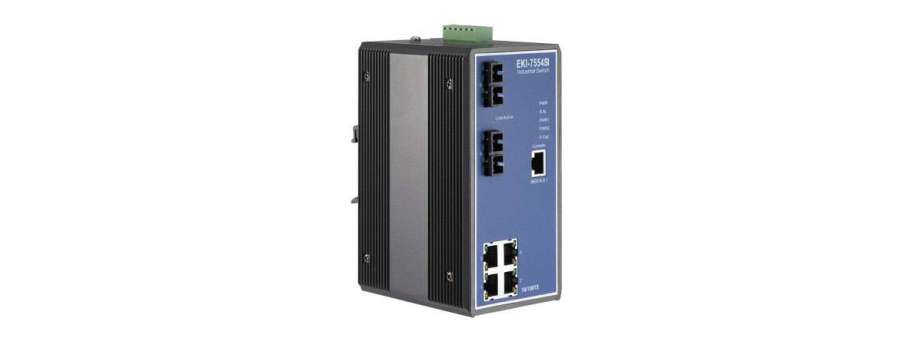

Industrial Ethernet Switch Advantech EKI-7554SI/MI

4+2 SC Type Fiber Optic Managed Industrial Ethernet Switch with Wide Temperature Advantech EKI-7554SI/MI

• 2 x SC type fiber ports, plus 4 Fast Ethernet ports. (EKI-7554SI/MI)
• 2 x SC type fiber ports, plus 8 Fast Ethernet ports. (EKI-7559SI/MI)
• Redundancy: X-Ring Pro (high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
• Management: Web, Telnet, Serial Console, SNMP
• Control: VLAN/GVRP, QoS, IGMP Snooping/Query, LACP, Rate Limit
• Security: IP/MAC, port binding, DHCP Server, IP access list, 802.1X, SSL, SNMPv3
• Diagnostic: Port Statistic, Port Mirroring, RMON, Trap, Email Alert, Syslog
• Dual 12 ~ 48 VDC power input and 1 relay output
• Supports wide operating temperature -40 ~ 75°C

Both the EKI-7554SI/MI and EKI-7559SI/MI support two SC type Fiber ports, EKI-7554SI/MI four Fast Ethernet ports and EKI-7559SI/MI can support up to eight Fast Ethernet ports. To create reliability in your network, the EKI-7554SI/MI come equipped with a proprietary redundant network protocol -- X-Ring Pro that was developed by Advantech, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 20 ms. Furthermore, EKI-7554SI/MI also supports many advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.

Additional information

Communications
Standard	IEEE 802.3, 802.3u, 802.3x, 802.3ad, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1X
LAN	10/100Base-T (X), 100Base-FX
Transmission Distance	Ethernet : Up to 100 m Multi-mode Fiber: Up to 2 km (EKI-7554MI) Single-mode Fiber: Up to 30 km (EKI-7554SI)
Transmission Speed	Up to 100 Mbps
Interface
Connectors	4 x RJ45 ports (EKI-7554SI/MI) 8 x RJ45 ports (EKI-7559SI/MI) 2 x SC type fiber optic connectors
LED Indicators	System: PWR, PWR1, PWR2, R.M., P-Fail 10/100T (X): Link/Activity, Duplex/Collision
Console	RS-232 (RJ45)
Network Management
Configuration	Web browser, Telnet, Serial console, TFTP, SNMPv1/ v2c/v3, Port Speed/Duplex Configuration, IPv6
VLAN	IEEE 802.1Q, GVRP, Port-based VLAN
Redundancy	Advantech X-Ring Pro (Recovery time < 20 ms at 250 pcs full loading ring structure), Dual Homing, Dual Ring, Couple Ring, 802.1w/D RSTP/STP
Security	IP Access security, port security, DHCP Server, Port and IP Binding, 802.1X Port Access Control, SSL
Traffic Control	IGMP Snooping/Query for multicast group management, Port Trunking, Static/802.3ad, LACP Rate limit and storm control, IEEE 802.1p QoS CoS/TOS/ DSCP priority queuing, IEEE 802.3x flow control
Diagnostics	Port Mirroring, Real-time traffic statistic, MAC Address Table, SNTP, Syslog, Email Alert, SNMP Trap, RMON
Mechanism
Enclosure	IP30, metal shell with solid mounting kits
Dimensions (W x H x D)	79 x 152 x 105 mm (3.11" x 5.98" x 4.13")
Mounting	DIN-rail, Wall
Power
Power Consumption	Max. 7.7 W (EKI-7554SI/MI) Max. 8.4 W (EKI-7559SI/MI)
Power Input	12 ~ 48 VDC, redundant dual inputs
Fault Output	1 Relay Output
Protection
Power Reverse	Present
Overload Current	Present
Environment
Operating Temperature	-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity	5 ~ 95% (non-condensing)
Storage Humidity	0 ~ 95% (non-condensing)
MTBF	262,230 hours (EKI-7554SI/MI) 264,964 hours (EKI-7559SI/MI)
Certification
Safety	UL 60950-1, CAN/CSA-C22.2 No.60950 Class I, Division 2 (EKI-7559MI/SI)
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
