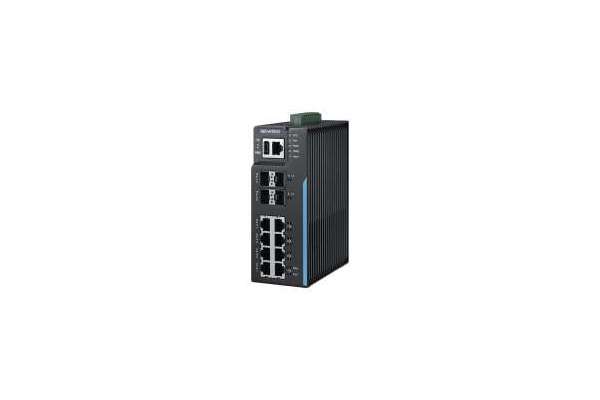

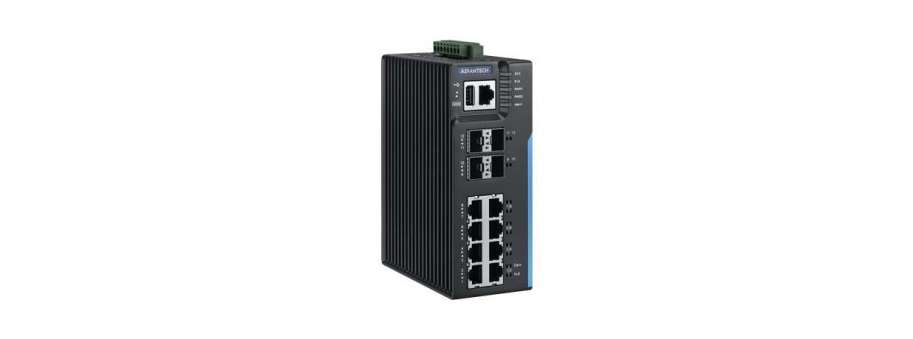

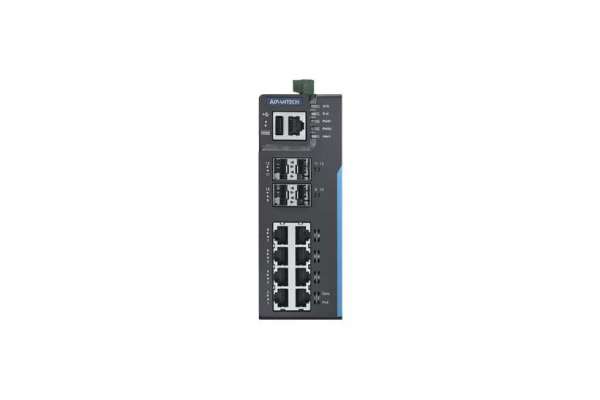

L3 DIN-Rail Managed Switch Advantech EKI-8712G-4XFPI

8 x GE & 4 x 10G SFP+ Port Managed Industrial L3 PoE Switch Advantech EKI-8712G-4XFPI

• 8 x Gigabit Ethernet ports + 4 x SFP+ ports
• L3 function: Static route, NAT
• Support 8 x IEEE 802.3at/af PoE ports for PD demands
• Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
• IXM function for fast deployment
• Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
• Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
• Supports NMS for easy and visualized to monitor and manage network remotely
• Dual 48 ~ 57 VDC power input and 1 x relay output

The EKI-8712G-4XFPI is a DIN rail L3 switch that supports static route and NAT. It comes with 8 10/100/1000BaseT(X) ports with 802.3af/at supported and 4 SFP+ ports. It features 8 IEEE802.3af/at PoE ports, -40~75°C operating temperature, and Din-Rail/Wall-Mount installation options, making it ideal for application which requires high-bandwidth transmission, more PoE ports, and Din-Rail installation. In addition, it is also embedded with Advantech exclusive features like IXM which benefits users for fast deployment and can dramatically save engineers time and costs, X-Ring Pro which achieves ultra-high speed recovery time of less than 20ms to ensure network stability, and Security Pack which protects your network from internal intrusion.
