IEC61850-3 Ethernet Switch Advantech EKI-8528

Industrial L3/L2 Full Gigabit Modular with 4x10G SFP+ Managed Ethernet Switch Advantech EKI-8528

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
EKI-8528-4XF-A	Керований модульний комутатор Adavntech EKI-8528-4XF 24G + 4 10G SFP+ L3 Modular Managed Switch	290 695,0
EKI-8528-4XFL-A	Керований модульний комутатор Adavntech EKI-8528 24G + 4 10G SFP+ L2 Modular Managed Switch	227 708,0

• IEC 61850-3 Edition 2 certified for reliable substation performance
• 3 x 8 Gigabit ports module slots + 4 x 10G SFP+ ports
• VRRP, RIPv1/v2, OSPFv2/v3, PIM and NAT supported (EKI-8528-4XF only)
• TSN and 1588v2(PTP) supported
• IEEE C37.238 power profiles supported
• Redundancy: X-Ring Pro (< 20ms @250units), X-Chain
• Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
• Wide operating temperature range of -40~85°C
• Dual power module slot options for 110/220VAC/VDC or 24/48VDC input
• IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
• Industrial Cybersecurity Certified: IEC 624432-4-1 and IEC 624432-4-2

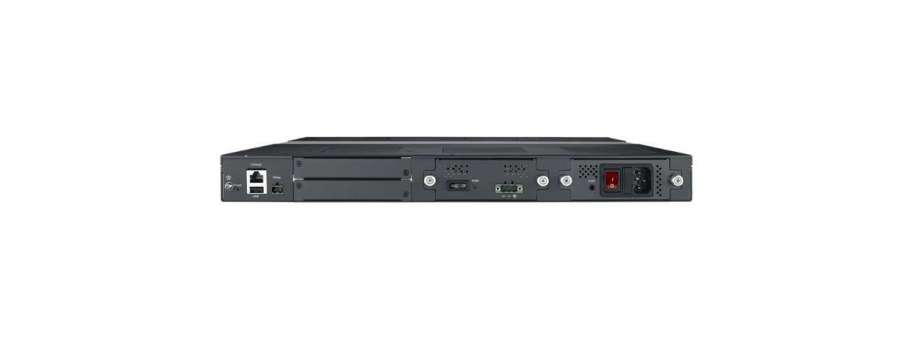

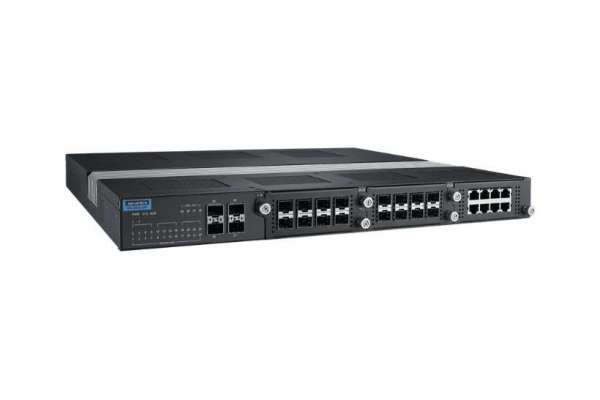

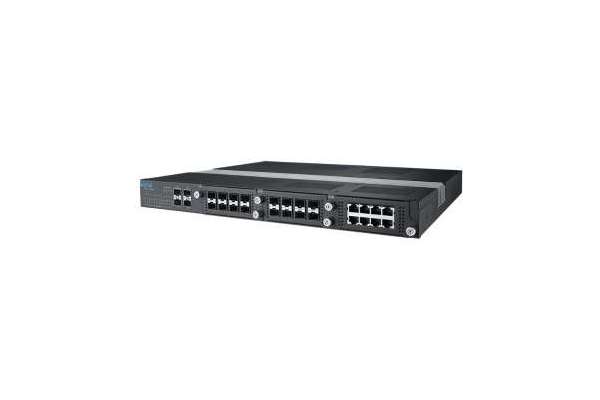

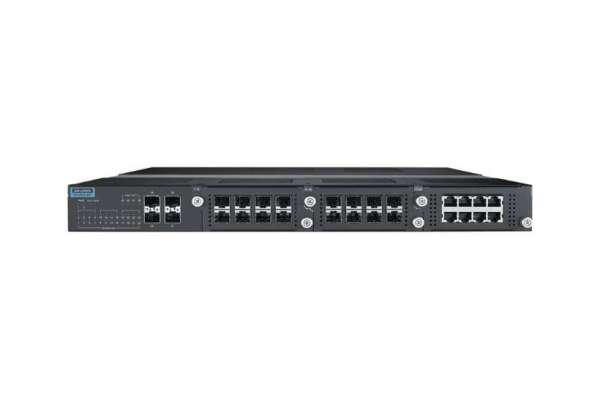

The EKI-8528 series is a 19” rackmount L3/L2 modular managed switch engineered as a power-plant-grade solution for mission-critical networks. Providing up to 24 Gigabit ports and 4x10GbE uplinks, this high-performance switch supports advanced routing protocols (OSPF, VRRP, PIM) with a 4.5K routing table to ensure seamless data exchange across large industrial infrastructures. Built for harsh power utility environments, it features heavy industrial hardware with superior EMC resistance against extreme electrical noise and temperature fluctuations. Addressing critical OT security, the series is fully compliant with the IEC 62443-4-2 cyber security standard, delivering robust component-level protection, enhanced authentication, and access control to safeguard infrastructure from cyber threats. Featuring flexible Ethernet (RJ45/SFP) and redundant power modules, the EKI-8528 provides exceptional modular versatility. It acts as a highly secure, resilient backbone engineered for demanding environments, including IEC 61850-3/IEEE 1613 power substations, renewable energy sites, and mission-critical data centers.

Additional information

Interface
Ethernet port	3 x 8 port module slots*
Console port	RJ45 (RS-232)
Relay output	2-pin Terminal Block
Power Connection	2 x Power supply module slots*
USB port	Type A
LED Display
System LEDs	PWR1, PWR2, SYS, Alarm
Port LED	Link Speed, link/ Act
Switch Properties
DRAM	256MB
Flash	128MB
Switching capacity	128 Gbps
Forwarding rate	95 Mpps
Max. IGMP Group	1024
Max static VLANs	256
VLAN ID range	1-4094
MAC table	32K
Jumbo frame	10KB
Packet Buffer	32Mbits
Max Priority Queues	8
Physical
Enclosure	Metal shell and die-casting
Protection Class	IP 30
Installation	1U 19" Rackmount
Dimensions(WxHxD)	438 x 44 x 363.5mm (17.24” x 1.73” x 14.31”)
Weight	5.5 kg
Environment
Operating Temperature	-40 to 85°C with full 28×Gigabit port operation -40 to 75°C with 24×Gigabit + 4×10G SFP+ port operation
Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity	5 ~ 95% (non-condensing)
Power
System Power Consumption	75 Watts(Max)
Input Voltage	High Voltage module: 110/220 VAC/VDC Low Vlotage module: 24/48 VDC
Over current Protection	Supported
Reverse Polarity Protection	Supported
Certification
Safety	EN62368
EMI	CISPR 22, 32, FCC Part 15B Class A
EMS	EN61000-4-2 (ESD); EN61000-4-3 (RS); EN61000-4-4 (EFT); EN61000-4-5 (Surge); EN61000-4-6 (CS), EN61000-4-6(CS), EN-61000-4-8 (PFMF)
Shock	IEC60068-2-27
Freefall	IEC60068-2-32
Vibration	IEC60068-2-6
Substation	IEC61850-3, IEEE1613
Railway	EN50121-4
Cybersecurity	IEC 62443-4-1, IEC 62443-4-2
L2 Features
Link Aggregate	Static Trunk, 802.3ad LACP
VLAN	802.1Q Tag-based, 802.1v Protocol-based VLAN, 802.1ad VLAN stacking, GVRP, GMRP, MAC/IP subnet/Private/Voice VLAN
Port Mirroring	Per port, Multi-source port
IP Multicast	IGMP Snooping v1/v2/v3, MLD Snooping
Redundancy	IEEE 802.1D-STP, IEEE 802.1s-MSTP,IEEE 802.1w-RSTP
