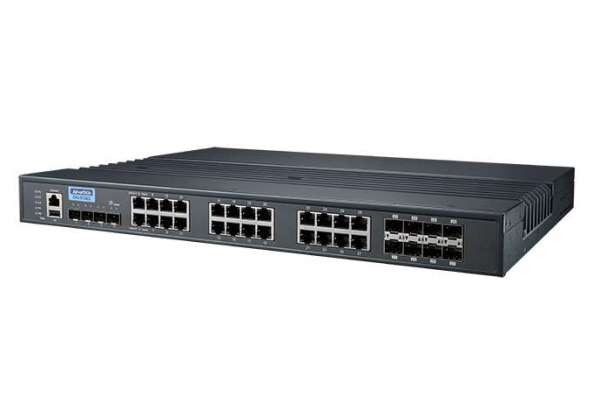

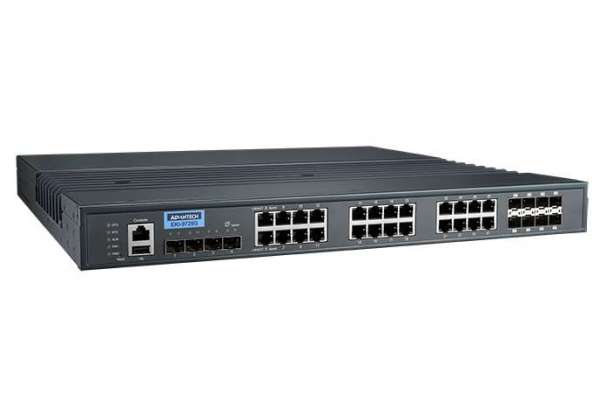

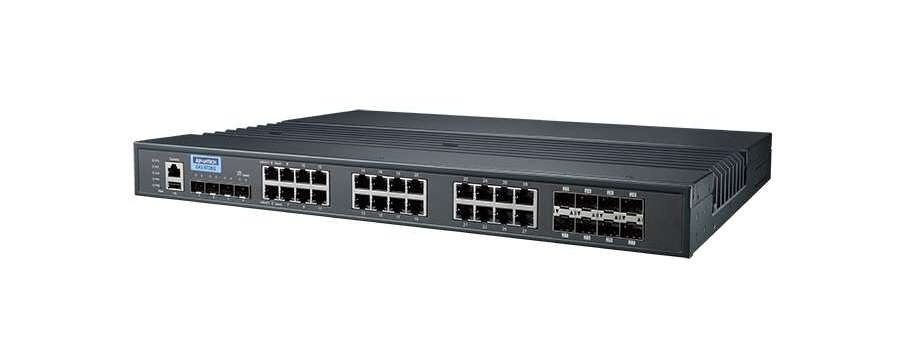

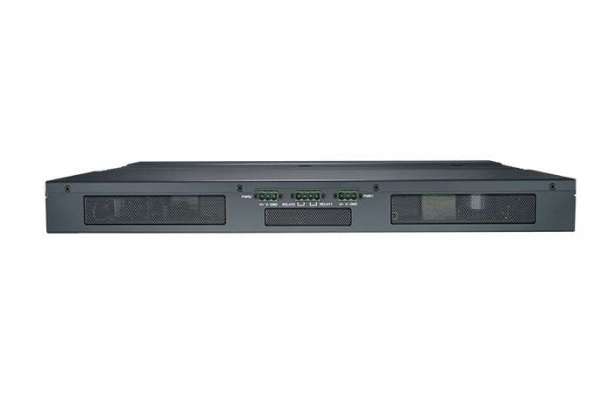

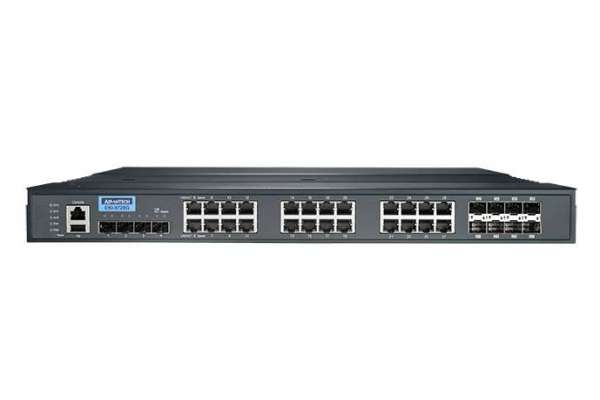

L3 Managed Switch Advantech EKI-9728G-4X8CI

Industrial Rackmount Managed Switch with AC/DC 4 x 10GbE + 16GE + 8GE, -40~85 ℃ Advantech EKI-9728G-4X8CI

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
EKI-9728G-4X8CI-AE	Управляемый промышленный коммутатор Ind. Rackmount L3 Managed Switch with AC/DC	257 960,0

• 16 x Gigabit RJ-45 ports + 4 x 10GbE SFP ports + 8 x Gigabit combo ports
• L3 function: Statis route, RIP, OSPF, VRRP, PIM-SM, PIM-DM
• SFP socket for easy and flexible fiber expansion
• Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB
• Security: 802.1x HTTPS, SSH, and SNMPv3
• Dual power input and 2 x relay output
• Wide operating temperature range of -40 ~ 85˚C
• Redundancy protocols: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D), MSTP

The EKI-9728G is an L3 management switch that supports RIP v1/v2, OSPF v1/v2/v3, and VRRP. Its wide operating temperature of -40 ~ 85°C means that it can operate reliably in harsh environments. Designed with 16 Gigabit ports, 4 10GbE SFP ports, and 8 Gigabit combo ports, this unit provides abundant and flexible connection options. Finally, the EKI-9728G series feature dual power inputs to ensure system stability, and 2 relay outputs for greater user flexibility.

Additional information

Communications
Standard	IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
10G SFP+ (P1-4)	Supports 1GBASE or 10GBASE SFP (*compatible with SERDES SFP interface)
Combo ports (P21-28)	10/100/1000BASE-TX, optional 100BASE or 1GBASE SFP (*compatible with SGMII or SERDES SFP interface)
Transmission Distance	Ethernet: Up to 100 m (4- wire Cat.5e, Cat.6 RJ45 cable suggested for Gigabit port) SFP: Up to 110 km (depends on SFP)
Interface
Connectors	16 x RJ45 (Ethernet) 8 x RJ45/SFP combo ports 4 x SFP+ portss 3-pin removable screw terminal (Power) 4-pin removable screw terminal (Relay)
LED Indicators	10/100T (X): Link/Activity, Duplex/Collision Gigabit Copper: Link/Activity, Speed (1000 Mbps) SFP: Link/Activity
Console	RS-232 (RJ45)
Mechanism
Enclosure	IP30, metal shell with solid mounting kits
Dimensions (W x H x D)	442 x 44 x 352 mm (17.4" x 1.73" x 13.85")
Mounting	1U 19" Rack mount
Power
Power Consumption	19.24 W @ 110VAC
Power Input	90 ~ 264AC/88 ~ 370VDC
Fault Output	2 Relay Outputs
Protection
Power Reverse	Present
Overload Current	Present
Environment
Operating Temperature	-40 ~ 85°C (-40 ~ 185°F)
Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity	5~95% (non-condensing)
Storage Humidity	5~95% (non-condensing)
Certification
EMI	CE FCC EN55011, EN55032
Safety	EN62368-1
EMS	EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
