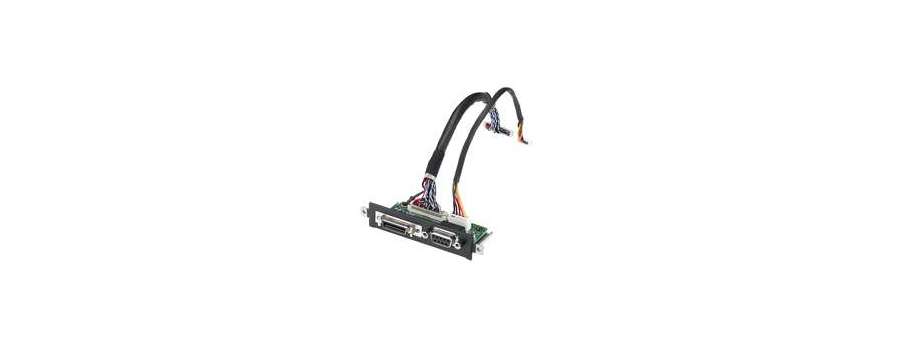

LCD Display Port iDoor Module by Advantech MOS-3340Y-1201E

Price and avalability

Partnumber Description Price VAT incl Avalability
MOS-3340Y-1201E Мережевий пристрій/Перетворювач інтерфейсів LVDS module 24/48 bit , 3.3V/5V LCD  2 045,9
  • Supports 18/24/36/48 -bit LVDS Signal
  • Supports 5V Standard Power Supply, 3.3V/12V by Platform Support
  • LVDS module kit with iDoor design for easy installation
  • MOS-3340 support by project only (TPN, MOQ=30)

Additional information

LCD Support 18-bit/24-bit/36-bit/48-bit LVDS signal, resolution up to WUXGA 1280x1024 at 60Hz
LCD Connector DB9 (Backlight) + 26 Pin D SUB (LVDS Signal)
Supply Voltage and Current Default support +5V ±5%, 2.5A +3.3V/12V support by platform
Temperature Ranges Operation: -40 to +85 °C
Dimensions (L x W x H) 36.50 x 89.60 x 19.4 mm
Compatible Model ARK-2230L, ARK-6322
