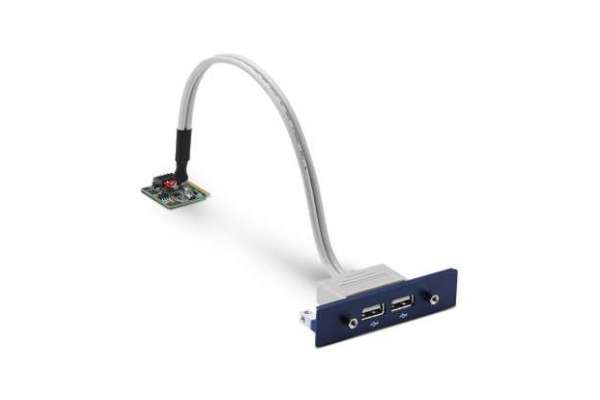

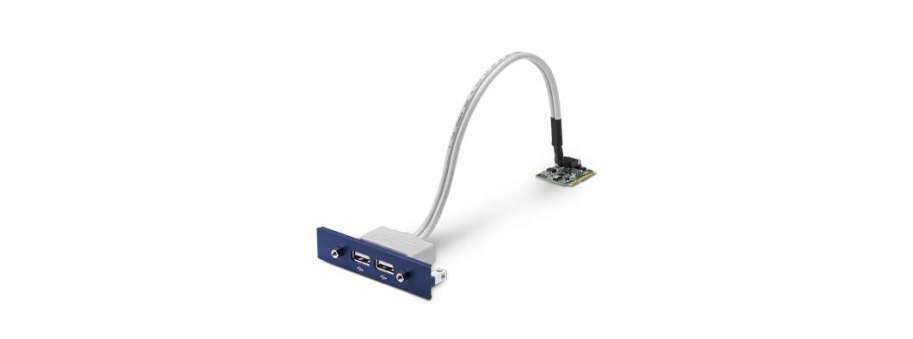

USB Port iDoor Module Advantech MOS-2110Z-1201E

Price and avalability

Partnumber Description Price VAT incl Avalability
MOS-2110Z-1201E Мережевий пристрій/Перетворювач інтерфейсів USB module, 2-Ch, PCIe I/F  1 735,7
  • 2-Ch USB 2.0 Hi-Speed ports
  • Half size MiniPCIe type compliant with PCI Express TM 2.0
  • Compliant with xHCI specification
  • Support USB 2.0 and USB 1.1 devices

Additional information

Technology USB 2.0 port
Host site Interface MiniPCIe thru PCIe interface
USB Connector 2.0 mm, 2x5-pins, male pin header
Support Voltage and Current + 5.0 V, 500 mA*
OS Supported Windows XP/ Vista/ 7/ 8/8.1 (32 and 64-bits)
Temperature Ranges
  • Operation: -40 to +85 °C
  • Storage: -40 to +85 °C
Dimensions (L x W x H) 26.65 x 30 x 15 mm
