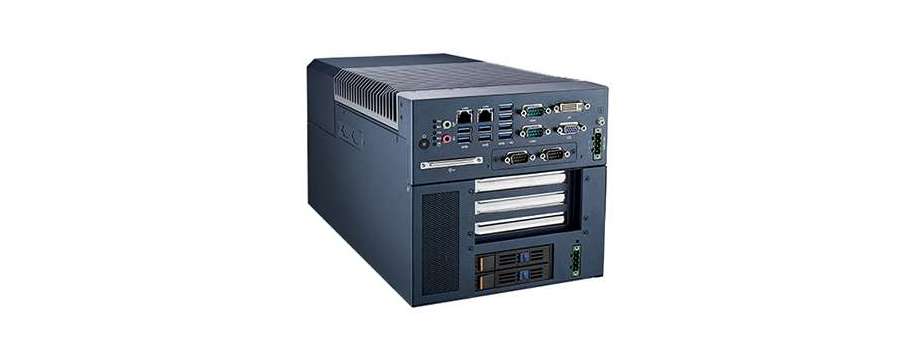

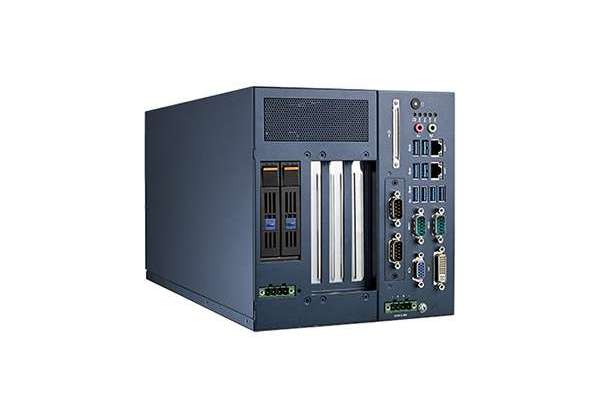

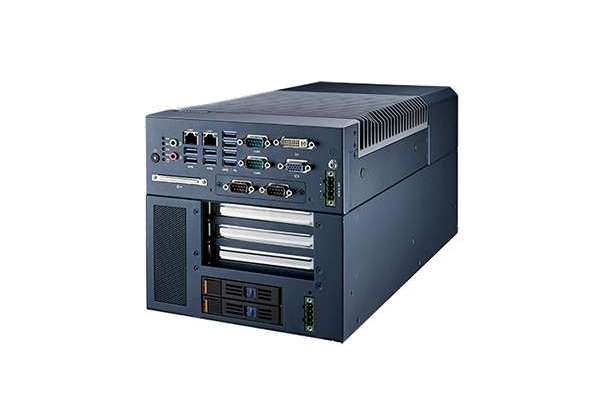

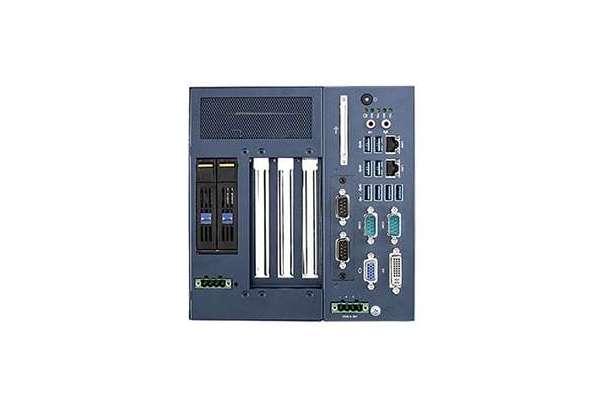

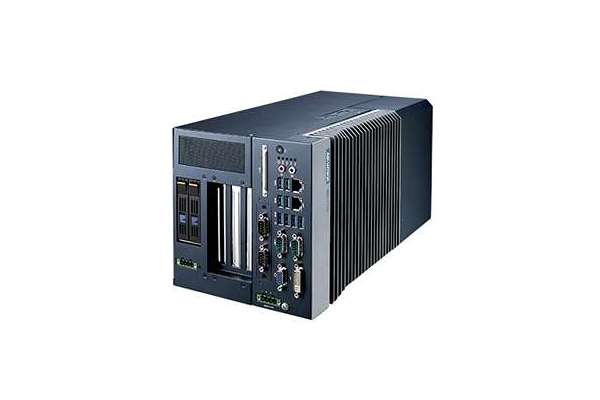

Industrial Computer i-Module, 1 PCIe x16 1 PCIe x4 Advantech MIC-75G20
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| MIC-75G20-00A2 | Модуль розширення для Advantech MIC-7xxx серії MIC-75G20 i-module, 1PCIEX16+1PCIEX4 | 29 677,3 | |
| MIC-75G20-10A2 | Модуль розширення для Advantech MIC-7xxx серії MIC-75G20 i-module, 1PCIEX16+1PCIEX4 | 31 965,3 |
MIC-75G20 supports nVIDIA double-deck high performance 250W fan-based cards. Robust power design ensures MIC-7 systems and GPU card's reliability under high power
consumption application.
- Offering powerful GPU solution with nVIDIA 250W, 2-slot width/285mm length GPU cards for new AI application
- Dual 24VDC power inputs with reliable power and OCP solution for up to 600W maximum peak power currency
- Intelligent power status indicating LED for system and GPU card independently
- Versatile wall-mount, table-mount, suitable for any industrial environment deployed
- Dual front accessible storage bay for easy swap
- Up to 40°C op. temp., 0.5 Grms op. vibration
- IP30 rating with fan filter, suitable for outdoor or industrial environment
- Compact size design
Additional information
Part Number |
MIC-75G20-00A1 |
| Cooling | |
|
Chassis Fan |
1 x 8025 fan (4500RPM, 57CFM) |
| Environment | |
|
Operating Temperature (With Industry SSD) |
0 ~ 40°C (with SSD, 0.7m/sec air flow) |
|
Operating Vibration |
0.5 Grms (with SSD) |
|
Shock |
10 G (with 11 ms duration, half sine wave) |
| LED & Button | |
|
LED |
GPU power status x1 |
| Mechanical | |
|
Dimension |
110 x 192 x 350 mm (WxHxD) |
|
Mounting |
Desk/wall-mounting |
|
Weight |
2.99 Kg |
| Power | |
|
Connector |
2x 6-pin PWR Conn. for GPU (12VDC, 14A per Conn.), 1x 4-pin PWR Conn. (12VDC, 5A) |
|
Interface |
4-pin phoenix |
|
Power Input |
24VDC |
| Power Supply | |
| Power Supply |
480W |
| Expansion Slot | |
|
PCIEx4 |
PCIe x4 slot |
|
PCIEx16 |
PCIe x16 slot (Support nVIDIA 2-slot width/285mm length GPU cards) |
| Storage | |
|
2.5" Drive Bay |
2 x 2.5" SATA removable storage bay (Max. height 15mm) |
