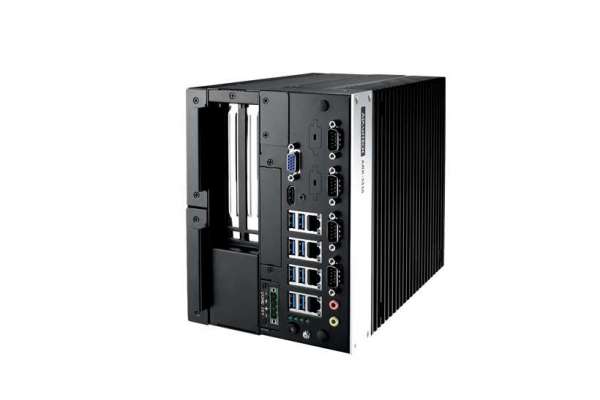

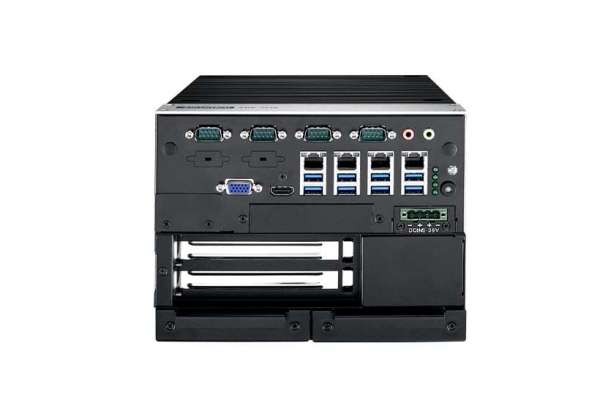

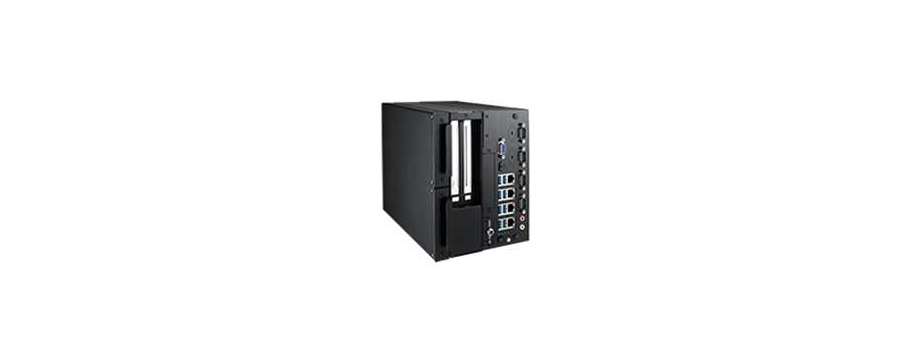

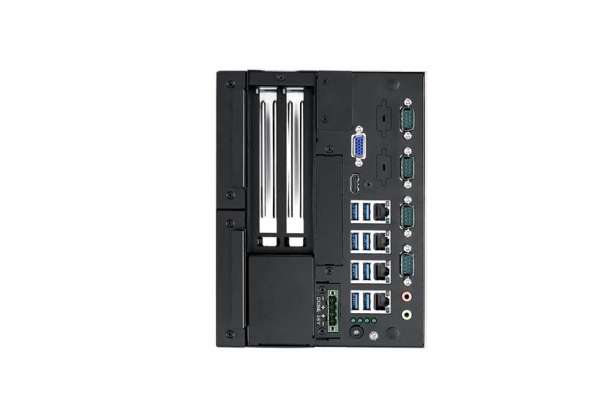

High performance computer ARK-3530F

High performance fanless computer Advantech ARK-3530F for Intel 7-th Gen

Industrial Computer >> Embedded computers with expansion slots

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Intel®Xeon® E3 / Core™ i3/i5/i7 LGA1151 Modular Expansion Fanless Box PC

  • Support Intel® Xeon® / 6th & 7th Gen. Core™ i3/i5/i7 processor
  • Triple independent display: VGA + HDMI + Optional Display
  • DDR4 SO-DIMM memory support up to 32 GB
  • 9-36V power module compatible with all-in-one ordering
  • Optional modular design for 2.5" hard drive bays: internal /removable (support up to 4 sets)
  • Advantech iDoor module compatible
  • Advantech EMIO miniPCIe module compatible with all-in-one ordering

Price and avalability

Partnumber Description Price VAT incl Avalability
ARK-3530F-00A1 Встраиваемый компьютер ARK-3530F Intel KBL 4LAN+8USB3.0  34 827,3
96MPI7K-3.6-8M11T Процессор CORE 3.6G 8M 1151P 4CORE I7-7700  15 637,5
96MPI5K-3.4-6M11T Процессор CORE 3.4G 6M 1151P 4CORE I5-7500  9 912,9
96MPI7S-3.4-8M11T Процессор CORE 3.4G 8M 1151P 4 CORE I7-6700  15 637,5
AQD-SD4U8GN24-SE Модуль пам'яті (ОЗП) 8G SO-DDR4-2400 1GX8 1.2V SAM  2 667,1
AQD-SD4U16N24-HE Модуль пам'яті (ОЗП) 16G SO-DDR4-2400 1GX8 1.2V HYX  5 068,1
SQF-S25M8-256G-SAC Твердотільний диск/накопичувач SQF 2.5 SATA SSD 830 256G MLC (0~70°C) [ES]  8 684,8
96PSA-A220W24P4-1 Внешний источник питания ADP A/D 100-240V 220W 24V C14 TERMINAL BLOCK 4P  3 086,6 Доступно
MOS-2220-X1101E Мережевий пристрій/Перетворювач інтерфейсів Parallel LPT module, 1-Ch, USB I/F,  1 116,4 Доступно
MOS-2120-Z1201 Dual Intel I210 GbE LAN iDoor, 2-Ch, PCIe I/F  2 799,2

Additional information

Model

ARK-3530F-00A1

Processor



CPU

E3-1235L V5

Frequency

2.0GHz

L3 Cache

8MB

TDP

25W

Chipset

C236

BIOS

AMI EFI 127Mbit

Memory



Technology

DDR4 2133 MHz

Max. Capacity

32 GB

Socket

2 x 260-pin SO-DIMM

Graphics



Chipset

Intel® HD Graphics 630

Graphic Engine

Direct x 12, OpenGL 4.4 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9

VGA

1920x1200@ 60Hz

HDMI

1 HDMI port, HDMI 2.0 for HD video playback, 3840x2160@30Hz

Triple Display

VGA+HDMI + 3rd display module

Optional 3rd Display module DVI-D / DP / HDMI Display Port

Ethernet



LAN1

10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan

LAN2

10/100/1000 Mbps Intel I210 GbE, support Wake On Lan

Audio



Interface

Realtek ALC888S, High Definition Audio, Line-out, Mic-in

Others



Watchdog timer

255 levels timer interval, setup by software

TPM

TPM 2.0 (Optional by project support)

I/O



Serial port

4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper)

USB

8 x USB 3.0 ports

Digital I/O

16 bit DIO

PS/2

1 port support by option cable and bracket

Optional I/O

16bit DIO or 2 x RS-232 ports

Expansion



Mini PCIe

2 x Full-size Mini PCIe (2 x support mSATA, 1 x support SIM holder)

M.2

1 x E key for WiFi

iDoor Module

1 set (Optional)

Add-on Card Slot

Maximum card size 110mm (H) x 180mm (L) Suggest maximum power consumption 10W for each slot 2 Slots PCI (Default) 2 Slots PCIex8 (Option AMO-R026) 1 Slots PCIex16 (Support by project)

Storage



HDD

2 x 2.5" SATAIII HDD Bay with Max Height 15mm (Support Up to 4 x 2.5" SATAIII HDD Bay by Optional AMK-A0028E)

mSATA

2 x mSATA socket (Share with Mini PCIe)

Software Support



Microsoft Windows

Windows 10 (Windows 7 for 6th Gen CPU only)

Linux

Support by project

Power



Power Type

AT/ ATX

Input Voltage

9 ~ 36 VDC

Power Adaptor

AC to DC, 150W (Optional)

Consumption

Typical 25.68W, Max. 88.92W

Mechanical



Construction

Aluminum housing

Mounting

Desk-mounting

Dimensions

156.5 x 205 x 230 mm (6.16" x 8.07" x 9.06")

Weight

5.87Kg

Environment



Operational Temperature

25W/35W/65W(only 6th Gen) Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow Under 73W processor with HDD: 0 ~ 40° C with 0.7m/s air flow

Storage Temperature

-40 ~ 85° C

Relative Humidity

95% @ 40° C (non-condensing)

Vibration during Operation

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock During Operation

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

Certification



EMC

CE/FCC Class B, CCC, BSMI

Safety Certifications

CB, UL, CCC, BSMI
