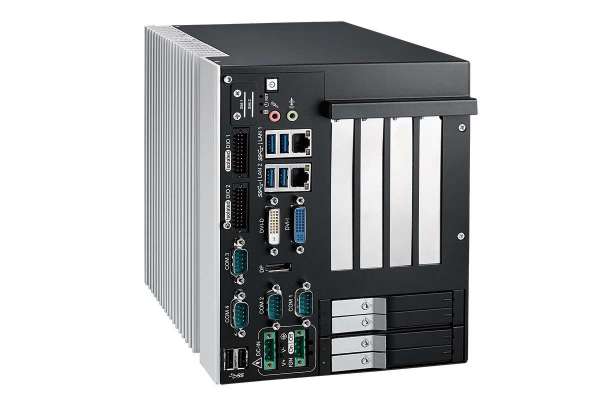

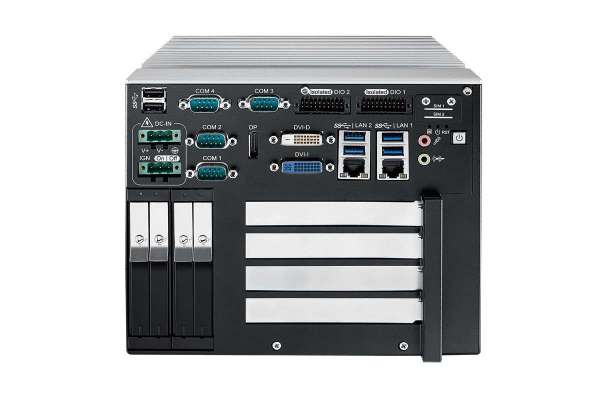

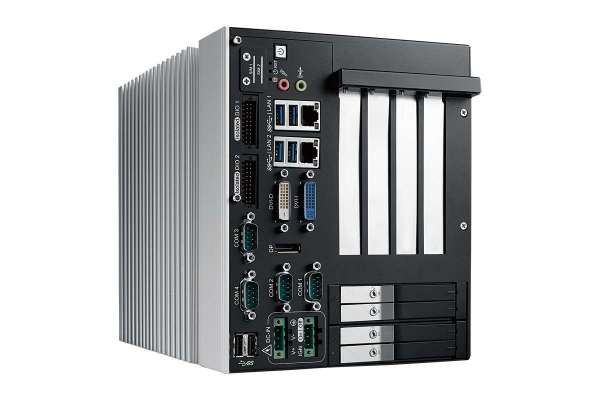

Fanless Robust Computing System with 4 PCI/PCIe slots expansion and multiple I/O Vecow RCS-9440R
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| RCS-9404 | Промисловий компактний комп'ютер Vecow RCS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 2 GbE LAN, 4 PCI, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO | 79 212,0 | |
| RCS-9404R | Промисловий компактний комп'ютер Vecow RCS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 2 GbE LAN, 4 PCI, 4 Front-access SSD Tray, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO | 84 378,0 | |
| RCS-9422 | Промисловий компактний комп'ютер Vecow RCS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 2 GbE LAN, 1 PCIex16, 1 PCIe x4, 2 PCI, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO | 76 198,5 | |
| RCS-9422R | Промисловий компактний комп'ютер Vecow RCS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 2 GbE LAN, 1 PCIe x16, 1 PCIe x4, 2 PCI, 4 Front-access SSD Tray, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO | 81 364,5 | |
| RCS-9440 | Промисловий компактний комп'ютер Vecow RCS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 2 GbE LAN, 1 PCIe x8, 3 PCIe x4, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO | 76 198,5 | |
| RCS-9440R | Промисловий компактний комп'ютер Vecow RCS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 2 GbE LAN, 1 PCIe x8, 3 PCIe x4, 4 Front-access SSD Tray, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO | 81 364,5 | |
| PWA-280W-WT | Промислове джерело живлення др комп'ютера Vecow PWA-280W-WT (280W, 24V, 85VAC to 264V AC Power Adapter with 3-pin Terminal Block, Wide Temperature -30°C to +70°C ) | 16 789,5 | |
| PWA-160W-WT | Промислове джерело живлення для комп'ютера Vecow PWA-160W-WT (160W, 24V, 85VAC to 264VAC Power Adaptor with 3-pin Terminal Block, Wide Temperature -30°C to +70°C) | 10 418,1 |

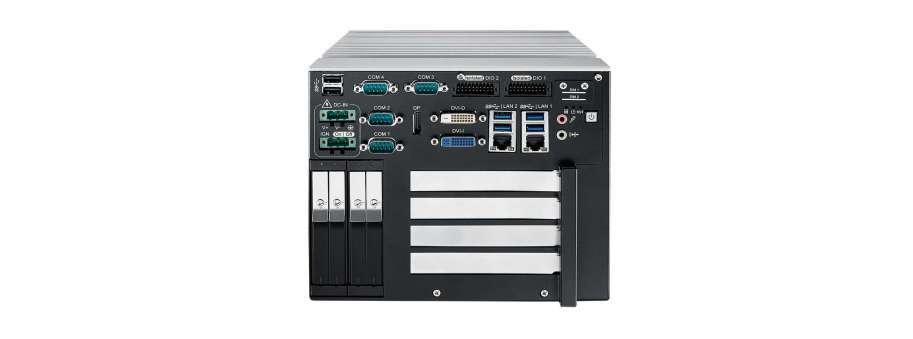

RCS-9440R Overview
Workstation-grade 7th Generation Intel® Xeon®/Core™ i7/i5/i3, fanless -40°C to 75°C operating temperature, all-in-one integrated features, multiple I/O connection, 4/2 SSD Tray, 3 SIM sockets for outstanding mobile availability, 4/2 multiple PCI/PCIe expansion, smart manageability, 6V to 36V power input with 80V surge protection, ignition power control, intelligent circus protection and trusted reliability, Vecow RCS-9000 Series Fanless Robust Computing System makes versatile expansions possible in Machine Vision, Factory Automation, Robot Control, Automated Optical Inspection (AOI), Machine Automation, Industry 4.0 and any high-performance IoT applications.
Features
- LGA 1151 Socket supports workstation-grade 7th generation Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake) with C236
- Max 250W Power Budget for PCI/PCIe expansions
- Onboard DVI-I, DVI-D and DisplayPort display interface, up to 3 independent HD displays
- 2 DDR4 2133MHz Memory, up to 32GB (ECC/Non-ECC)
- Fanless, -40°C to 75°C Operating Temperature
- 6V to 36V DC-in with 80V Surge Protection
- Configurable Ignition Power Control
- 2 Independnet Gigabit LAN supports iAMT 11.0
- 3 SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS
- 4 2.5" SSD/HDD support software RAID 0, 1, 5, 10
- Front-access : 2 SIM, 4 SSD Tray, 1 CFast, 6 USB 3.0, 4 COM
- 1 PCIe x8, 3 PCIe x4
- 7 USB 3.0, 4 COM, 3 Mini PCIe
- 32 Isolated DIO
Additional information
Specifications
|
System |
|
|
Processor |
Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S) |
|
Chipset |
Intel® C236 |
|
BIOS |
AMI |
|
SIO |
IT8786E |
|
Memory |
2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/Non-ECC) |
|
I/O Interface |
|
|
Serial |
4 COM RS-232/422/485 |
|
USB |
- 7 USB 3.0 (6 External, 1 Internal) - 2 USB 2.0 (Internal) |
|
Isolated DIO |
32 Isolated DIO : 16 DI, 16 DO |
|
LED |
Power, HDD |
|
SIM Card |
3 SIM Card Socket (2 External, 1 Internal) |
|
Expansion |
|
|
Mini PCIe |
3 Mini PCIe Socket : - 2 Full-size Mini PCIe for PCIe/USB/External SIM Card - 1 Full-size Mini PCIe for PCIe/USB/Internal SIM Card/mSATA |
|
PCIe |
- 1 PCIe x8 Slot |
|
Graphics |
|
|
Graphics Processor |
Intel® HD Graphics 630/530 |
|
Interface |
- DVI-I : Up to 1920 x 1200 @ 60Hz - DVI-D : Up to 1920 x 1200 @ 60Hz - DisplayPort : Up to 4096 x 2304 @ 60Hz |
|
Storage |
|
|
SATA |
4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10 |
|
mSATA |
1 SATA III (Mini PCIe Type, 6Gbps) |
|
Storage Device |
- 1 CFast Socket (Internal) - 4 2.5" SSD/HDD Tray |
|
Audio |
|
|
Audio Codec |
Realtek ALC892, 5.1 Channel HD Audio |
|
Audio Interface |
1 Mic-in, 1 Line-out |
|
Ethernet |
|
|
LAN 1 |
Intel® I219LM Gigabit LAN supports iAMT 11.0 |
|
LAN 2 |
Intel® I210 Gigabit LAN |
|
Power |
|
|
Power Input |
6V to 36V, DC-in |
|
Power Interface |
3-pin Terminal Block : V+, V-, Frame Ground |
|
Ignition Control |
16 Mode (Internal) |
|
Remote Switch |
3-pin Terminal Block |
|
Surge Protection |
Up to 80V/1ms Transient Power |
|
Others |
|
|
TPM |
Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
|
Watchdog Timer |
Reset : 1 to 255 sec./min. per step |
|
Smart Management |
Wake on LAN, PXE supported |
|
HW Monitor |
Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
|
Software Support |
|
|
OS |
Windows 10, Windows 8.1, Windows 7, Linux |
|
Mechanical |
|
|
Dimension (W x L x H) |
172mm x 250mm x 210mm (6.8" x 9.8" x 8.3") |
|
Weight |
RCS-9000H : 5 kg (11 lb) RCS-9000 : 3.8 kg (8.4 lb) |
|
Mounting |
Wallmount by mounting bracket |
|
Environment |
|
|
Operating Temperature |
35W TDP CPU : - Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F) - Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F) 65W TDP CPU : Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F) 80W TDP CPU : Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to 45°C (-40°F to 113°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Humidity |
5% to 95% Humidity, non-condensing |
|
Relative Humidity |
95% at 70°C |
|
Shock |
- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms |
|
Vibration |
- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
|
EMC |
CE, FCC, EN50155, EN50121-3-2 |
