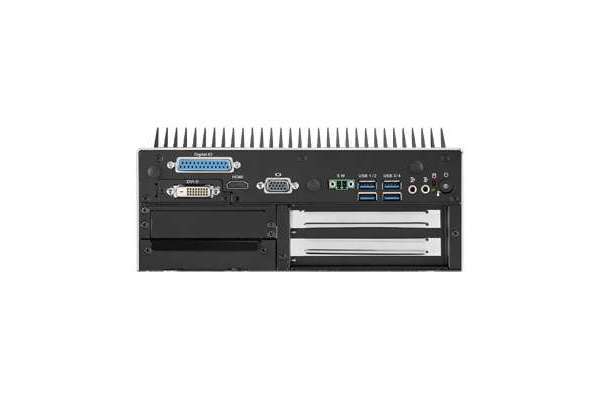

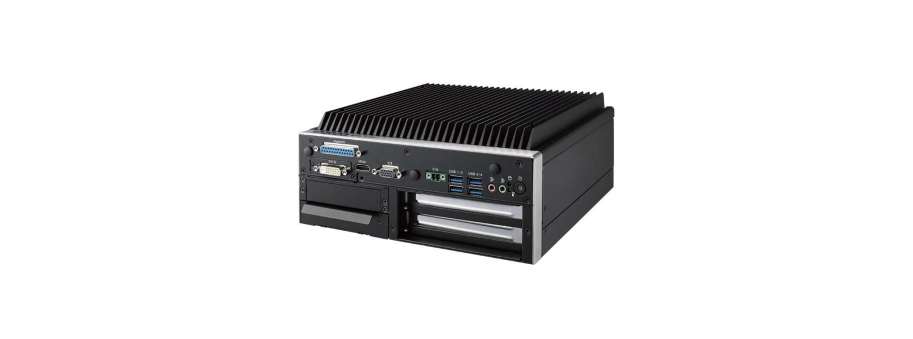

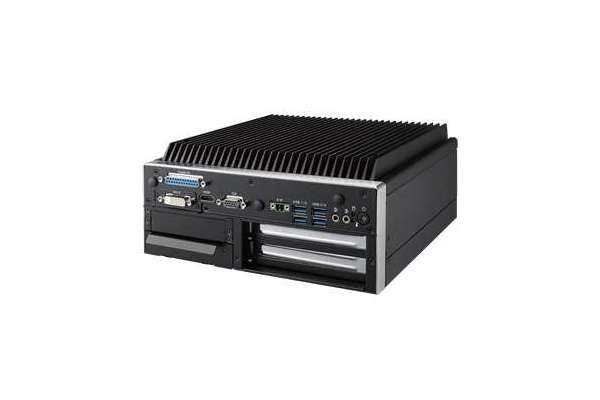

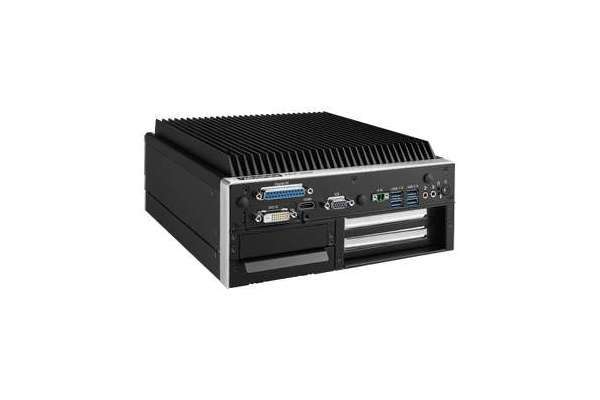

High performance fanless computer ARK-3520

High performance Intel Core 6th Gen fanless embedded expandable computer Advantech ARK-3520

Industrial Computer >> Embedded computers with expansion slots

 Price and avalability

Manufacturer: Advantech Co., Ltd.

ARK-3520 series features high performance computing Intel Core 6th Gen i5 and i7 CPU, multi IO expansions, and wide temperature range, being ideal for automation system, factory automation and cabinet integration.

ARK-3520P

6th Gen. Intel® Core™ i3/ i5/ i7 with Expansion slots and wide range power Fanless Box PC

  • Intel® Core™ i3/i5/i7 processor (BGA)
  • Triple independent display: VGA + HDMI + Option Display
  • DDR4 SO-DIMM memory up to 32 GB
  • Flexible Expansion via PCI/PCIex4
  • 9-36V wide range Power input

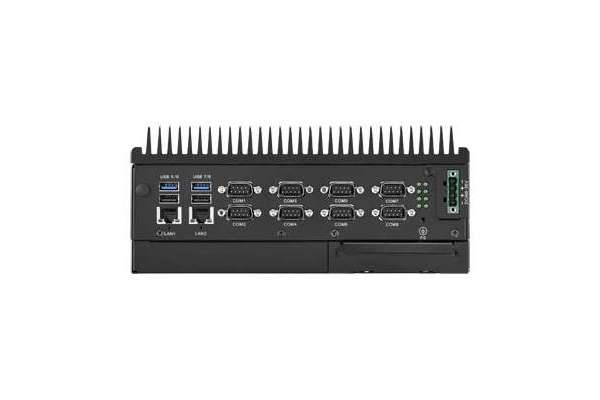

  • Versatile I/Os including 6 x high speed USB 3.0 and 8 x COM ports
  • 2 Removable 2.5" HDD drive bay
  • Advantech iDoor module compatible

ARK-3520L

6th Gen. Intel® Core™ i3/ i5/ i7 Modular Expansion Fanless Box PC

  • 6th Gen. Intel® Core™ i3/i5/i7 mobile processor (BGA)
  • Triple independent display: VGA + HDMI + Optional Display
  • DDR4 SO-DIMM memory support up to 32 GB
  • Option 9-36V power module compatible with all-in-one ordering
  • Optional modular design for 2.5" hard drive bays : internal /removable (support up to 2 sets)
  • Advantech iDoor module compatible
  • Advantech EMIO miniPCIe module compatible with all-in-one ordering
  • Advantech ARK Plus AMO-3xxx series module compatible

Advantech ARK fanless embedded systems are designed to provide rapid configurable modular design for industrial embedded IoT applications. They provide more than just I/O customization services, but also a selection of innovative software packages including Advantech WISE-PaaS, cloud services, and AI analytics suite.

Plug & Play Modular Expansion Accelerates Integration

  • iDoor technology enables differentiated I/O port configurations and provides flexible selections for diverse applications
  • ARK Plus expands the I/O by attaching additional layers to the base of the ARK system to accommodate more MIOe add-on boards and removable hard disks
  • Diverse power modules provide wide voltage support for 12~24V or 9-36VDC

Industrial I/O with Isolation Protection

  • I/O isolation protects systems and electronic equipment for improved factory automation
  • iDoor modules with opto-isolation prevent equipment signal and power transmission lines from being subjected to voltage surges induced by electrostatic discharge, uneven power supply or signal disruption

Price and avalability

Partnumber Description Price VAT incl Avalability
ARK-3520P-U7A1E Встраиваемый компьютер ARK-3520P ,i5-6440EQ, 2.7GHz, 2PCI slots  44 870,9 Доступно
ARK-3520P-U8A1E Встраиваемый компьютер ARK-3520P ,i7-6820EQ2.8GHz, 2PCI slots  53 749,8
ARK-3520L-U7A1E Компактный компьютер ARK-3520L, i5-6440EQ, 2.7GHz  41 582,3
ARK-3520L-U8A1E Компактный компьютер ARK-3520L, i7-6820EQ, 2.8GHz  50 461,2
96PSA-A220W24P4-1 Внешний источник питания ADP A/D 100-240V 220W 24V C14 TERMINAL BLOCK 4P  2 886,8 Доступно
96PSA-A150W19P4-1 Зовнішнє джерело живлення POWER SUPPLY, ADP A/D 100-240V 150W 19V  1 724,5
AQD-SD4U16N24-HE Модуль пам'яті (ОЗП) 16G SO-DDR4-2400 1GX8 1.2V HYX  3 825,4
AQD-SD4U8GN24-SE Модуль пам'яті (ОЗП) 8G SO-DDR4-2400 1GX8 1.2V SAM  1 950,2
EWM-W157H01E Модуль беспроводной связи 802.11 a/b/g/n/ac,RTL8821AE,with BT4.0  664,6 Доступно
SQF-SMSM4-64G-S9C Твердотельный диск/накопитель SQF MSATA 630 64G MLC (0~70°C)  2 424,2
SQF-SMSM4-128G-S9C Твердотельный диск/накопитель SQF MSATA 630 128G MLC (0~70°C)  4 279,5

Additional information

Model

ARK-3520P-U7A1E

ARK-3520P-U8A1E

ARK-3520L-U7A1E

ARK-3520L-U8A1E

Processor



CPU

Intel Core i5-6440EQ

Intel Core i7-6820EQ

Intel Core i5-6440EQ

Intel Core i7-6820EQ

Core Number

4

4

4

4

Frequency

2.7GHz

2.8GHz

2.7GHz

2.8GHz

L3 Cache

6 MB

8 MB

6 MB

8 MB

Watts

45W

45W

45W

45W

Chipset

Intel QM170

Intel QM170

Intel QM170

Intel QM170

BIOS

AMI EFI 128Mbit

AMI EFI 128Mbit

AMI EFI 128Mbit

AMI EFI 128Mbit

Memory



Technology

DDR4 2133MHz

DDR4 2133MHz

DDR4 2133MHz

DDR4 2133MHz

Max. Capacity

32 GB

32 GB

32 GB

32 GB

Socket

2 x 260-pin SO-DIMM

2 x 260-pin SO-DIMM

2 x 260-pin SO-DIMM

2 x 260-pin SO-DIMM

Graphics



Chipset

Intel QM170 Integrated GFX Gen 9

Intel QM170 Integrated GFX Gen 9

Intel QM170 Integrated GFX Gen 9

Intel QM170 Integrated GFX Gen 9

Graphic Engine

Direct x 12, OpenGL 4.4, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8, HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9

Direct x 12, OpenGL 4.4, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8, HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9

Direct x 12, OpenGL 4.4, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8, HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9

Direct x 12, OpenGL 4.4, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8, HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9

VGA

Up to 1920 x 1200 at 60 Hz

Up to 1920 x 1200 at 60 Hz

Up to 1920 x 1200 at 60 Hz

Up to 1920 x 1200 at 60 Hz

HDMI

1 HDMI port, HDMI 1.4a for HD video playback, 3840x2160 @30Hz

1 HDMI port, HDMI 1.4a for HD video playback, 3840x2160 @30Hz

1 HDMI port, HDMI 1.4b for HD video playback, 3840x2160@30Hz

1 HDMI port, HDMI 1.4b for HD video playback, 3840x2160@30Hz

Triple Display

VGA+HDMI + 3rd display module (DVI-D / DP / 2nd HDMI Display Port)

VGA+HDMI + 3rd display module (DVI-D / DP / 2nd HDMI Display Port)

VGA+HDMI + 3rd display module (DVI-D / DP / 2nd HDMI Display Port)

VGA+HDMI + 3rd display module (DVI-D / DP / 2nd HDMI Display Port)

Ethernet



LAN1

10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan

10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan

10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan

10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan

LAN2

10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

Audio



Interface

Realtek ALC888S, High Definition Audio, Line-out, Mic-in

Realtek ALC888S, High Definition Audio, Line-out, Mic-in

Realtek ALC888S, High Definition Audio, Line-out, Mic-in

Others



Watchdog timer

255 levels timer interval, setup by software

255 levels timer interval, setup by software

255 levels timer interval, setup by software

255 levels timer interval, setup by software

TPM

TPM 2.0 (Optional by project support)

TPM 2.0 (Optional by project support)

TPM 2.0 (Optional by project support)

TPM 2.0 (Optional by project support)

I/O



Serial port

4 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control; COM 1,2 support 5V/12V power supply (by jumper)

4 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control; COM 1,2 support 5V/12V power supply (by jumper)

4 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control; COM 1,2 support 5V/12V power supply (by jumper)

4 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control; COM 1,2 support 5V/12V power supply (by jumper)

USB

6 x USB 3.0 ports; 2 x USB 2.0 ports

6 x USB 3.0 ports; 2 x USB 2.0 ports

6 x USB 3.0 ports; 2 x USB 2.0 ports

6 x USB 3.0 ports; 2 x USB 2.0 ports

Digital I/O

16 bit DIO

16 bit DIO

16 bit DIO

16 bit DIO

PS/2

1 port support by option cable and bracket

1 port support by option cable and bracket

1 port support by option cable and bracket

1 port support by option cable and bracket

Parallel port

D-sub 25pin connector (Optional)

D-sub 25pin connector (Optional)

D-sub 25pin connector (Optional)

D-sub 25pin connector (Optional)

Expansion



Mini PCIe

2 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder)

2 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder)

2 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder)

2 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder)

M.2

1 x E key for WiFi

1 x E key for WiFi

1 x E key for WiFi

1 x E key for WiFi

iDoor Module

1 set (Optional)

1 set (Optional)

1 set (Optional)

1 set (Optional)

Slots



AMO-3501E 3 Slot Riser Card for 2x PCI+1xPCIx4

AMO-3501E 3 Slot Riser Card for 2x PCI+1xPCIx4

PCI

2 Slots PCI (default)

2 Slots PCI (default)



PCI Express x 4

2 Slots PCIe x 4 (Optional)

2 Slots PCIe x 4 (Optional)



Storage



HDD

Two removable 2.5" SATA HDD Bays with maximum device height 15mm, SATA III, Gen 3, Support SATA RAID 0, 1

Two removable 2.5" SATA HDD Bays with maximum device height 15mm, SATA III, Gen 3, Support SATA RAID 0, 1

1 x 2.5" SATAIII HDD Bay with Max Height 15mm, (1 internal 2.5" HDD Bay with one optional removable HDD Bay)

1 x 2.5" SATAIII HDD Bay with Max Height 15mm, (1 internal 2.5" HDD Bay with one optional removable HDD Bay)

mSATA

1x mSATA socket (Share 1 Mini PCIe)

1x mSATA socket (Share 1 Mini PCIe)

1x mSATA socket (Share 1 Mini PCIe)

1x mSATA socket (Share 1 Mini PCIe)

Software Support



Microsoft Windows

Windows 10, Windows 8.1, Windows 7

Windows 10, Windows 8.1, Windows 7

Windows 10, Windows 8.1, Windows 7

Windows 10, Windows 8.1, Windows 7

Linux

Support by project

Support by project

Support by project

Support by project

Power



Power Type

AT/ ATX

AT / ATX

AT/ATX

AT/ATX

Input Voltage

9 ~ 36 VDC

9 ~ 36 VDC

12 VDC (9 ~ 36 VDC as option)

12 VDC (9 ~ 36 VDC as option)

Power Adaptor

AC to DC, 150W (Optional)

AC to DC, 150W (Optional)

AC to DC, 150W (Optional)

AC to DC, 150W (Optional)

Consumption

Typical 11.4W, Max. 46.5W

Typical 11.4W, Max. 68.4W

Typical 11.4W, Max. 46.5W

Typical 11.4W, Max. 68.4W

Mechanical



Construction

Aluminum housing

Aluminum housing

Aluminum housing

Aluminum housing

Mounting

Desk/wall-mounting

Desk/wall-mounting

Desk/wall-mounting

Desk/wall-mounting

Dimensions

220 x 101 x 233 mm (8.66" x 3.98" x 9.17")

220 x 101 x 233 mm (8.66" x 3.98" x 9.17")

220 x 101 x 233 mm (8.66" x 3.98" x 9.17")

220 x 101 x 233 mm (8.66" x 3.98" x 9.17")

Weight

4.4 kg (9.7 lb)

4.4 kg (9.7 lb)

4.8 kg (10.58 lb)

4.8 kg (10.58 lb)

Environment



Operational Temperature

With extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow, with HDD: 0 ~ 40° C with 0.7m/s air flow

With extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow, with HDD: 0 ~ 40° C with 0.7m/s air flow

With extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow, with HDD: 0 ~ 40° C with 0.7m/s air flow

With extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow, with HDD: 0 ~ 40° C with 0.7m/s air flow

Storage Temperature

-40 ~ 85° C

-40 ~ 85° C

-40 ~ 85° C

-40 ~ 85° C

Relative Humidity

95% @ 40° C (non-condensing)

95% @ 40° C (non-condensing)

95% @ 40° C (non-condensing)

95% @ 40° C (non-condensing)

Vibration during Operation

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock During Operation

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

Certification



EMC

CE/FCC Class A, CCC, BSMI

CE/FCC Class A, CCC, BSMI

CE/FCC Class B, CCC, BSMI

CE/FCC Class B, CCC, BSMI

Safety Certifications

LVD, CCC, BSMI

LVD, CCC, BSMI

CB, UL, CCC, BSMI

CB, UL, CCC, BSMI
