| Model |

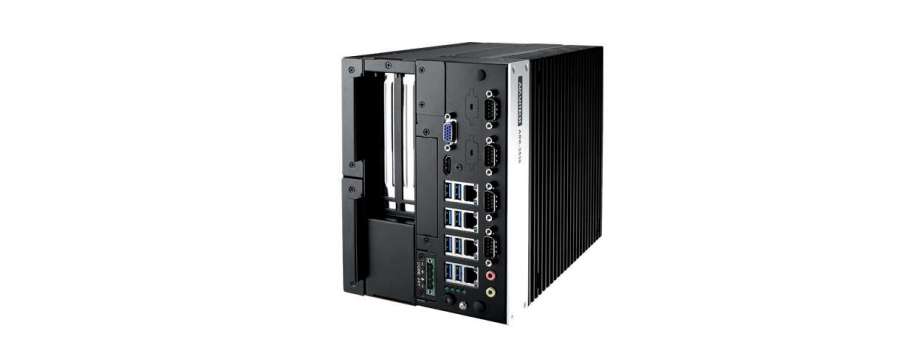

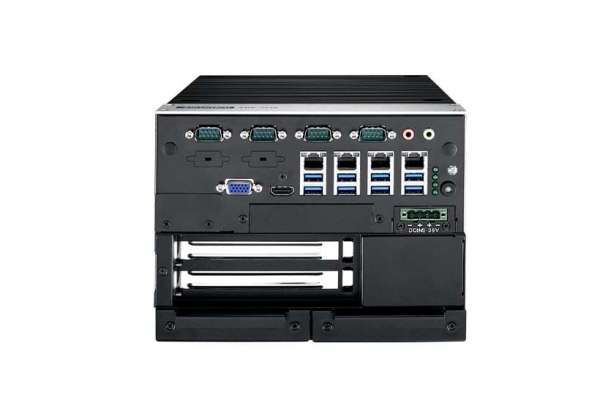

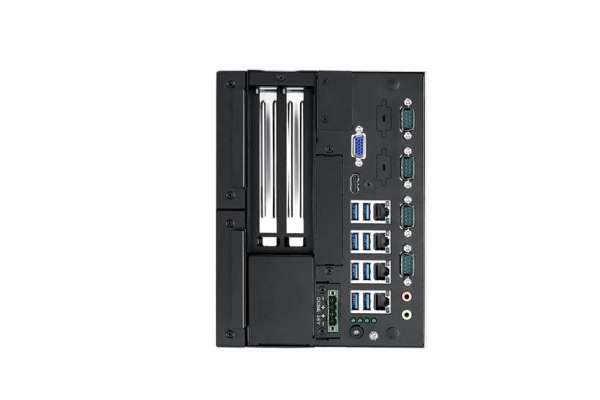

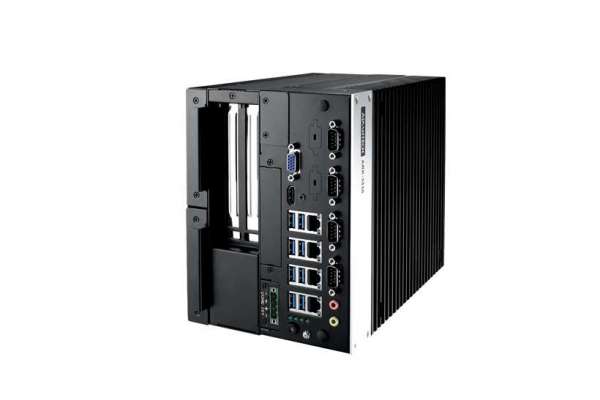

ARK-3530F-00A1
|
|
Процесор
|
|
|
CPU
|
E3-1235L V5 / i7-7700/ i7-6700 / i5-7500 / i3-7101E
|
|
Частота
|
2.0GHz / 3.6GHz /3.4GHz / 3.4GHz / 3.9GHz
|
|
L3 Cache
|
8MB / 8MB / 8MB / 6MB / 3MB
|
|
TDP
|
25W / 65W / 65W / 65W / 54W
|
|
Чипсет
|
C236
|
|
BIOS
|
AMI EFI 127Mbit
|
|
Пам'ять
|
|
|
Технологія
|
DDR4 2133 MHz
|
|
Max. Capacity
|
32 GB
|
|
Socket
|
2 x 260-pin SO-DIMM
|
|
Графіка
|
|
|
Chipset
|
Intel® HD Graphics 630
|
|
Graphic Engine
|
Direct x 12, OpenGL 4.4 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
|
|
VGA
|
1920x1200@ 60Hz
|
|
HDMI
|
1 HDMI port, HDMI 2.0 for HD video playback, 3840x2160@30Hz
|
|
Triple Display
|
VGA+HDMI + 3rd display module
|
| Optional 3rd Display module |
DVI-D / DP / HDMI Display Port |
|
Ethernet
|
|
|
LAN1
|
10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
|
|
LAN2, 3 ,4
|
10/100/1000 Mbps Intel I210 GbE, support Wake On Lan
|
|
Audio
|
|
|
Interface
|
Realtek ALC888S, High Definition Audio, Line-out, Mic-in
|
|
Others
|
|
|
Watchdog timer
|
255 levels timer interval, setup by software
|
|
TPM
|
TPM 2.0 (Optional by project support)
|
|
I/O
|
|
|
Serial port
|
4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper)
|
|
USB
|
8 x USB 3.0 ports
|
|
Optional I/O
|
16bit DIO or 2 x RS-232 ports
|
|
PS/2
|
1 port support by option cable and bracket
|
|
Expansion
|
|
|
Mini PCIe
|
2 x Full-size Mini PCIe (2 x support mSATA, 1 x support SIM holder)
|
|
M.2
|
1 x E key for WiFi
|
|
iDoor Module
|
1 set (Optional)
|
| Add-on Card Slot |
Maximum card size 110mm (H) x 180mm (L) Suggest maximum power consumption 10W for each slot 2 Slots PCI (Default) 2 Slots PCIex8 (Option AMO-R026) 1 Slots PCIex16 (Support by project) |
|
Storage
|
|
|
HDD
|
2 x 2.5" SATAIII HDD Bay with Max Height 15mm (Support Up to 4 x 2.5" SATAIII HDD Bay by Optional AMK-A0028E)
|
|
mSATA
|
2x mSATA socket (Share 1 Mini PCIe)
|
|
Software Support
|
|
|
Microsoft Windows
|
Windows 10 (Windows 7 for 6th Gen CPU only)
|
|
Linux
|
Support by project
|
|
Power
|
|
|
Power Type
|
AT/ ATX
|
|
Input Voltage
|
9 ~ 36 VDC
|
|
Power Adaptor
|
AC to DC, 150W (Optional)
|
|
Consumption
|
Typical 25.68W, Max. 88.92W
|
|
Mechanical
|
|
|
Construction
|
Aluminum housing
|
|
Mounting
|
Desk-mounting
|
|
Dimensions
|
156.5 x 205 x 230 mm (6.16" x 8.07" x 9.06")
|
|
Weight
|
5.87Kg
|
|
Environment
|
|
|
Operational Temperature
|
25W/35W/65W(only 6th Gen) Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow Under 73W processor with HDD: 0 ~ 40° C with 0.7m/s air flow
|
|
Storage Temperature
|
-40 ~ 85° C
|
|
Relative Humidity
|
95% @ 40° C (non-condensing)
|
|
Vibration during Operation
|
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
|
|
Shock During Operation
|
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
|
|
Certification
|
|
|
EMC
|
CE/FCC Class B, CCC, BSMI
|
|
Safety Certifications
|
CB, UL, CCC, BSMI
|
