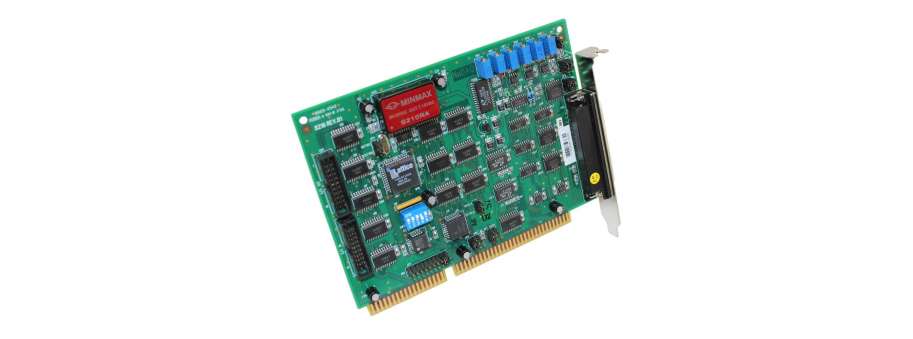

ACL-8216 Multi-Function DAQ Cards

ADLINK ACL-8216 is a 16-CH, 16-bit, 100 kS/s multi-function DAQ Card

Signal input/output >> Input Output boards

 Price and avalability

Manufacturer: ADLINK Technology, Inc.

The ACL-8216 device features flexible configurations on analog inputs. It provides analog inputs with 4 programmable input ranges for bipolar inputs.

  • 16-bit A/D resolution
  • Up to 100 kS/s sampling rate
  • 16-CH single-ended or 8-CH differential inputs
  • Bipolar analog input ranges
  • Programmable gains of x1, x2, x4, x8
  • Automatic analog input scanning
  • DMA for analog inputs
  • 2-CH 12-bit multiplying analog outputs

The A/D on the ACL-8216 device features a sampling rate of up to 100 kS/s with resolution at 16 bits. The device supports automatic analog input scanning, and offers a differential mode for 8-CH analog inputs and maximum noise elimination, as well as single-ended modes for 16-CH analog inputs. The ACL-8216 also features 2-CH 12-bit analog outputs, 1-CH 16-bit general purpose timer/counter, 16-CH TTL digital and 16-CH TTL digital outputs. ADLINK ACL-8216 delivers cost-effective and reliable data acquisition capabilities and is ideal for a broad variety of applications.

Price and avalability

Partnumber Description Price VAT incl Avalability
ACL-8216 Багатофункціональна плата аналогового вводу / виводу АЦП 16 біт, 16 (8 дифф.) Каналів, ЦАП 12 біт, 2 канали, 32 лінії дискретного введення / виведення, 3-х канальний таймер.  17 340,3 Доступно
