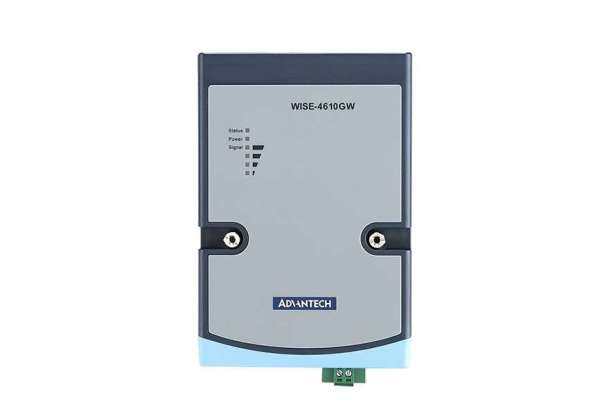

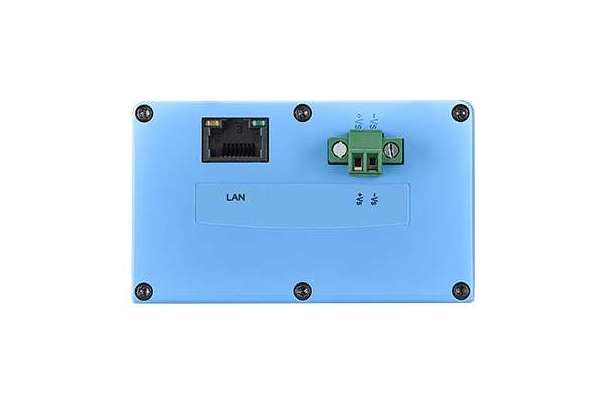

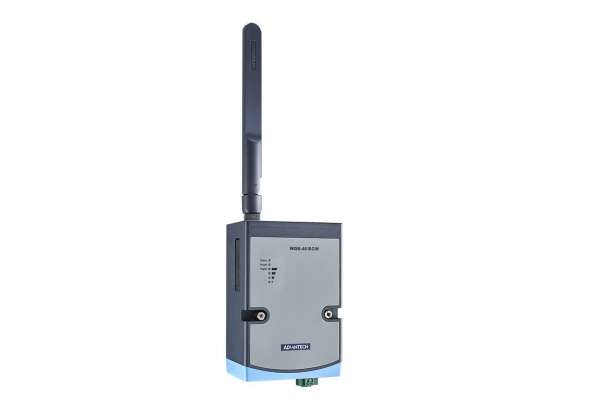

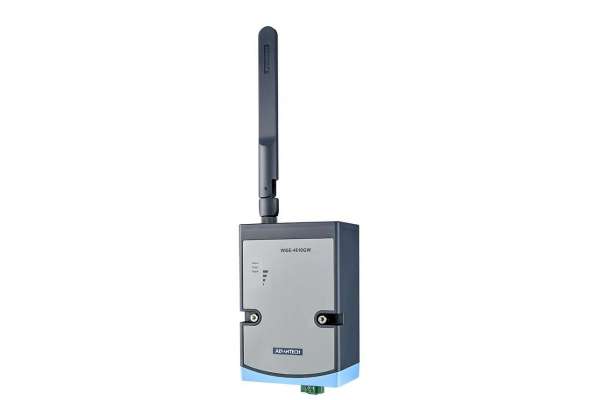

Industrial Wireless I/O Module WISE-4610

Industrial Outdoor LoRa/LoRaWAN Wireless I/O Module WISE-4610

Signal input/output >> IIoT equipment

 Price and avalability

Manufacturer: Advantech Co., Ltd.

WISE-4610 features a wireless sensor node based on LoRa network technologies targeting outdoor applications. Not only does it provide wireless communication coverage of 5 kilometers, it also has a long battery life due to the low power consumption of the LoRa network.

  • Private LoRa and LoRaWAN selectable
  • Longer communication range
  • Better penetration through concrete and steel
  • Less interference than 2.4GHz spectrum
  • Application-ready I/O combination with IP65 enclosure
  • Powered by solar rechargeable battery or 10~50VDC input
  • GPS/Galileo/BeiDou/GLONASS suppor
  • Other region can be supported upon request

Price and avalability

Partnumber Description Price VAT incl Avalability
WISE-4610-EA Бездротовий модуль введення/виведення Advantech WISE-4610, LoRa Wireless Sensor Module EU 868 MHz  7 266,1
WISE-S614-A Модуль вводу-виводу Advantech WISE-4600 4AI/4DI I/O Module  5 844,0
WISE-S672-A Модуль введення-виведення для Advantech WISE-46xx, 6DI/1RS-485/1RS-485 or RS-232  3 686,0 Доступно

Additional information

Part Number WISE-4610-EA
Wireless Communication
Frequency Band EU 863-870 (MHz); US 902-928 (MHz); AU (JP) 915-928 (MHz)
Spreading Factor 7~12
Outdoor Range 5km with line of sight (with 2 dBi Antenna)
Transmit Power Up to +18dBm
Receiver Sensitivity Up to -136dBm at SF = 12 / 125KHz
Data Rate 50 kbps at FSK mode EU868;21.9 kbps at SF7 mode US915;5.47 kbps at SF7 mode JP923
Topology Star
Function End Node
GPS
GNSS Systems GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS signals
Max. Update Rate Single GNSS: up to 18 Hz; Concurrent GNSS: up to 10 Hz
Accuracy Position: 2.5 m CEP (50% confidence);With SBAS: 2.0 m CEP (50% confidence)
Acquisition Cold starts: 57 s; Aided starts: 7 s
General
Power Input Built-in 4000mA Lithium rechargeable battery pack2
Battery Life 6 months (1 hour data update and 1 day GPS update)
Configuration Interface Micro-B USB
Connector Power: M12 4-pin code-A male x 1; I/O: M12 8-pin code-D female x 2;
LED Indicators Status, Error, Tx, Rx, Battery/Signal Level
Mounting DIN 35 rail, wall, pole, and stack
Dimensions (W x H x D) 82 x 122 x 49 mm (without antenna)
Environment
Temperature (Operating) 0 ~ 60°C
Humidity (Operating) 0 ~ 90% RH non-condensing
Wireless Interface
Antenna Type Internal
