15" Panel PC Advantech PC-6151C

15" Configurable Intel® 6th Gen. Core™ i Panel PC Chassis Advantech PC-6151С for selectable Mini-ITX Motherboard

Industrial Computer >> Industrial Panel PC and HMI

Manufacturer: Advantech Co., Ltd.

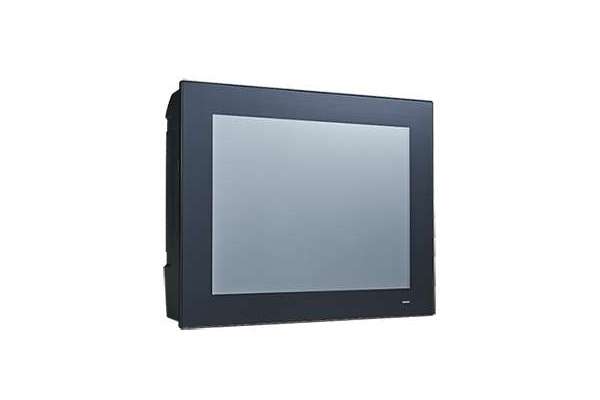

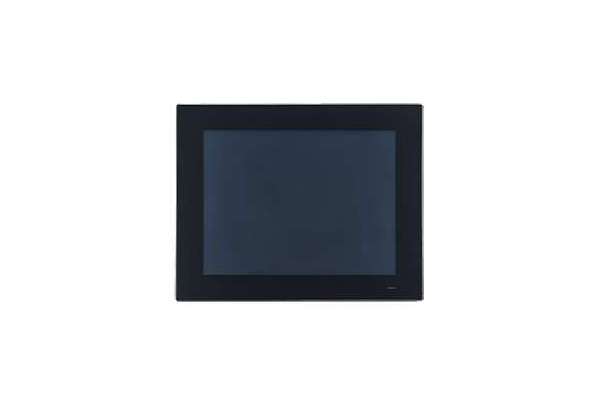

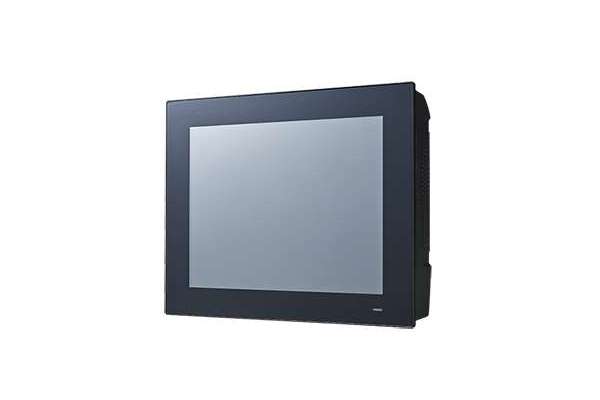

The PPC-6151C, a panel PC chassis with 15" TFT LED screen, is specifically designed for Mini-ITX motherboards, which supports a diverse range of Mini-iTX motherboards in fulfilling customer requirements for varied functionalities and price concern. PPC-6151C is a true flat bezel which meets market trends demanding for a stylish look and provides additional backup port and expansion slot in order to accommodate customers’ various application needs.

  • 15” true-flat PPC with Resistive touch
  • Supports certified mini-ITX motherboard up to 45W TDP processor
  • Support PCI or PCIe expansion slot
  • Front LED indicators for power status
  • Front panel is IP65 compliant
  • Optional VESA mount by request

Additional information

  PPC-6151C-RMAE PPC-6151C-RTAE

Chassis feature

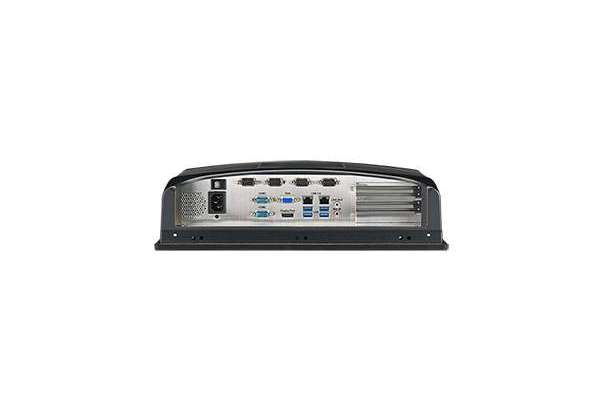

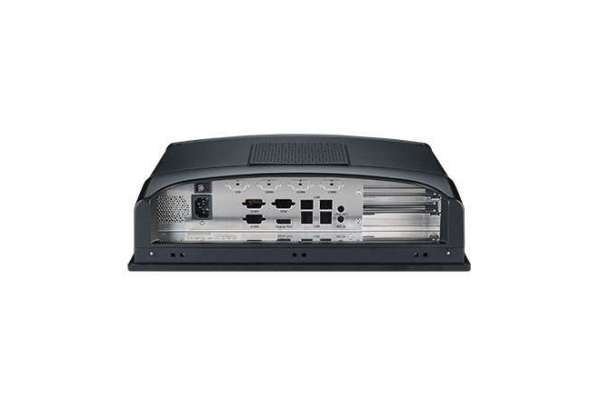

I/O ports

1 x AC inlet;1 x Power Switch;1 x DP port (input, for connecting M/B and LVDS panel);1 x USB 2.0 (input, for connecting M/B and touch controller);Reserved opening:Based on M/B's specific

1 x AC inlet;1 x Power Switch;Reserved opening:Based on M/B PPC-MB-8260AE's specific

Storage

2 x 2.5" SATA HDD bay

1 x 2.5" SATA HDD bay

Expansion

either 1 x PCIex 4,or 1 x PCI (in the accessory box)

either 1 x PCIex 4,or 2 x PCI (in the accessory box)

Speaker

2 X 1W

2 X 1W

Fan

2 x 12V 60 x 60 x 15mm

2 x 12V 60 x 60 x 15mm

Physical Characteristics



Dimensions

391.4 x 312.5 x 103.6 mm (15.4" x 12.3 x 4.08")

391.4 x 312.5 x 103.6 mm (15.4" x 12.3 x 4.08")

Weight

5.03 kg

5.03 kg

OS Support


OS Support

Based in M/B spec

Based in M/B spec

Power Supply



Input Voltage

100-240VAC, 250W

100-240VAC, 250W

LCD Display



Display Type

15" TFT LED Panel

15" TFT LED Panel

Max. Resolution

1024 x 768

1024 x 768

Viewing Angle (H/V°)

80 (left), 80 (right), 70 (up), 70 (down)

80 (left), 80 (right), 70 (up), 70 (down)

Luminance (cd/m2)

400

400

Contrast Ratio

700:1

700:1

Backlight Life

50,000 hrs min.

50,000 hrs min.

Touch Screen


 Type

Analog Resistive 5-wire/Projected capacitive type (optional)

Analog Resistive 5-wire/Projected capacitive type (optional)

Light transmission

80+/-5%

80+/-5%

Controller

USB interface

USB interface

Durability (Touches)

35 million

35 million

Environment



Operating Temperature

0 ~ 50°C (32 ~ 122°F)

0 ~ 50°C (32 ~ 122°F)

Storage Temperature

-40 ~ 60°C (-40~140°F)

-40 ~ 60°C (-40~140°F)

Relative Humidity (Non-condensing)

10 ~ 95% @ 40°C (non-condensing)

10 ~ 95% @ 40°C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27

Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27

Vibration

Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64

Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64

EMC

CE, FCC Class A

CE, BSMI, FCC Class A

Safety

CB, CCC, BSMI, UL

CB, CCC, BSMI, UL

Front Panel Protection

IP65 Compliant

IP65 Compliant
