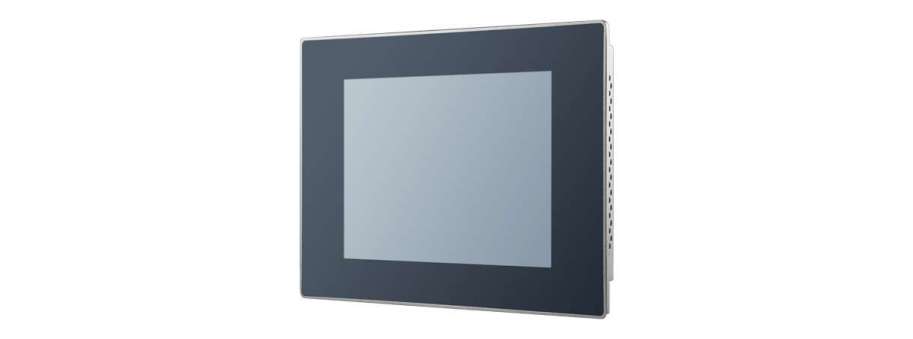

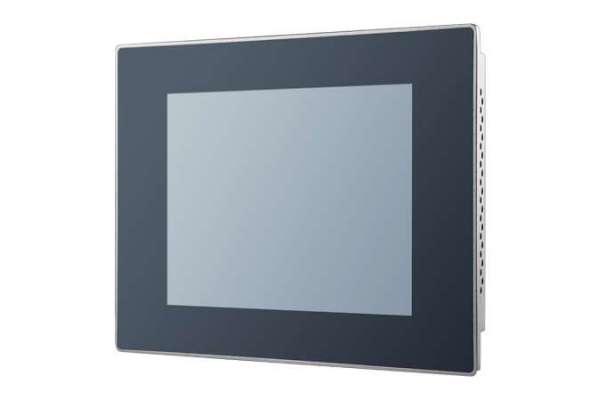

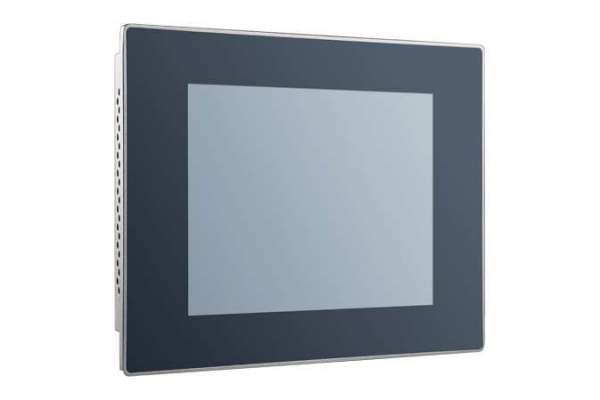

6.5" TrueFlat Panel PC PPC-3060S with Intel Celeron

6.5" VGA TrueFlat IP65 Panel PC Advantech PPC-3060S with fanless low power Intel Celeron N2807 Processor

Industrial Computer >> Industrial Panel PC and HMI

 Price and avalability

Manufacturer: Advantech Co., Ltd.

  • Industrial 6.5" TFT VGA LED panel with 30k (min.) lifetime backlight
  • Durable 5-wire Resistive Touch Screen
  • Embedded Intel processor, dual core Celeron® N2807 1.58GHz onboard
  • System memory up to 8 GB DDR3L SDRAM
  • Compact Fanless Design with solid AI Alloy enclosure
  • True-flat with IP65 certified front panel protection
  • E-Eye Monitoring and Protection
  • Supports Full-size Mini PCIe Expansion
  • Supports USB 3.0
  • Supports Windows Embedded and Android

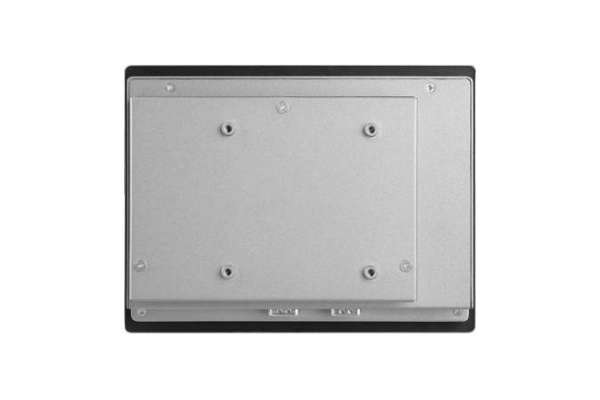

  • Supports VESA 75

The PPC-3060S is a high value ultraslim Panel PC with a 6.5" TFT VGA LCD, low power Intel® Celeron® N2807 1.58GHz processor. It provides high computing performance in a compact fanless embedded system. With a highly durable design,the PPC-3060S is equipped with an IP65 protected front panel and true-flat 5-wire resistive touch screen. It supports two serial ports, three USB ports, and two GbE LAN to satisfy various industrial applications.

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-3060S/N2807/4G/32G/W10ELTSB/(PROMO) Панельный компьютер Intel Celeron N2807 fanless 6.5" Panel PC / 4Gb/ 32G mSATA SSD / Windows 10 Enterprise LTSB  29 247,6
PPC-3060S-N80AE Панельный компьютер Intel Celeron N2807 fanless 6.5" Panel PC  24 313,9 Доступно
96PSA-A90W19OT-1 Блок живлення 19V DC power 100-240V 90W 1 (PHOENIX, 170203183C или PC-186-ML12)  917,5
PPC-WLAN-A1E Модуль беспроводной связи WiFi Module with AntennКабель/набор соединительных проводов 28cm for PPC  1 968,2
PPC-ARM-A03 Монтажный набор PPC ARM VESA Standard (A-CLEVER)  6 054,5
PPC-174T-WL-MTE Монтажный набор Wall mount kit A800B for PPC-174T  2 620,4
2070014419 Образ системи та ліцензія Image WS7P 64-bit PPC-3xx0S Multi V4.14  5 167,8
2070014420 Програмне забезпечення/образ системи Image WEC7 PPC-3060S MUI V4.01  2 015,4
2070014862 Образ системи та ліцензія Image WIN10ENT LTSB 64-bit PPC-3xx0S Multi V6.01  3 049,0

Additional information

Power Supply



Power Consumption

11W (Burn-in test 7.0 in Windows 7 32 bit)

Input Voltage

12-24 VDC

LCD Display



Viewing Angle (H/V°)

80 (left), 80 (right), 70 (up), 70 (down)

Luminance (cd/m2)

500

Contrast Ratio

700:01:00

Display Type

6.5" TFT LCD (LED Backlight)

Backlight Life

30,000 hrs (Min.)

Environment



Relative Humidity

10 ~ 95% @ 40°C non-condensing

EMC

CE, FCC Class B, BSMI

Safety

CB, CCC, BSMI, UL

Operating Temperature

0 ~ 50°C (32 ~ 122°F) with SSD, 0 ~ 40°C (32 ~ 104°F) with HDD

Storage Temperature

-40 ~ 60°C (-40~140°F)

Front Panel Protection

IP65 Compliant

Vibration

Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64

Shock

Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27

Processor System



Memory

1 x SO-DIMM, DDR3L 1333, Max 4 GB

Frequency

1.83 GHz

I/O Ports

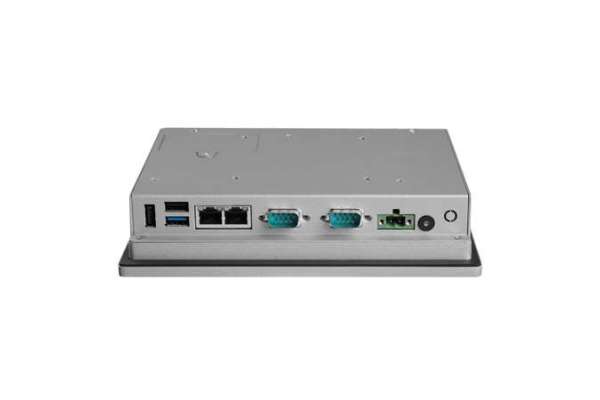

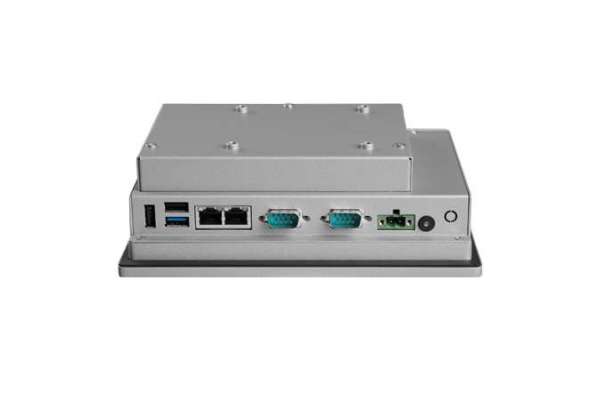

2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS), 2 x USB 2.0; 1 x USB 3.0

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel I211)

Storage 1

1 x 2.5" SATA bay, 1 x mSATA bay

Watchdog Timer

255 timer levels; setup by software

CPU

Intel® Celeron® N2930, Quad core

Expansion Slots

1 x Full size Mini PCIe slot

Touchscreen



Light Transmission

80±5% at 550 nm wavelength

Controller

RS-232 interface

Durability (Touches)

Greater than 35 million touches in one location without failure

Touch Type

Elo Resistive 5 wires

OS Support



OS Support

Microsoft® Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/WES7/WEC 7/Linux/Android 4.4

Physical Characteristics



Dimensions

197.6 x 150.6 x 41 mm (7.8" x 5.9" x 1.6")

Weight

1.53 Kg (3.30 lb)
