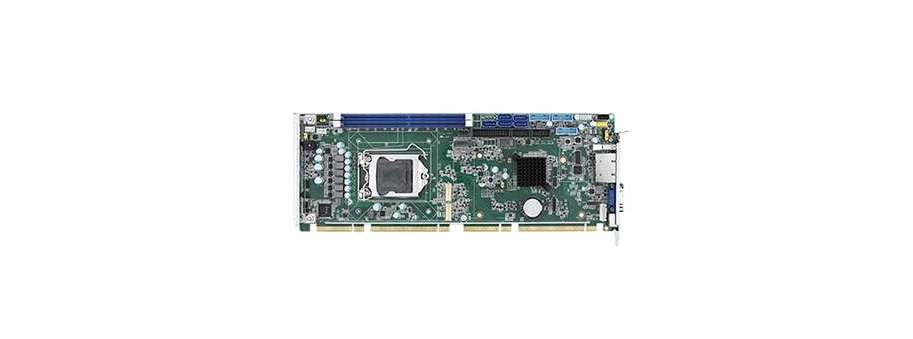

System Host Board PCE-5131

LGA1151 8th/9th Generation Intel® Core™ i7/i5/i3/Pentium/Celeron System Host Board PCE-5131 with DDR4, SATA 3.0, USB 3.1, M.2

System Components >> PICMG 1.3 Full-Size Single Board Computers

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Supports Intel processors 8th and 9th generation Intel Core™ i7/i5/i3 LGA1151 with Q370 chipset

  • Intel® Core™ i7/i5/i3 LGA1151 processor with Q370 chipset
  • Up to 64 GB of dual-channel (non-ECC) DDR4 2400/2666 MHz
  • PCIe 3.0, M.2, USB 3.0, SATA 3.0, and SW Raid 0, 1, 5, 10
  • Supports out-of-band remote management with AMT
  • Supports Advantech’s LPC modules, SUSIAccess, and embedded softwareAPIsNote 1: Intel
  • Note 1: Intel 8th generation processors only support Windows 10 (64-bit).

Price and avalability

Partnumber Description Price VAT incl Avalability
PCE-5131G2-00A1 Одноплатний промисловий комп'ютер Advantech PCE-5131G2, LGA1151 8th/9th Generation Intel® Core™ i7/i5/i3/Pentium/Celeron System Host Board with DDR4, SATA 3.0, USB 3.1, M.2, Dual GbE, and Triple Displays  20 584,8

Additional information

Part Number

PCE-5131G2-00A1

Form Factor


Form Factor

PICMG1.3 Full-Size SBC

Processor System



CPU

Intel 8th / 9th Core i3/i5/i7 (LGA1151)

BIOS

AMI SPI 256 Mbit

Chipset

Intel Q370

Integrated Graphics

Yes

Memory



Technology

DDR4 2400/2666 MHz

Capacity

Up to 64 GB

Socket

2 x 288-pin DDR4

Display



Controller

Intel HD graphics Integrated

Multiple Display

Triple

Display Interface

VGA: Up to 1920 x 1200
DVI: Up to 1920 x 1200 DP: 1920 x 1080

Ethernet



Controller

LAN1: Intel I219LM, LAN2: Intel I210AT

Speed

10/100/1000 Mbps

Connector

2 x RJ45

WatchDog Timer



Output

System Reset

Interval

Programmable 1 ~ 255 sec

I/O



COM Port

2 x RS-232

GPIO

8-bit

LPT

1

PS/2 Keyboard/Mouse

1

SATA

5 x SATA III (Raid 0, 1, 5, 10)

System Fan

1

USB2.0

7

USB3.0

6

Rear I/O Interface



USB3.1 Gen 2

1

PS/2

1

Ethernet

2

VGA

1

Power Requirement



Voltage

12V / 5V / 3.3V

Current

4.3A / 2.15A / 0.69A

Environment



Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Non-Operating Vibration

2Grms

Physical Characteristics



Dimensions (LxW)

338 x 122 mm (13.3" x 4.8")

Weight

0.5 kg

Certification



EMC

CE, FCC

Management Solution



Out of band remote management

AMT
