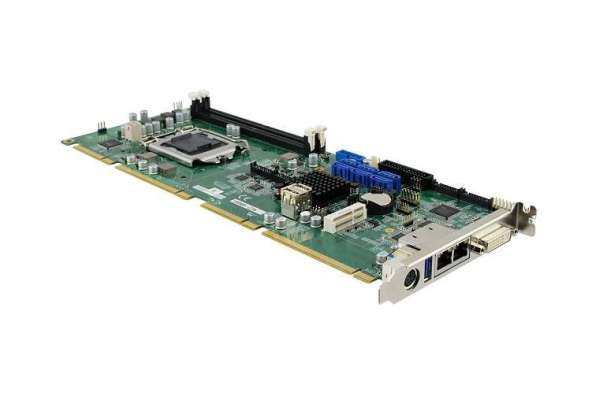

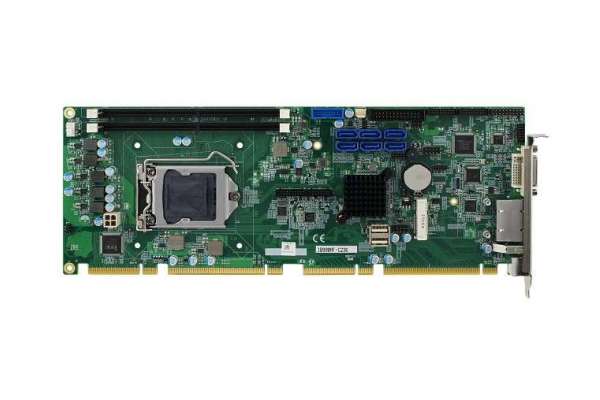

Full-size PICMG 1.3 SBC IB990

PICMG 1.3 Full-Sized CPU Card iBase IB990 with Intel® C236 PCH and support 6th Gen. Intel® Xeon® E3 / Core™ i7/i5/i3/Pentium® / Celeron®

System Components >> PICMG 1.3 Full-Size Single Board Computers

Manufacturer: IBASE Technology Inc.

  • 6th Generation Intel® Xeon® E3/Core™ i7/i5/i3/ Pentium® QC/DC Processor, up to 4.0 GHz
  • 2x DDR4- 2133 DIMM, Max. 32GB, ECC compatible
  • Intel® Processor integrated Graphics device, supports DVI-I, CRT, DVI-D
  • 2x Intel® PCI-E Gigabit LAN
  • 3x USB3.0, 2x USB2.0, 4x COM, 6x SATA III
  • 1x Mini PCI-E slot
  • Watchdog timer, Digital I/O, iAMT(11.0)
CPU LGA1151 for 6th Generation Intel® DT Xeon® E3 & Core™ i7/i5/i3/Pentium®/ Celeron® QC/DC processors
System Memory 2 x DDR4-2133 DIMM, Max 32GB (ECC compatible)
System Chipset Intel® C236/ Q170 PCH
BIOS AMI BIOS
Watchdog Timer 256 levels
SSD N/A
H/W Monitor Yes
Expansion Slots 1x Mini PCI-E
VGA Controller 6th Generation Intel® Core™ DT Xeon® E3 & Core™ i7/i5/i3/Pentium®/ Celeron® integrated graphics
VGA Memory Max. shared memory – 1024MB
Display Interface Support DVI-I, VGA, DVI-D
LAN Controller Intel® I219LM Gigabit LAN PHY
Intel® I211AT PCI-E Gigabit LAN( as 2nd LAN)

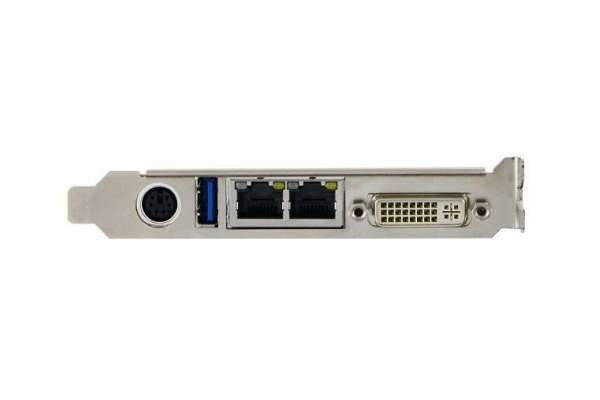

LAN Connector 2x RJ-45 on board
I/O Chipset Fintek F81846AD-I
1x RS-232/422/485(Jumperless selection)
3x RS232, 6x SATA III, 1x LPT
USB 3 ports x USB3.0 on board
2 ports x USB2.0 via pin header
1 port x USB2.0 via Mini PCI-E
Audio Intel® C236 PCH built-in HD audio controller + Realtek ALC662 w/ 5.1 channel
Others Digital I/O (4-in/4-out), RAID, iAMT (11.0)
Dimensions 338mm x 126mm (13.31“ x 4.96“)
Max. Power Requirement TBD
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)
Storage Temperature -20°C ~ 80°C (-4°F ~ 140°F)
Relative Humidity 90% (non-condensing @60°C)
