Processor-based platform PCE-5129

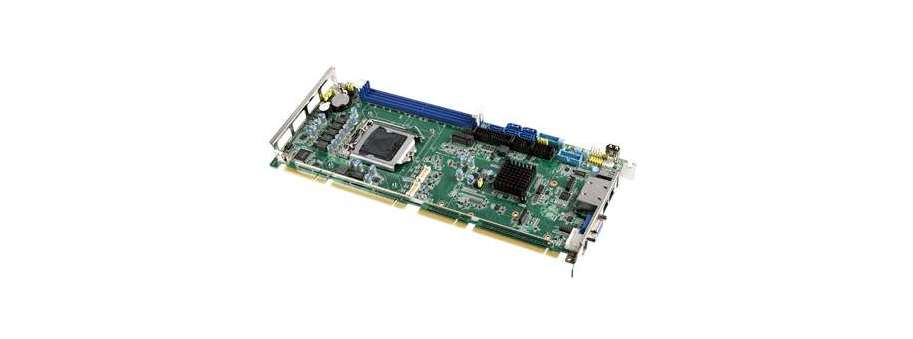

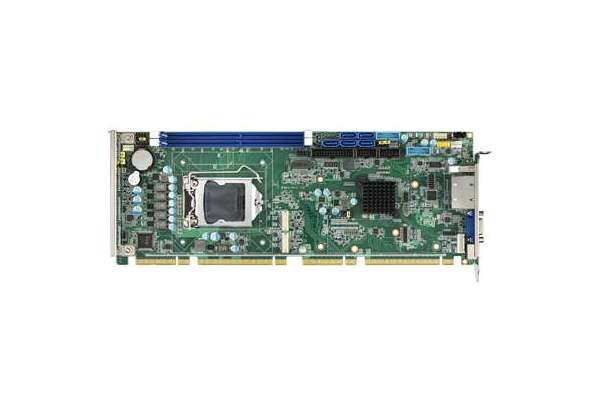

6th Generation Intel® Core™ processor-based platform PCE-5129

System Components >> PICMG 1.3 Full-Size Single Board Computers

 Price and avalability

Manufacturer: Advantech Co., Ltd.

  • Supports Intel Core™ i7/i5/i3 LGA1151 processors with Q170
  • Dual Channel (ECC/Non-ECC) DDR4 2133/1600 up to 32 GB
  • Supports PCIE 3.0, M.2, USB 3.0, SATA3.0, SW Raid 0, 1, 5, 10
  • Supports CRT and 2 x DVI-D/DP (cable optional) display
  • Supports out-of-band remote management with AMT10
  • Supports Advantech LPC modules
  • Supports SUSIAccess and Embedded Software APIs

Price and avalability

Partnumber Description Price VAT incl Avalability
PCE-5129G2-00A1E Одноплатний промисловий комп'ютер Advantech PCE-5129G2, PICMG 1.3, LGA1151, Q170, FSHB, DDR4/CORE I7/VGA/USB3  18 110,4

Additional information

Part Number

 PCE-5129G2-00A1E

Form Factor


Form Factor

PICMG1.3 Full-Size SBC

Processor System



CPU

Intel 6th -7th gen. Core i3/i5/i7 (LGA1151)

Memory



Technology

DDR4 1866/2133 MHz

Capacity

Up to 32 GB

Socket

2 x 288-pin DDR4

Display



Controller

Intel HD graphics Integrated

Multiple Display

Triple

Display Interface

VGA: Up to 1920 x 1200
DVI: Up to 1920 x 1200 DP: 1920 x 1080

Ethernet



Controller

LAN1: Intel I219LM, LAN2: Intel I211AT

Speed

10/100/1000 Mbps

Connector

2 x RJ45

WatchDog Timer



Output

System Reset

Interval

Programmable 1 ~ 255 sec

I/O



COM Port

2 x RS-232

GPIO

8-bit

LPT

 1

PS/2 Keyboard/Mouse

 1

SATA

5 x SATAIII (RAID 0, 1, 5, 10)

System Fan

 1

USB2.0

 7

USB3.0

 2

Rear I/O Interface



USB3.0

 1

PS/2

2 (1 x Keyboard, 1 x Mouse)

Ethernet

 2

VGA

 1

Power Requirement



Voltage

+12 V/+5 V/+3.3 V/+5 VSB/

Current

2.64 A/1.23 A/0.19 A/0.09 A/

Environment



Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Non-Operating Vibration

2 Grms

Physical Characteristics



Dimensions (LxW)

338 x 122 mm (13.3" x 4.8")

Weight

0.5 kg

Certification



EMC

CE, FCC

Management Solution



Out of band remote management

AMT
