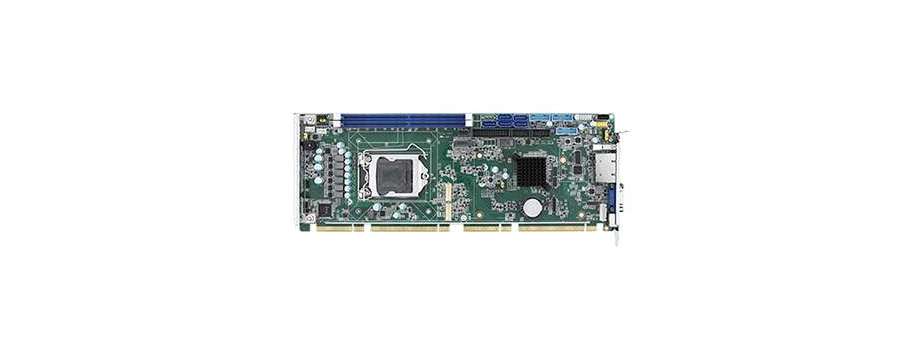

Single Board Computer PCE-7131

LGA1151 8/9 Generation Intel® Xeon® E/Core™ i7/i5/i3/Pentium® LGA1151 SystemHost Board PCE-7131 with DDR4, SATA 3.0, USB 3.1,M.2

System Components >> PICMG 1.3 Full-Size Single Board Computers

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Supports Intel® Xeon® E, 8th and 9th generation Intel Core™ i7/i5/i3/Pentium® LGA1151 with C246 chipset

  • Intel® Xeon® E Family/Core™ i7/i5/i3 LGA1151 processor with C246 chipset
  • Up to 64 GB of dual-channel (non-ECC) DDR4 2400/2666 MHz
  • PCIe 3.0, M.2, USB 3.1, SATA 3.0, and SW Raid 0, 1, 5, 10
  • Supports VGA and 2 x DVI-D/DP display (with optional cable)
  • Supports out-of-band remote management with AMT
  • Supports Advantech’s LPC modules, SUSIAccess, and embedded softwareAPIs
  • Note: Intel 8th generation processors only support Windows 10 (64-bit)

Price and avalability

Partnumber Description Price VAT incl Avalability
PCE-7131G2-00A1 Одноплатний промисловий комп'ютер Advantech PCE-7131 LGA1151 C246 FSHB DDR4/XeonE3/VGA/USB3/2GbE/M.2  20 784,3

Additional information

Part Number

PCE-7131G2-00A1

Form Factor


Form Factor

PICMG1.3 Full-Size SBC

Processor System

Intel Xeon E3/ Intel Core™ i7/i5/i3

BIOS

AMI SPI 256 Mbit

Chipset

Intel C246

Integrated Graphics

Yes

Memory



Technology

DDR4 2400/2666 MHz

Capacity

Up to 64 GB

ECC Support

Yes

Socket

2 x 288-pin DDR4

Display



Controller

Intel HD graphics Integrated

Multiple Display

Triple

Ethernet



Controller

LAN1: Intel i219LM; LAN2: Intel i210, support Wake-on-LAN

Speed

10/100/1000 Mbps

Connector

2 x RJ45

WatchDog Timer



Output

System Reset

Interval

Programmable 1 ~255 sec

I/O



COM Port

2 x RS-232

GPIO

8-bit

LPT

1

PS/2 Keyboard/Mouse

1

SATA

5 x SATAIII (RAID 0, 1, 5, 10)

System Fan

1

USB2.0

7

USB3.0

6

Rear I/O Interface



USB3.0

1

PS/2

1

Ethernet

2

VGA

1

Power Requirement



Voltage

+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V

Environment



Operating-Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Non-Operating Vibration

2 Grms

Physical Characteristics



Dimensions (LxW)

338 x 122 mm (13.3" x 4.8")

Weight

0.5 kg

Certification



EMC

CE, FCC

Management Solution



Out of band remote management

AMT
