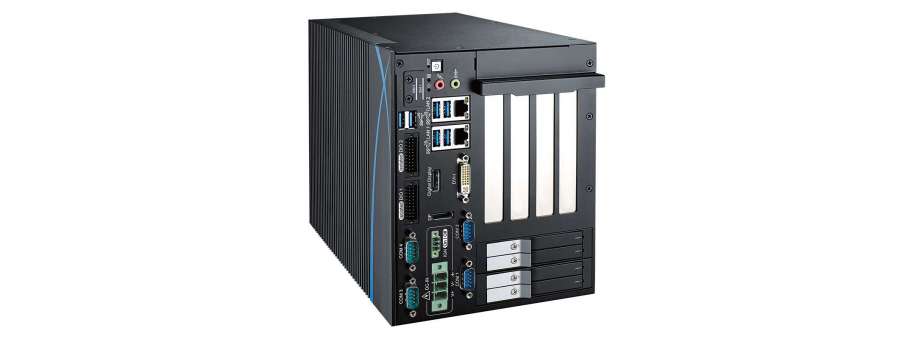

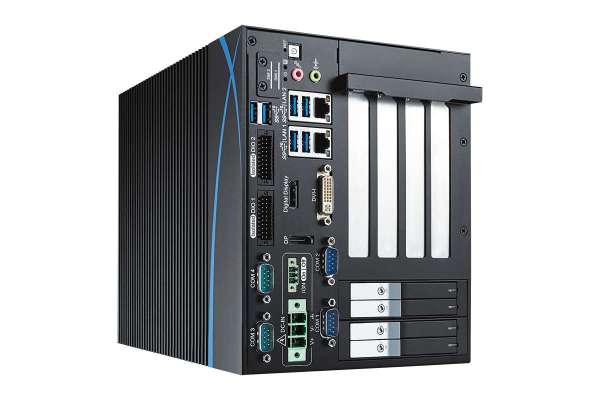

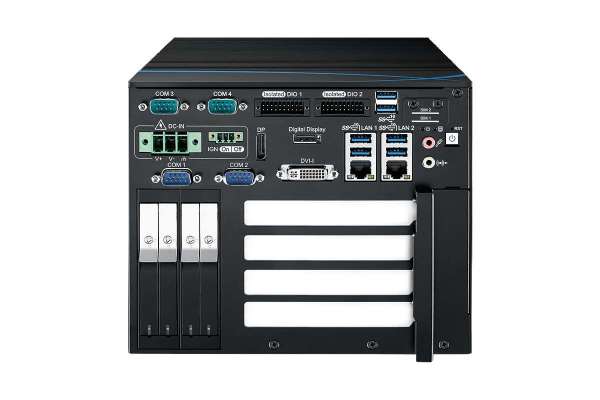

Workstation-grade 9th Intel® Xeon® /Core™ i7/i5/i3 Fanless Robust Computing System with Intel® C246 Chipset, 2 GigE LAN, 1 PCIe x8, 3 PCIe x4, 4 Front-access SSD Tray Vecow RCX-1440R

Price and avalability

Partnumber Description Price VAT incl Avalability
RCX-1440R Промисловий компактний комп'ютер Vecow RCX-1400, 2 GigE LAN, 1 PCIe x8, 3 PCIe x4, 4 SSD Tray, 4 COM, 6 USB 3.1, 2 SIM, 32 Isolated DIO  84 840,0
RCX-1422R Промисловий компактний комп'ютер Vecow RCX-1400, 2 GigE LAN, 1 PCIe x16, 1 PCIe x4, 2 PCI, 4 SSD Tray, 4 COM, 6 USB 3.1, 2 SIM, 32 Isolated DIO  84 840,0
RCX-1404R Промисловий компактний комп'ютер Vecow RCX-1400, 2 GigE LAN, 4 PCI, 4 SSD Tray, 4 COM, 6 USB 3.1, 2 SIM, 32 Isolated DIO  87 612,0

Powered by 9th/8th generation 8 cores Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake Refresh/Coffee Lake), and Intel® C246 chipset, 2 GigE LAN support iAMT 12.0, multiple PCI/PCIe expansion slots, 4 front-access SSD trays, 2 SIM sockets, 6 USB 3.1 Gen 2 sockets, 2 M.2 slots, 4 COM RS-232/422/485, 32 Isolated DIO, rugged, high-performance, flexible, expandable, max 300W power budget for independent graphics operation, Fanless -40 °C to 75 °C operating temperature, Vecow RCX-1000 Fanless Robust Computing System is your rugged solution for Machine Vision, Deep Learning, Robotic Control, Intelligent Surveillance, Factory Automation and any performace-driven embedded applications in harsh environments.

  • 8 Cores 9th Generation Intel® Xeon® /Core™ i7/i5/i3 (Coffee Lake Refresh) with workstation-grade Intel® C246 Chipset
  • 4 DDR4 2666MHz Memory, up to 128GB (ECC/Non-ECC)
  • 6 ports external USB 3.1 Gen 2 support up to 10Gbps data transfer
  • Rugged & Fanless design, -40 °C to 75 °C Operating Temperature
  • 2 External SIM Socket for WiFi/4G/3G/LTE/GPRS/UMTS
  • 4 Front-access 2.5" SSD Tray, RAID 0, 1, 5, 10 supported
  • 4 PCIe Slot : 1 PCIe x8, 3 PCIe x4
  • Supports max 300W Power Budget for independent graphics operation
  • 32 Isolated DIO, 6 USB 3.1, 4 COM RS-232/422/485
  • 2 M.2 Socket : 1 M.2 Key M, 1 M.2 Key E
  • 6V to 36V DC Power Input with 80V Surge Protection
  • Configurable Ignition Power Control

Additional information

System

Processor Intel® Xeon® /Core™ i7/i5/i3 Processor (CFL-R S/CFL-S)
Chipset Intel® C246
BIOS AMI
SIO IT8786E
Memory 4 DDR4 2666MHz SO-DIMM, up to 128GB (ECC/Non-ECC)

I/O Interface

Serial 4 COM RS-232/422/485 (ESD 8KV)
USB
  • 6 USB 3.1 Gen 2 (External)
  • 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket

Expansion

Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
M.2 1 M.2 Key E Socket
PCIe 1 PCIe x8, 3 PCIe x4

Graphics

Graphics Processor Intel® UHD Graphics 630
Interface
  • 1 DVI-I : Up to 1920 x 1200 @60Hz
  • 1 DisplayPort : Up to 4096 x 2304 @60Hz
  • 1 Digital Display (HDMI) : Up to 1920 ×1080 @60Hz

Storage

SATA 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
  • 4 Front-access 2.5" SSD/HDD Tray
  • 1 M.2 Key M Socket (Internal)

Audio

Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN

Power

Power Input 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management t Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats

Software Support

OS Windows 10, Linux

Mechanical

Dimensions 250.4mm x 210.0mm x 172.0mm (9.86" x 8.27" x 6.77")
Weight 5.0 kg (11.0 lb)
Mounting Wallmount by mounting bracket

Environment

Operating Temperature
  • 35W TDP CPU : -40 °C to 75 °C (-40°F to 158°F)
  • 65W TDP CPU : -40 °C to 55 °C (-4°F to 131°F)
  • 80W TDP CPU : -40 °C to 45 °C (-4°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 75°C
Shock
  • IEC 60068-2-27
  • SSD : 50G @ wallmount, Half-sine, 11ms
Vibration
  • IEC 60068-2-64
  • SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
