14.0” rugged laptop Z14I

14.0” FHD rugged laptop Z14I on 8th Generation Intel® Core™ processor

Industrial Computer >> Rugged laptops and tablets

 Price and avalability

Manufacturer: DURABOOK (TWINHEAD)

Combined with the latest 8th Generation Intel® Core™ processor and graphics capabilities, the Z14I can handle data intensive tasks at speed. It has been built to withstand even the harshest of environments. Its IP65 rating, protecting against dust and water ingress, MIL-STD 810G certification and resistance up to six feet drop make the Z14I more rugged than other comparable devices on the market. The device has also been tested for explosive atmosphere, solar radiation, salt fog, and fungus resistance, which goes beyond testing standards compared to other rugged devices in its class.

The Z14I includes Durabook’s proprietary DynaVue® technology and high-definition multi-touch screen, offering the highest contrast ratio, which helps to eliminate internal reflections that enhance viewing clarity even from different angles, and in bright sunshine or low light conditions.

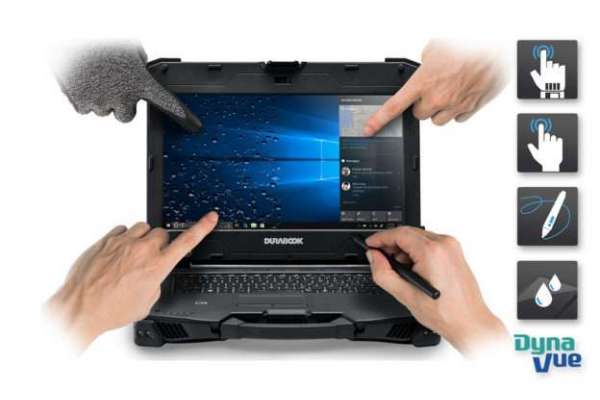

The 10-point capacitive multi-touch panel has four touch modes (Glove, Stylus, Water, Finger), this device is optimized for applications of both indoor and outdoor usage; enhancing the device’s usability regardless of work conditions.

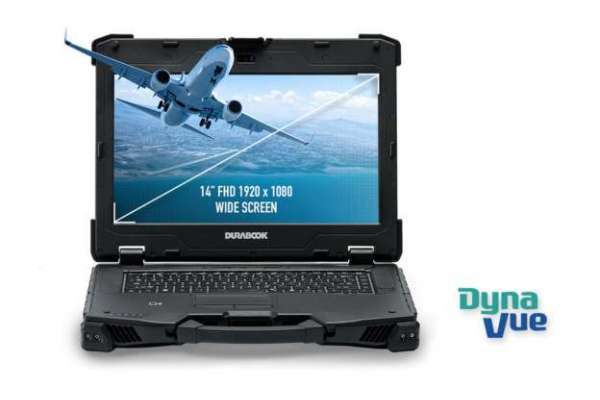

The FullHD 1080p widescreen display alone with DynaVue® technology reveals every detail of visual image at a glance. Not only it has the brightness of up to 1000 nits but also the light-filtering technology makes the Z14I the best rugged laptop with highest contrast ratio (CR), which helps to eliminate internal reflections that enhances viewing clarity when viewed at different angles.

  • 14.0” FHD (1920 x1080) Display
  • Windows® 10 Pro OS
  • MIL-STD-810G
  • Water and Dust Resistant IP 65 certified
  • Intel® UHD Graphics 620

Price and avalability

Partnumber Description Price VAT incl Avalability
Z14I/BASIC Повністю захищений ноутбук DURABOOK Z14I, базова модель, ip65, MIL-STD-810G, 14" FHD сенсорний дисплей, 1000 ніт, Intel Core i5-8250U, W10 Professional, 8 ГБ ОЗП, 256 ГБ SSD, клав з підсв, 802.11a /b/g/n/ac, Bluetooth 5.0  170 769,0
Z14I/ShoulderStrap Плечовий ремінець (2 точки) для захищеного ноутбуку DURABOOK Z14I  2 183,0
Z14I/CarAdapter Автомобільний адаптер (зарядний пристрій) 11-27 В постійного струму для захищеного ноутбуку DURABOOK Z14I  3 056,1
Z14I/SpareBattery Запасний акумулятор для захищеного ноутбуку DURABOOK Z14I  8 108,1
Z14I/BatteryCharger2 Зарядний пристрій на два відсіки (головний+ головний) для захищеного ноутбуку DURABOOK Z14I  17 463,6

Additional information

Rugged Specs


MIL-STD-810G 6′ drop 26 faces, Shock,
Certified Vibration,
Rain, Dust, Altitude, Freeze/Thaw, High/Low
Temperature, Temperature Shock, Humidity,
Explosive Atmosphere, Solar Radiation, Salt Fog,
Fungus Resistance
Electromagnetic MIL-STD 461G
Water and Dust Resistant IP 65 certified
Hazardous Environment ANSI C1D2 12.12.01

Tech Specs


Display 14.0” FHD (1920 x1080)
1000 nits DynaVue® sunlight readable display with
capacitive multi-touch screen
User selectable touch mode for Finger/Water,
Glove, or Stylus programmable function
Operating System Windows® 10 Pro
Processors Intel® Core™ i7-8650U vPro™ (8th Gen) 1.9GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache
Intel® Core™ i7-8550U (8th Gen) 1.8GHz processor with Turbo Boost Technology up to 4.0GHz, 8MB cache
Intel® Core™ i5-8350U vPro™ (8th Gen) 1.7GHz processor with Turbo Boost Technology up to 3.6GHz, 6MB cache
Intel® Core™ i5-8250U (8th Gen) 1.6GHz processor with Turbo Boost Technology up to 3.4GHz, 6MB cache
Memory 2 slots 8GB up to 32GB (2400MHz DDR4)
Storage 256GB SSD
Optional 512GB / 1TB SSD
Optional OPAL 2.0 SSD
Optional 2nd storage (SSD)
Graphics Intel® UHD Graphics 620

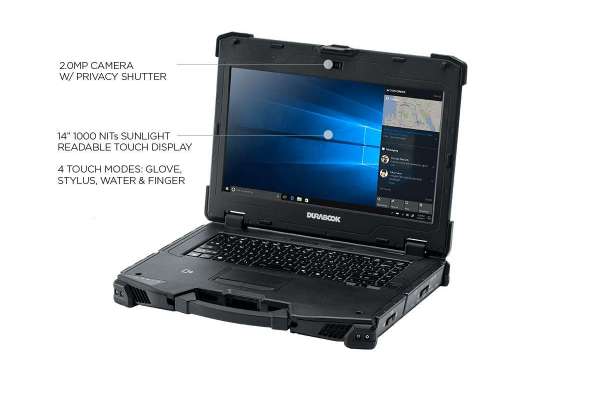

Camera Integrated 2.0 MP web-cam with shutter design
Audio Integrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 2
Keyboard volume and mute controls

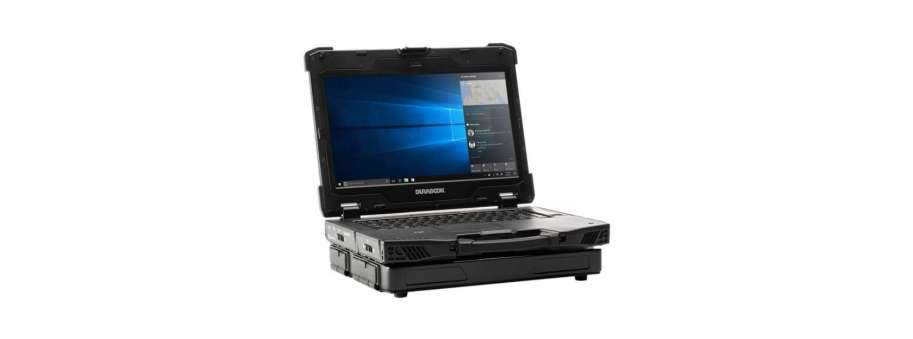

Media Bay (One Option Only) Optional DVD super multi
Optional 2nd battery
Optional 2nd storage (SSD)1
I/O Ports USB 3.1 (type A) x 2
USB 3.1 (type C) x 1
USB 2.0 (type A) x 1
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
10/100/1000 Ethernet (RJ-45) x 2
VGA port (D-sub,15-pin) x 1
DP port x 1
HDMI port (type A) x 1
Serial port (RS-232 : D-sub, 9-pin) x 2
Docking connector (41-pin Pogo) x 1
SIM card x 1
Smart card reader x 1
DC-In jack x 1
PCMCIA Type II x1
ExpressCard 54 x1 or PCMCIA Type II x1
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Keyboard & Pointing Device 2 user-definable keys (P1/P2)
RF signal slide-switch
Standard membrane keyboard with LED backlight
Communications Integrated 10/100/1000 Ethernet
Intel® Dual Band Wireless AC 9260 (802.11a/b/g/n/ac)
Bluetooth® V5.0
Optional dedicated GPS module (UBLOX-NEO-M8N)
Optional 4G LTE multi-carrier mobile broadband
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Security Intel® vProTM Technology (per CPU options)
TPM 2.0
NIST BIOS compliant
Easy removable SSD
Smart card reader default
Stealth mode
Night vision mode
Kensington lock
Optional fingerprint scanner
Optional RFID reader1
Power AC adapter : 100-240V, 50Hz-60Hz, 90W
Main battery Li-Ion, 10.8V, 7800mAh, 16 hours2
Optional 2nd battery Li-Ion 10.8V, 4700mAh, 9 hours2
Optional bridge battery : 5 minutes swap time3
Dimension & Weight 356 mm (L) x 280 mm (W) x 50 mm (H)
3.6 kg4
Warranty 3-year limited warranty standard

  1. Contact your sales representative for feature availability
  2. Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
  3. The system will stay operating within 300 seconds when user swaps the battery.
  4. Weight varies with options.
