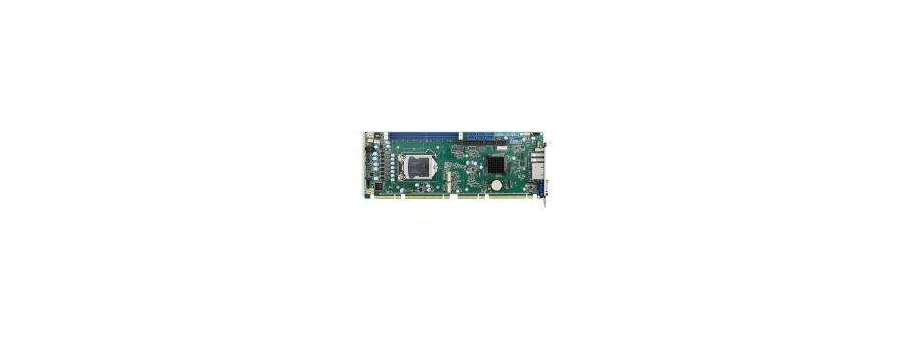

Single Board Computer PCE-7132

LGA1200 10th Generation Intel® Xeon® W/Core™ i9/i7/i5/i3/Pentium® System Host Board with DDR4, SATA 3.0, USB 3.2, M.2, Dual GbE, and Triple Displays by Advantech

System Components >> PICMG 1.3 Full-Size Single Board Computers

 Price and avalability

Manufacturer: Advantech Co., Ltd.

LGA1200 10th Generation Intel® Xeon® W/Core™ i9/i7/i5/i3/Pentium® System Host Board with DDR4, SATA 3.0, USB 3.2, M.2, Dual GbE, and Triple Displays

  • Intel® Xeon® W Family/Core™ i9/i7/i5/i3 LGA1200 processor with W480E chipset
  • Up to 64 GB of dual-channel (non-ECC) DDR4 2666/2933 MHz
  • PCIe 3.0, M.2, USB 3.2, SATA 3.0, and SW Raid 0, 1, 5, 10
  • Supports VGA and 2 x DVI-D/DP display (with optional cable)
  • Supports out-of-band remote management with AMT
  • Supports Advantech’s LPC modules, SUSIAccess, and embedded software APIs

Price and avalability

Partnumber Description Price VAT incl Avalability
PCE-7132G2-00A1 Одноплатний промисловий комп'ютер Advantech LGA1200 W480E FSHB DDR4/Xeon W/VGA/USB3/2GbE/M.  23 129,9

Additional information

Specifications



Bus


PCI-Express 1 x PCIe x16/2 x PCIe x8 and 1 x PCIe x4 to backplane
PCI 4 x PCI master to backplane, 32-bit, 33 MHz

Memory


Technology Dual-channel (non-ECC) U-DIMM DDR4 2666/2933 MHz (supports x8 DDR4 1024 M) (Note: Intel ECC-supported processor must be selected to enable ECC function)
Max. Capacity Up to 64GB (based on CPU)
Socket 2 x DDR4 288-pin DIMM

Graphics


Controller Chipset integrated with Intel® HD Graphics
VRAM Shared system memory is subject to OS
VGA Supports resolutions of up to 2048 x 1152 pixel @ 60 MHz
DVI-D Supports resolutions of up to 1920x 1200 @ 60 MHz
Display Port Supports resolutions of up to 4096 x 2160 @ 60 MHz
Triple Display VGA+DP/DVI-D+DP/DVI-D

Ethernet


Interface 10/100/1000 Mbps
Controller

LAN 1: Intel® I219-LM

LAN 2: Intel® I210-AT

Connector with LED 2 x RJ45

Rear I/O


USB 3.2 Gen2 2
USB2.0 1
Ethernet 2
VGA 1

Internal Connector


USB 5 x USB 2.0 ( 1 USB Type A + 4 on backplane)
SATA (SW Raid 0,1,5,10) 6
M.2 (2280 Type M) 1 (PCIe x4)
DP/DVI-D 2 (Pin header)
COM 2
Parallel 1
IrDA 1
GPIO 8bit

Watchdog Timer


Output System reset
Interval Programmable 1-255 sec

Miscellaneous


Audio Intel® High Definition audio interface (requires audio extension module PCA-AUDIO-HDB1E)

Power Requirement


Test Environment Intel W-1290E, Memory 2* DDR4 2666U 32GB
Voltage +3.3V, +5V, +12V
Current 1.15A, 1.54A, 1.38A

Environment


Temperature

Operating: 0 ~ 60 °C (dependent on CPU and cooler solution)

Non-Operating: -40 ~ 85 °C

Humidity

Operating: 40 °C @ 85% relative humidity (non-condensing)

Non-Operating: 60 °C @ 95% relative humidity (non-condensing)

Physical


Dimensions (L x H) 338 x 122 mm (13.3" x 4.8")
