Fanless PC smart form factor and capable of operating under wide temperatures from -25°C to +70°C for harsh environments Vecow ABP-2000
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ABP-2845A | Промисловий компактний комп'ютер Vecow Fanless Advanced Slim Box PC, Ultra-Low Voltage, -25°C to 70°C Operation Temperature, with 4 LAN, 2 HDMI, 6 COM (2 Isolated COM), 8 GPIO, 5 USB, Onboard Intel® Atom™ Bay Trail E3845 Quad-Core Processor, Terminal Bloc | 63 714,0 | |
| ABP-2845 | Промисловий компактний комп'ютер Vecow Fanless Advanced Slim Box PC, Ultra-Low Voltage, -25°C to 70°C Operation Temperature, with 2 LAN, 2 HDMI, 6 COM (2 Isolated COM), 8 GPIO, 5 USB, Onboard Intel® Atom™ Bay Trail E3845 Quad-Core Processor, Terminal Bloc | 54 243,0 | |
| ABP-2045A | Промисловий компактний комп'ютер Vecow Fanless Advanced Slim Box PC, Ultra-Low Voltage, -25°C to 70°C Operation Temperature, with 4 LAN, 2 HDMI, 6 COM, 8 GPIO, 5 USB, Onboard Intel® Atom™ Bay Trail E3845 Quad-Core Processor, HDMI CEC Support, DC-IN | 60 700,5 | |
| ABP-2045 | Промисловий компактний комп'ютер Vecow Fanless Advanced Slim Box PC, Ultra-Low Voltage, -25°C to 70°C Operation Temperature, with 2 LAN, 2 HDMI, 6 COM, 8 GPIO, 5 USB, Onboard Intel® Atom™ Bay Trail E3845 Quad-Core Processor, HDMI CEC Support, DC-IN | 51 229,5 |

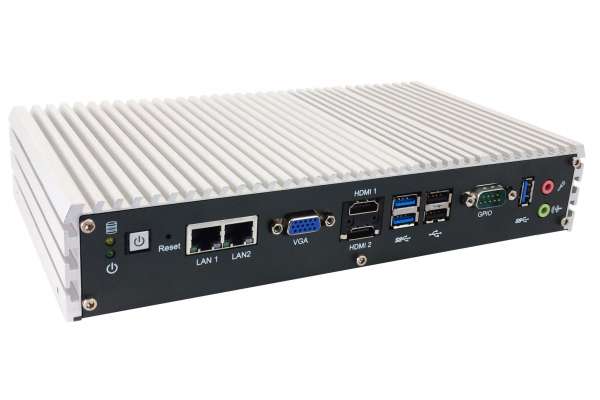

ABP-2845A is equipped with Quad Core Intel® Atom™ E3845 1.91GHz Processor (Valleyview) and DDR3L single channel 8GB memory, 2 HDMI display, 6 External COM with 2 Isolated RS-232/ 422/ 485, 4 Independent Gigabit LAN, one internal 2.5” SATA 3Gbps SSD/HDD, 3 USB 3.0, 2 USB 2.0 and 1 Mini PCIe.
ABP-2000 series is in fanless smart form factor and capable of operating under wide temperatures from -25°C to +70°C for harsh environments. With cutting-edge graphics and computing technologies, ABP-2000 series enable to present high quality resolution 3D display as low power consumption. Design with 6 COM to satisfy various applications’ control and connection requirements, ABP-2000 series still keep fanless and wide operation temperature plus with EN 50155 standard and cable-less arrangement for industrial harsh environment. ABP-2000 series is ideal for information display in harsh environment, automation networking communication, IOT (Internet of Things), In-Vehicle Infotainment (IVI) systems, and M2M (Machine to Machine) applications.
Additional information
| System | |
| Processor | Quad Core Intel® Atom™ E3845 1.91GHz Processor (Valleyview) |
| Chipset | Intel® SoC (Bay Trail) |
| Memory | 1 DDR3L 1333MHz SO-DIMM, up to 8GB |
| Video | 1 DB 15 VGA 2 HDMI 1.4 Optional BOM : LVDS 48-bit |
| Audio | 1 Mic-in, 1 Line-out |
| Software Support | Windows 8, Windows 7, Linux |
| I/O Interface | |
| Serial |

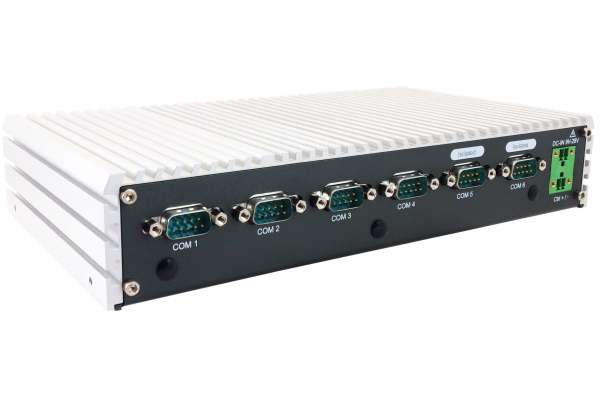

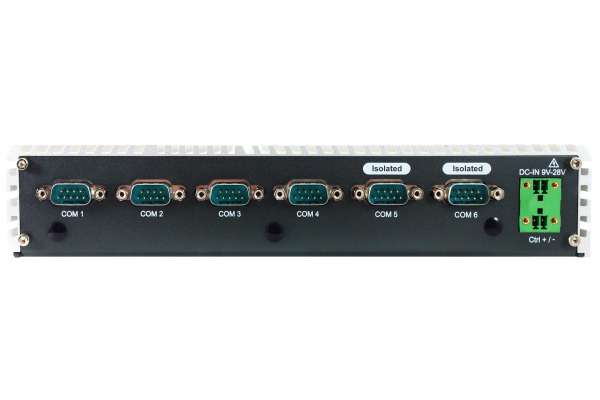

6 External COM : - 2 COM RS-232/ 422/ 485 - 2 COM RS-232 - 2 Isolated COM RS-232/ 422/ 485 |
| LAN 1 | Intel® GbE WG82574L |
| LAN 2 | Intel® GbE WG82574L |
| LAN 3 | Intel® GbE WG82583V |
| LAN 4 | Intel® GbE WG82583V |
| USB | 3 USB 3.0, 2 USB 2.0 |
| GPIO | 8 GPIO |
| Mini PCIe Slot |
2 Mini PCIe Socket : - 1 Mini PCIe for PCIe/ USB/ SIM Card - 1 Mini PCIe for mSATA |
| Power Supply | |
| Power Input | 9V to 28V, DC-in |
| Power Interface | 2-pin Terminal Block : V+, V- |
| Remote Switch | 2-pin Terminal Block : On, Off |
| Power Output | Onboard 12V |
| Adaptor | AC to DC, 60W (Optional) |
| Storage | |
| SATA | 1 SATA II (3Gbps) |
| mSATA | 1 SATA II (Mini PCIe Type, 3Gbps) |
| Other | |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| GPS | Onboard GPS Module (Optional) |
| Mechanical | |
| Dimension (W x L x H) | 257mm x 141mm x 48mm (10.1” x 5.6” x 1.9”) |
| Weight | 2.1 kg (4.6 lb) |
| Mounting | Wallmount by Mounting Bracket |
| Environment | |
| Operating Temperature | -25°C to 70°C (-13°F to 157°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 10% to 95% Humidity, non-condensing |
| Shock |
- IEC 60068-2-27 - SSD : 50G @ Wallmount, Half-sine, 11ms |
| Vibration |
- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
