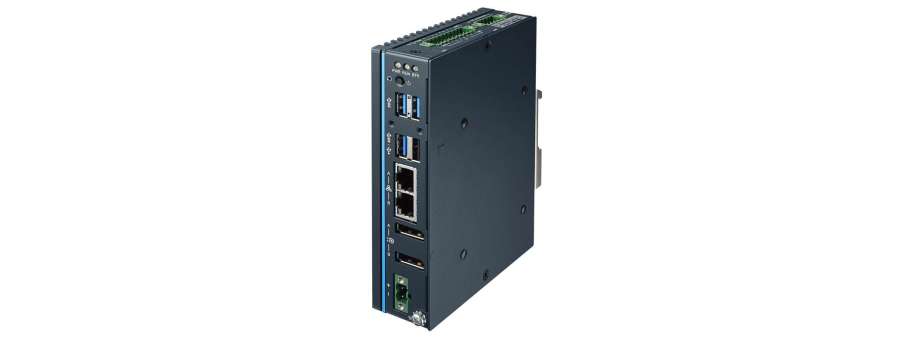

Small-Size Integrated DIN-Rail IPC with Intel® Atom® E3940 Advantech UNO-137

Price and avalability

Partnumber Description Price VAT incl Avalability
UNO-137-E13BA Компактний промисловий комп'ютер Advantech UNO-137, Intel E3940,1.60GHz,8G DDR3L,2LAN,2COM,4USB,8DIO  41 460,3

Advantech’s UNO-100 series are DIN-rail integrated controller that feature a modular design for flexible configuration according to specific usage requirements. UNO-137 is equipped with an Intel® Atom® E3940 processor (1.6 GHz), 8 GB DDR3L RAM, and wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F), as well as 2 x LAN, 2 x COM, 3 x USB 3.0, 1 x USB 2.0, 8 x DI, 8 x DO, and 2 x DP 1.2 . The controller also supports 1 x full-size mini PCIe, 1 x M.2 (B-key), and 1 x nano SIM card slot for convenient expansion to satisfy diverse industrial applications. Compliant with IEC 61010-1 safety requirements for industrial use, UNO-137 can be equipped with an optional second-stack extension kit that supports Advantech’s iDoor technology for integrating additional industrial Fieldbus, wireless communication, I/O, and peripheral modules.

  • Intel® Atom® E3940 processor (1.6 GHz) with 8GB DDR3L memory

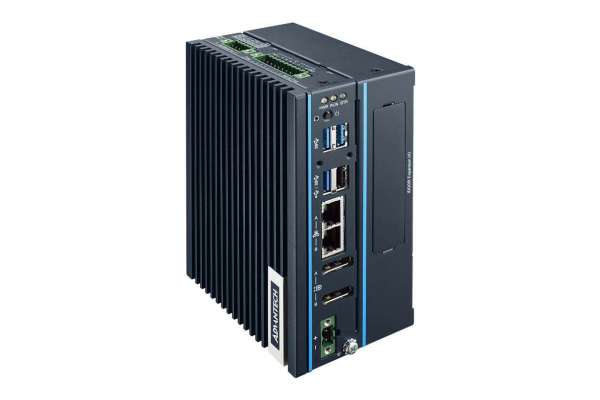

  • Modular design for optional 1 x iDoor expansion
  • Wide operating temperature range (-40~70°C/ -40~158°F)
  • Port isolation for 8 x DI, 8 x DO, 2 x COM
  • Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified

Additional information

General

Certification CE, FCC, UL 61010-2-201, CCC, BSMI
Dimensions (W x D x H) 35 x 105 x 150 mm (1.4 x 4.1 x 5.9 in)
Form Factor Small
Enclosure Aluminum housing

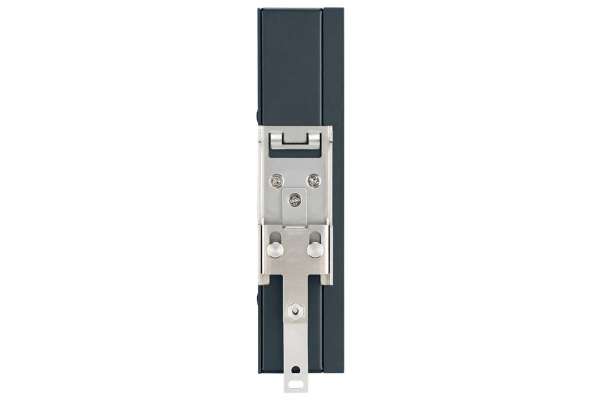

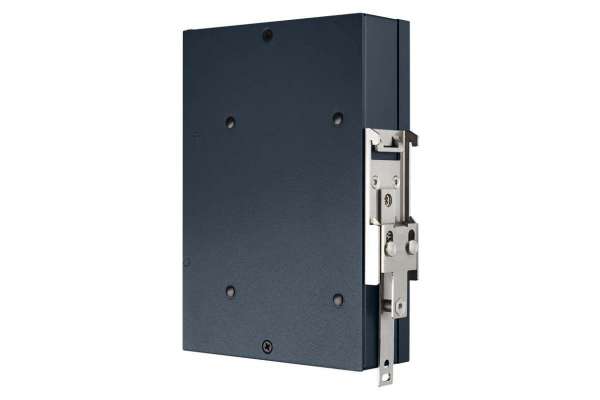

Mounting DIN-rail
Weight (Net) 0.8 kg (1.7 lb)
Power Requirement 10 ~ 36 VDC
Power Consumption 21W (typical), 47W (max.) *For USB iDoor (PCM-24U2U3-BE): 56W max. *For PoE iDoor (PCM-24R2PE-AE): 77W max
OS Support Win 10 2019 LTSC, AdvLinux (Ubuntu 20.04)

System Hardware

BIOS AMI UEFI (128 Mbit)
Watchdog Timer Programmable timer with 255 intervals (1 ~ 255 sec)
Hardware Security TPM2.0
Processor Intel® Atom® E3940, 1.6 GHz (up to 1.8 GHz)
Memory Built-in 8 GB DDR3L, 1600 MHz (Up to 8 GB )
Graphics Engine Intel® HD Graphics
Ethernet Intel® i210-IT GbE, IIEEE802.1AS, 802.3az

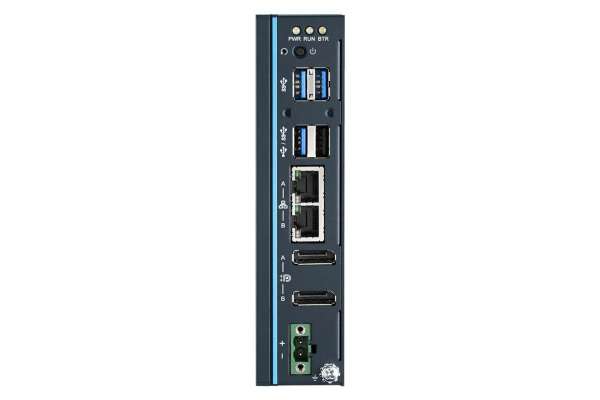

LED Indicators 1 x Programmable LED, 1 x power LED, 1 x RTC battery LED, and LAN (active, status)
Storage 1 x 2.5” SSD/HDD (up to 9.5 mm height) 1 x M.2 B key 2242 SSD
Expansion 1 x Full-size mPCIe (PCIe/USB signal) 1 x M.2 (B-key) 2242 SSD (SATA signal), 3042/3052 cellular module (USB signal) 1 x nano SIM card slot

I/O

Isolated Serial Ports 2 x RS-232/422/485 (terminal block) 50bps ~115.2 kbps (isolation protection: 2500 VDC)
LAN 2 x 10/100/1000 Mbps IEEE 802.3u 1000 BASE-T (RJ45)
USB 3 x USB 3.2 Gen 1, 1 x USB 2.0 (Type A)

Isolated DI/O

  • 8 x Digital input channels with 2500 VDC isolation protection - Wet contact: Logic 0: 10 ~ 30 VDC/ Logic 1: 0 ~ 3 VDC - Dry contact: Logic 0: Shorted to GND/ Logic 1: Open
  • 8 x Digital output channels - Output voltage: 5 ~ 30 VDC - Output capability sink: 500 mA max./channe
Displays 2 x DP 1.2, up to 4096 x 2306 @ 60 Hz
Power Connector 1 x 2-pin terminal block

Environment

Operating Temperature -40 ~ 70 °C/-40 ~ 158 °F with 0.7m/s airflow, with widetemperature (-40 ~ 85 °C/-40 ~ 185 °F) peripherals (e.g., SSD, wireless modules)
Storage Temperature - 40 ~ 85 °C/-40 ~ 185 °F
Relative Humidity 95% RH @ 40 °C/104 °F, non-condensing
Shock Protection Operating, IEC 60068-2-27, 50G, half sine, 11ms
Vibration Protection Operating, IEC 60068-2-64, 4 Grms, random, 5 ~ 500 Hz, 1hr/axis (SSD) Operating, IEC 60068-2-64, 0.3 Grms, random, 5 ~ 500 Hz, 1hr/axis (HDD)
Ingress Protection IP40
