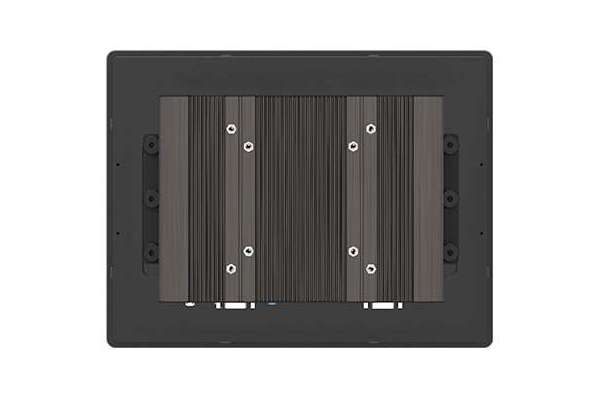

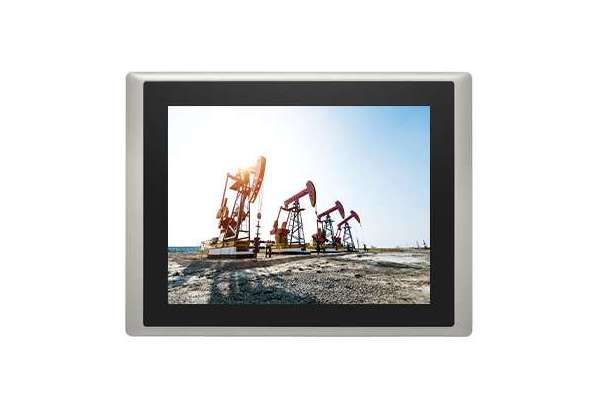

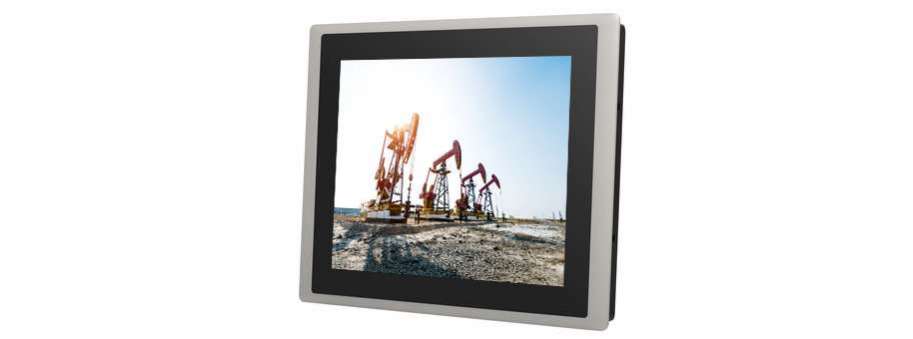

10.4“ TFT-LCD Monitor with Projected Capacitive Touch, 1x DisplayPort, 1x HDMI, 1x VGA Cincoze CS-110H/M1101
The Cincoze CS-100/M1101 series sunlight-readable industrial touch monitors are specifically designed for outdoor applications. The highest brightness is 1,800 nits and there is a selection of screen sizes, ratios, and brightnesses. The CS-100/M1101 is the best choice for outdoor kiosk displays and HMI applications because it is rugged and enables easy on-site maintenance. A variety of input interfaces are supported, including HDMI and DisplayPort digital inputs, and VGA analog input. The monitor has a multi-language OSD and supports multiple installation methods, including panel, VESA, and rack mount, to cater to the varied deployment requirements of different outdoor application scenarios.
- 10.4” TFT-LCD with Ultra High Brightness up to 1,500 nits and 1024 x 768 (XGA) Resolution
- Designed with Aluminum Die-Casting Front Frame
- Various Video Input Interfaces: 1x VGA, 1x HDMI, 1x DisplayPort Input
- Support USB & RS-232 Interfaces for Touch Function
- OSD Control keys for Brightness Adjustment
- Convertible Display System (CDS) Supported
- True Flat IP65 Front Panel Protection
- Support Panel / VESA / Rack Mount
Additional information
Display |
|
| LCD Size | 10.4" (4:3) |
| Max. Resolution | 1024 x 768 (XGA) |
| Brightness (cd/m2) | 1500 |
| Contrast Ratio | 1000 : 1 |
| LCD Color | 16.2M |
| Pixel Pitch (mm) | 0.2055 (H) x 0.2055 (V) |
| Viewing Angle (H-V) | 178 / 178 |
| Backlight LED Life Time | 70,000 hours (LED Backlight) |
Touch Screen |
|
| Touch Type | Projected Capacitive |
Physical |
|
| Dimension ( W x D x H ) | 295 x 227.3 x 56.2 mm |
| Weight Information | 2.24 kg |
| Mechanical Construction | Flat Rugged Aluminum Die-casting Bezel |
Power |
|
| Power Consumption | 15.3W (Typ.) |
Environment |
|
| Front Panel Protection | IP 65 Compliant |
| Operating Temperature | -20°C to 80°C (With Industrial Grade Peripherals; Ambient with air flow) |
| Storage Temperature | -30°C to 80°C |
| Relative Humidity | 80% RH @ 40°C (Non-Condensing) |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| EMI |
|
| EMS |
|
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
Graphics |
|
| HDMI-in | 1x HDMI Connector (1920 x 1080 @60Hz) |
| DP-in | 1x DisplayPort Connector (1920 x 1080 @60Hz) |
| VGA-in | 1x VGA Connector (1920 x 1080 @60Hz) |
Audio |
|
| Audio input | 1x Audio Line in, Phone Jack 3.5mm |
I/O |
|
| COM | 1x RS-232, DB9 |
| USB | 1x 480Mbps USB 2.0, Type A |
Power |
|
| Power Input | 9 - 48VDC, 3-pin Terminal Block |
Physical |
|
| Dimension ( W x D x H ) | 204.5 x 149 x 38.5 mm |
| Weight Information | 1.2 kg |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting | VESA / CDS Mounting |
| Physical Design |
|
Environment |
|
| Operating Temperature |
-20°C to 70°C * Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -20°C to 75°C |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) |
| Shock | Operating, 15 Grms (according to IEC60068-2-27) |
| Vibration |
|
| EMC |
|
| EMI |
|
| EMS |
|
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
