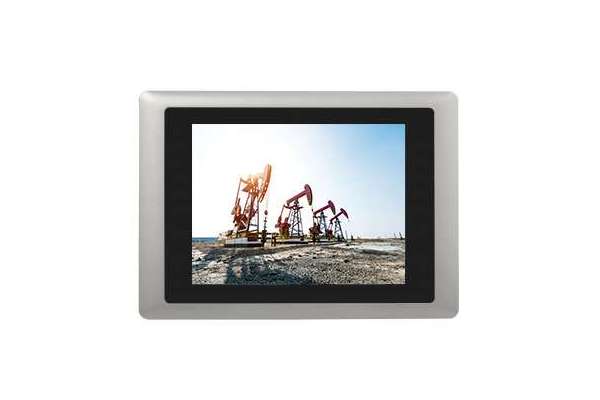

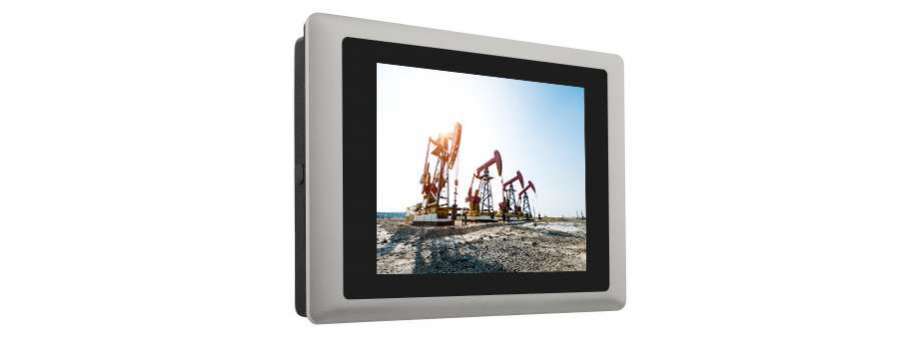

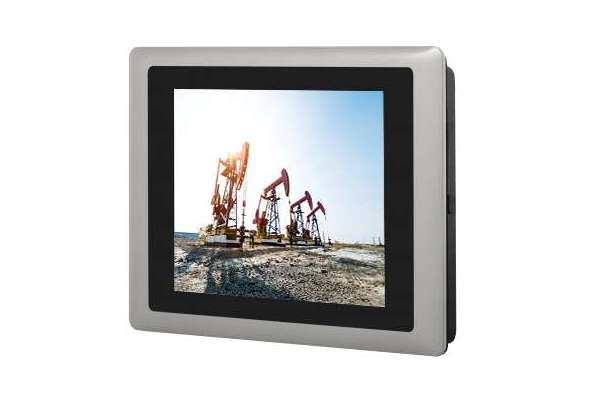

Sunlight Readable Touch Monitor with Projected Capacitive Touch, 1x DisplayPort, 1x HDMI, 1x VGA Cincoze CS-108/M1101

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

The Cincoze CS-100/M1101 series sunlight-readable industrial touch monitors are specifically designed for outdoor applications. The highest brightness is 1,800 nits and there is a selection of screen sizes, ratios, and brightnesses. The CS-100/M1101 is the best choice for outdoor kiosk displays and HMI applications because it is rugged and enables easy on-site maintenance. A variety of input interfaces are supported, including HDMI and DisplayPort digital inputs, and VGA analog input. The monitor has a multi-language OSD and supports multiple installation methods, including panel, VESA, and rack mount, to cater to the varied deployment requirements of different outdoor application scenarios.

  • 8.4” TFT-LCD with Ultra High Brightness up to 1,600 nits and 800 x 600 (SVGA) Resolution
  • Designed with Aluminum Die-Casting Front Frame
  • Various Video Input Interfaces: 1x VGA, 1x HDMI, 1x DisplayPort Input
  • Support USB & RS-232 Interfaces for Touch Function
  • OSD Control keys for Brightness Adjustment
  • Convertible Display System (CDS) Supported
  • True Flat IP65 Front Panel Protection
  • Support Panel / VESA / Rack Mount

Additional information

Graphics
HDMI-in 1x HDMI Connector (1920 x 1080 @60Hz)
DP-in 1x DisplayPort Connector (1920 x 1080 @60Hz)
VGA-in 1x VGA Connector (1920 x 1080 @60Hz)

Audio
Audio input 1x Audio Line in, Phone Jack 3.5mm

I/O
COM 1x RS-232, DB9
USB 1x 480Mbps USB 2.0, Type A

Other Function
OSD Button Menu, Auto, LCD On/Off, Brightness Up, Brightness Down
Internal Speaker AMP 2W + 2W
Status LED Indicator Power LED, Standby LED

Power
Power Input 9 - 48VDC, 3-pin Terminal Block

Physical
Dimension ( W x D x H ) 204.5 x 149 x 38.5 mm
Weight Information 1.2 kg

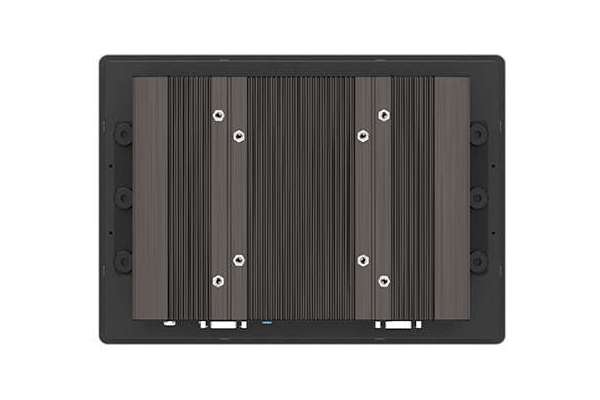

Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting VESA / CDS Mounting
Physical Design
  • Fanless Design
  • Jumper-less Design

Reliability & Protection
Reverse Power Input Protection Yes
Over Voltage Protection
  • Protection Range: 51~58V
  • Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
MTBF 1,217,359 hrs - Database: Telcordia SR-332 Issue 3, Method 1, Case 3

Environment
Operating Temperature
-20°C to 70°C

* Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -20°C to 75°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock Operating, 15 Grms (according to IEC60068-2-27)
Vibration
  • Operating, 1.5 Grms, 5-500 Hz, 3 Axes (according to IEC60068-2-64)
  • Operating, 1 Grms, 10-500 Hz, 3 Axes (according to IEC60068-2-6)
EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN IEC 61000-6-4, EN IEC 61000-6-2(24VDC Input Only)
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Safety UL, cUL, CB, IEC, EN 62368-1
