Rugged Specs
|
|
MIL-STD-810G Certified |
6′ drop 26 faces, drop, shock,vibration, altitude, freeze/thaw, high/low temperature, temperature shock, humidity) |
Electromagnetic |
MIL STD-461G |
Water and Dust Resistant |
IP65 |
Hazardous Environment |
ANSI C1D2 12.12.01 |
Tech Specs
|
|
Display |
11.6” FHD (1920 × 1080)
Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen and digitizer

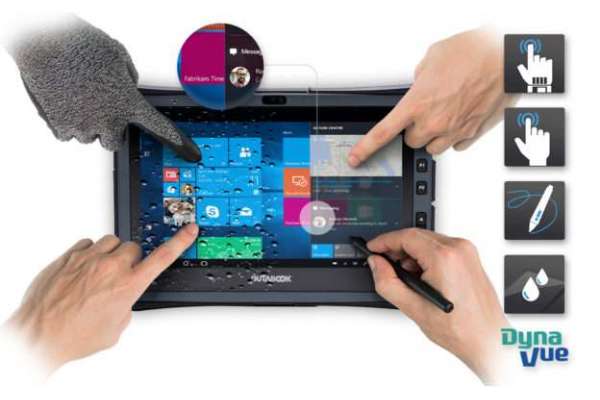

User selectable touch mode for Finger/Water, Glove,or Stylus programmable function
|
Operating System |
Windows® 10 Pro |
Processors |
Intel® Core™ i7-10510Y vPro™ (10th Gen) 1.2GHz processor with Turbo Boost Technology up to 4.5GHz, 8MB cache
Intel® Core™ i5-10310Y vPro™ (10th Gen) 1.1GHz processor with Turbo Boost Technology up to 4.1GHz, 6MB cache
Intel® Core™ i5-10210Y (10th Gen) 1.0GHz processor with Turbo Boost Technology up to 4.0GHz, 6MB cache |
Memory |
1 slots 8GB up to 16GB (1866MHz DDR3) |
Storage |
128GB SSD
Optional 256GB/512GB/1TB SSD
Optional OPAL 2.0 SSD |
Graphics |
Intel® UHD Graphics |
Camera |

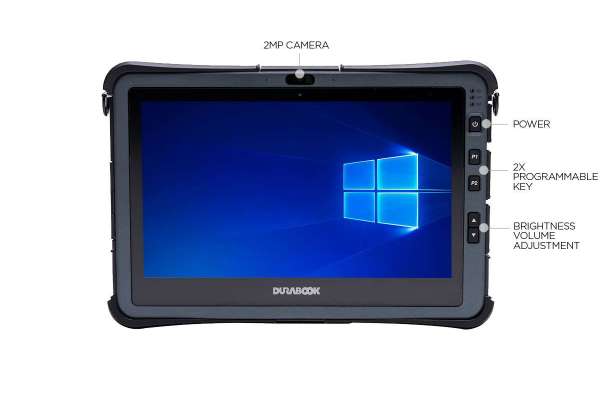

Front: Integrated 2MP Webcam
Rear: Optional 8MP auto-focus with flash |
Audio |
Integrated microphone
Intel® High Definition Audio Compliant
Integrated speaker × 2 |
I/O Ports |
USB 3.1 (type A) x 1
2nd USB 3.1 (type A) x 14
Audio in/out (combo jack) x 1
microSD card (microSDHC, microSDXC) x 1
10/100/1000 Ethernet (RJ-45) x 1
HDMI port (type A) x 1
Docking connector (20-pin Pogo) x 1
SIM card x 1
Optional smart card reader x 1 or x 22,3
DC-In jack x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN |
Expansion Slots |
Optional serial port (RS232, 422 and 485 : D-sub,9-pin) x 1 or 2nd USB 3.1 (type A) or 1D/2D barcode reader4
Optional PCMCIA Type II or ExpressCard 54 or RFID or 2nd smart card reader3 |
Keyboard & Pointing Device |
5 buttons (2 user-definable keys) |
Wireless & Communications |
Integrated 10/100/1000 Ethernet
Intel® Dual Band Wireless AC 9260 (802.11a/b/g/n/ac)
Bluetooth® V5.0
Optional dedicated GPS module (UBLOX-NEO-M8N)
Optional 4G LTE multi-carrier mobile broadband
Optional RF antenna pass-through for GPS, WWAN, and WLAN |
Security |
Intel® vPro™ Technology (per CPU options)
TPM 2.0
NIST BIOS compliant

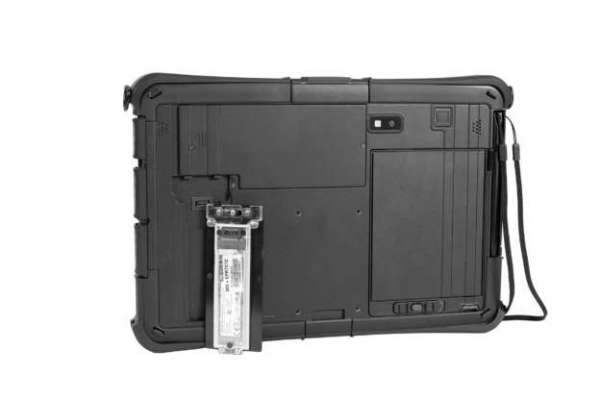

Easy removable SSD7
Stealth mode
Kensington lock
Optional smart card reader x 1 or x 22,3
Optional Night vision mode1
Optional fingerprint scanner
Optional RFID reader2,3 |
Power |
AC adapter : 100-240V, 50Hz-60Hz, 65W
Main battery Li-Ion, 7.6V, 4800mAh, 13.5 hours5
Optional long life battery Li-Ion, 7.6V, 9600mAh, 24 hours5
Optional bridge battery : 5 minutes swap time6 |
Dimension & Weight |
317 mm (L) x 215 mm (W) x 24 mm (H)
1.39 kg |
Warranty |
3-year limited warranty standard |
