Nvidia 6-core Arm® Cortex-A78AE Edge AI Display Box Advantech DS-015

Manufacturer: Advantech
Facebook Twitter Linkedin Mail
  • Powered by Nvidia 6-core Arm® Cortex-A78AE v8.2 64-bit
  • Multiple AI workloads up to 157 TOPS (INT8)
  • Ultra-slim design with intelligent fan cooling

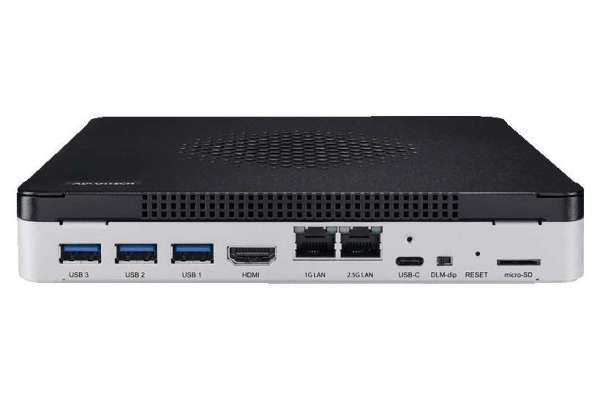

  • Connectivity: 3 × USB 3.2 Gen 1 ports, 1 × USB Type-C (for download mode only)
  • Display & Camera Support: HDMI 4K@60 output and GMSL camera interfaces

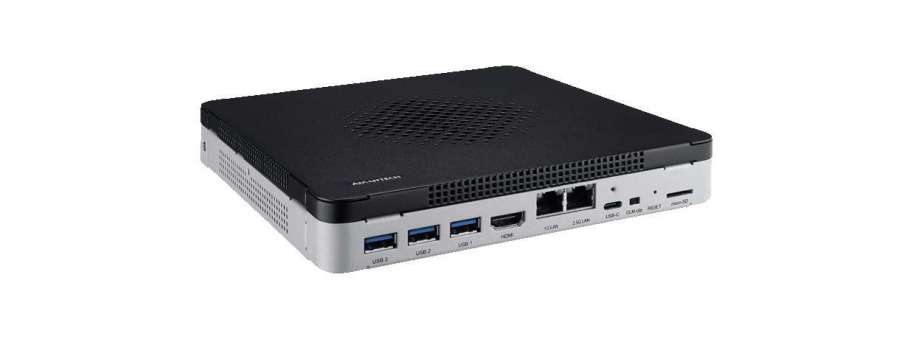

DS-015 is a slim Edge AI Box powered by NVIDIA Jetson Orin Nano & NX, featuring 4K HDMI display output and dual GMSL camera inputs. Designed for smart city and retail applications, it is an ideal solution for interactive AI systems and digital signage. With the NVIDIA Ampere architecture (512/1024-core GPU with 16 & 32 Tensor Cores), it delivers powerful performance for real-time AI inference at the edge.

Additional information

Processor

 DS-015VB-U0A1E DS-015VB-U1A1E DS-015VB-U2A1U DS-015VB-U3A1U
Chipset NVIDIA Jetson Orin Nano 4G NVIDIA Jetson Orin Nano 8G NVIDIA Jetson Orin NX 8G NVIDIA Jetson Orin NX 16G
CPU Arm Cortex-A78AE (6 cores) Arm Cortex-A78AE (6 cores) Arm Cortex-A78AE (8 cores) Arm Cortex-A78AE (8 cores)

Memory
Technology 4GB LPDDR5 4267 MT/s on board 8GB LPDDR5 4267 MT/s on board 8GB LPDDR5 8533 MT/s on board 16GB LPDDR5 8533 MT/s on board

GPU
CUDA Cores 512-cores NVIDIA Ampere Architecture 1024-cores NVIDIA Ampere Architecture 1024-cores NVIDIA Ampere Architecture 1024-cores NVIDIA Ampere Architecture
Tensor Cores 16 Tensor 32Tensor 32Tensor 32Tensor

AI Performance Reference
Super mode (Sparse) 34 TOPS 67 TOPS 117 TOPS 157 TOPS

Thermal Solution
Technology Smart fan Smart fan Smart fan Smart fan

Display
Output 1 x HDMI1.4 1 x HDMI1.4 1 x HDMI2.0 1 x HDMI2.0
HDMI Resolution Nano: 4K UHD (3840x2160) @ 30Hz Nano: 4K UHD (3840x2160) @ 30Hz NX: 4K UHD (3840x2160) @ 60Hz NX: 4K UHD (3840x2160) @ 60Hz

Ethernet
Controller 1G Realtek 8111 2.5G Intel I226V 1G Realtek 8111 2.5G Intel I226V 1G Realtek 8111 2.5G Intel I226V 1G Realtek 8111 2.5G Intel I226V
Interface 2 x RJ45 2 x RJ45 2 x RJ45 2 x RJ45

I/O Interfaces

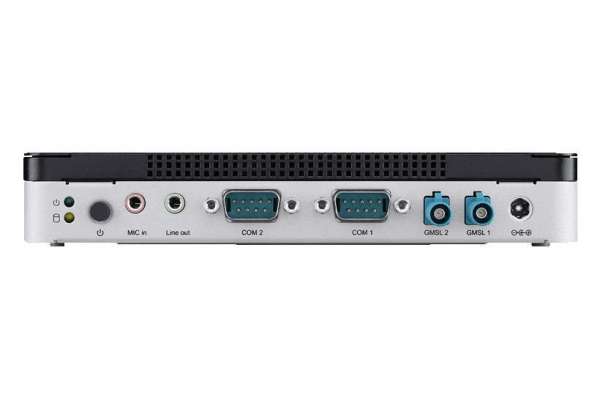

Audio 1 x Line-out; 1 x Mic-in 1 x Line-out; 1 x Mic-in 1 x Line-out; 1 x Mic-in 1 x Line-out; 1 x Mic-in
USB
  • 3 x USB 3.2 x Gen1;
  • 1 x USB type C for download mode only
  • 3 x USB 3.2 x Gen1;
  • 1 x USB type C for download mode only
  • 3 x USB 3.2 x Gen1;
  • 1 x USB type C for download mode only
  • 3 x USB 3.2 x Gen1;
  • 1 x USB type C for download mode only
Serial Port 1 x RS232, 1 x RS-232/422/485. 1 x RS232, 1 x RS-232/422/485. 1 x RS232, 1 x RS-232/422/485. 1 x RS232, 1 x RS-232/422/485.
LED Indicators 1 x Power, 1 x SSD Access 1 x Power, 1 x SSD Access 1 x Power, 1 x SSD Access 1 x Power, 1 x SSD Access
GMSL 2 x FAKRA connectors for GMSL 2 x FAKRA connectors for GMSL 2 x FAKRA connectors for GMSL 2 x FAKRA connectors for GMSL
CAN Bus CAN A/B (By jumper setting, shared with debug port) CAN A/B (By jumper setting, shared with debug port) CAN A/B (By jumper setting, shared with debug port) CAN A/B (By jumper setting, shared with debug port)
SDHC 1 x SD slot 1 x SD slot 1 x SD slot 1 x SD slot

Expansion
M.2
  • 1 x M.2 M-Key 2280 (PCIe x 4)
  • 1 x M.2 M-Key 2242 (PCIe x 1)
  • 1 x M.2 E-Key 2230 (PCIe x1/USB 2.0)
  • 1 x M.2 M-Key 2280 (PCIe x 4)
  • 1 x M.2 M-Key 2242 (PCIe x 1)
  • 1 x M.2 E-Key 2230 (PCIe x1/USB 2.0)
  • 1 x M.2 M-Key 2280 (PCIe x 4)
  • 1 x M.2 M-Key 2242 (PCIe x 1)
  • 1 x M.2 E-Key 2230 (PCIe x1/USB 2.0)
  • 1 x M.2 M-Key 2280 (PCIe x 4)
  • 1 x M.2 M-Key 2242 (PCIe x 1)
  • 1 x M.2 E-Key 2230 (PCIe x1/USB 2.0)
Storage
  • 1 x M.2 M-Key 2280 (built-in 128G SSD),
  • 1 x M.2 M-Key 2242
  • 1 x M.2 M-Key 2280 (built-in 128G SSD),
  • 1 x M.2 M-Key 2242
  • 1 x M.2 M-Key 2280 (built-in 128G SSD),
  • 1 x M.2 M-Key 2242
  • 1 x M.2 M-Key 2280 (built-in 128G SSD),
  • 1 x M.2 M-Key 2242

Power
Power Type AT/ATX AT/ATX AT/ATX AT/ATX
Input Voltage 12-24V 12-24V 12-24V 12-24V

Trusted Platform Module
TPM2.0 TPM 2.0 (Nuvoton NPCT760AABYX) TPM 2.0 (Nuvoton NPCT760AABYX) TPM 2.0 (Nuvoton NPCT760AABYX) TPM 2.0 (Nuvoton NPCT760AABYX)

Physical Characteristics
Mounting Wall Mount Wall Mount Wall Mount Wall Mount
Dimension 180 x 177 x 29.9 mm 180 x 177 x 29.9 mm 180 x 177 x 29.9 mm 180 x 177 x 29.9 mm
Weight 0.9 kg 0.9 kg 0.9 kg 0.9 kg

Environment
Operating Temperature 0~40°C 0~40°C 0~40°C 0~40°C
Relative Humidity 95% @ 40 °C (non-condensing), operating 95% @ 40 °C (non-condensing), operating 95% @ 40 °C (non-condensing), operating 95% @ 40 °C (non-condensing), operating

Operating System
Operating System Linux Ubuntu 22.04 with Jetpack version 6.2 Linux Ubuntu 22.04 with Jetpack version 6.2 Linux Ubuntu 22.04 with Jetpack version 6.2 Linux Ubuntu 22.04 with Jetpack version 6.2

Certification
EMC CE/FCC Class B, BSMI, UKCA CE/FCC Class B, BSMI, UKCA CE/FCC Class B, BSMI, UKCA CE/FCC Class B, BSMI, UKCA
Safety UL, CB, BSMI UL, CB, BSMI UL, CB, BSMI UL, CB, BSMI
