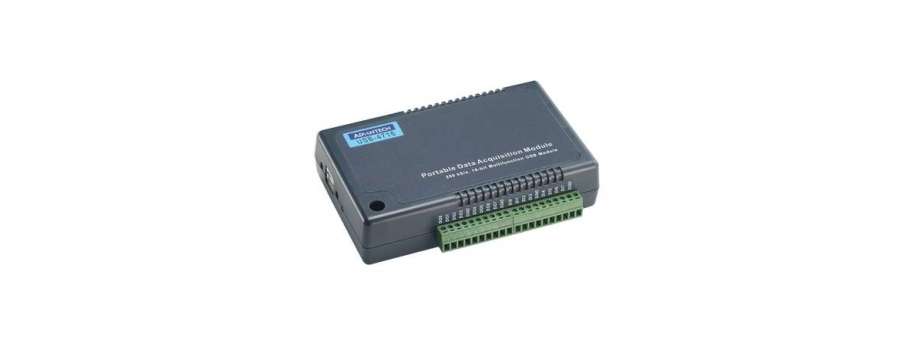

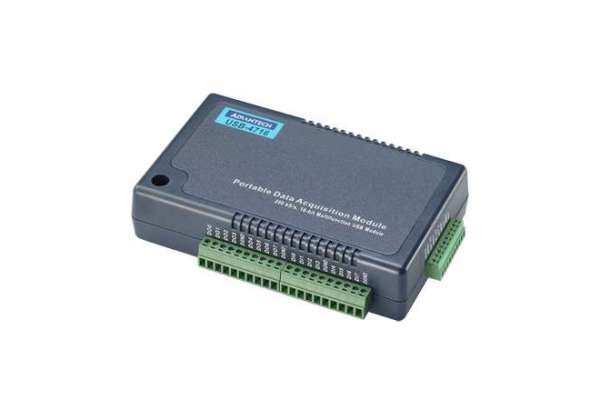

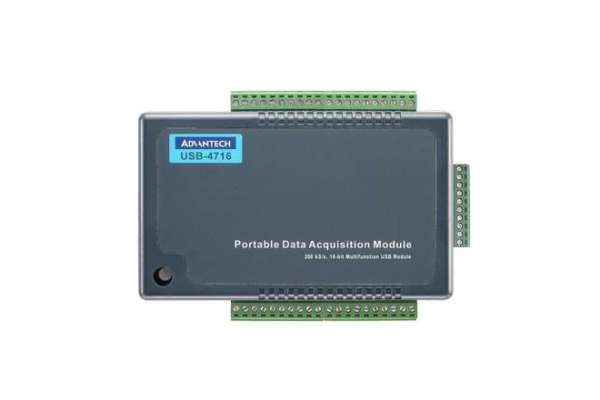

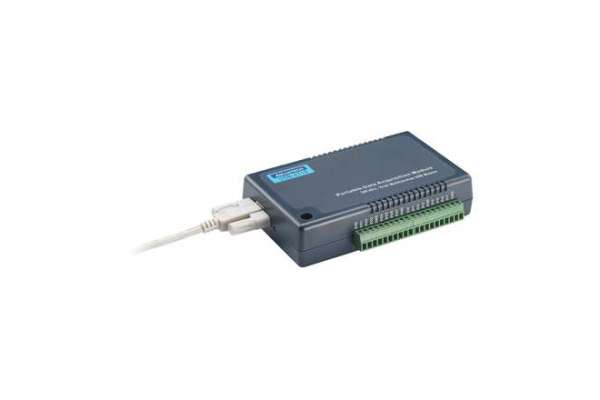

Multifunction USB Module USB-4716 by Advantech 200 kS/s, 16-bit, 16-ch

Signal input/output >> External USB modules

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The USB-4700 series comprises plug-and-play DAQ modules that can be installed without opening the chassis; simply plug in the modules to access collected data. Reliable and rugged enough for industrial applications, yet sufficiently affordable for home systems, USB-4700 series modules provide an easy and efficient means of adding measurement and control capabilities to USB-capable computers. USB-4716 offers 16 single-ended/8 differential analog inputs with 16-bit resolution, up to 200 kS/s throughput, 16 digital I/Os, 1 user counter, and 2 16-bit analog outputs. Additionally, because USB-4716 draws power from the computer via the USB port, no external power connection is required, making this module a most cost-effective solution for diverse testing and measurement applications.

  • Supports USB 2.0
  • Portable
  • Bus powered
  • 16 x Analog input channels
  • 16-bit resolution analog input
  • Up to 200 kS/s sampling rate
  • 8-ch Digital input/8-ch digital output, 2-ch analog output, and 1 x 32-bit counter
  • Detachable screw terminal on modules
  • Suitable for DIN rail mounting
  • 1 x Lockable USB cable included for connection security

Price and avalability

Partnumber Description Price VAT incl Avalability
USB-4716-AE Внешний многофункциональный модуль АЦП с интерфейсом USB. 200KS/s, 16-bit  22 969,8

Additional information

Analog Input


Channels 16 Single ended/ 8 differential (software programmable)
Resolution 16 bits
Max. Sampling Rate 200 kS/s (for USB 2.0)
  Note: The sampling rate of each channel is influenced by the number of used channels. For example, if 4 channels are used, the sampling rate will be 200k/4 = 50 kS/s per channel
FIFO Size 1,024 samples
Overvoltage Protection 30 Vp-p
Input Impedance 1 GW
Sampling Modes Software, onboard programmable pacer, or external

Analog Output


Channels 2
Resolution 16 bits
Output Rate Static update
Output Range (V, software programmable)
Internal Reference
  • Unipolar 0 ~ 5 , 0 ~ 10
  • Bipolar ±5, ±10
Slew Rate 0.125 V/µs
Driving Capability 5 mA
Output Impedance 0.1 Ω max.
Operation Mode Single output
Accuracy Relative: ±1 LSB

Digital Input


Channels 8
Compatibility 3.3 V/5 V/TTL
Input Voltage
  • Logic 0: 1.0 V max.
  • Logic 1: 2.0 V min.

Digital Output


Channels 8
Compatibility 3.3 V/TTL
Output Voltage
  • Logic 0: 0.4 V max.
  • Logic 1: 2.4 V min
Output Capability
  • Sink: 6 mA (sink)
  • Source: 6 mA (source)

Event Counter


Channels 1
Compatibility 3.3V/TTL
Max. Input Frequency 1 kHz

General


Bus Type USB 2.0
I/O Connector Onboard screw terminal
Dimensions (L x W x H) 132 x 80 x 32 mm (5.2" x 3.15" x 1.26")
Power Consumption
  • Typical: 5 V @ 360 mA
  • Max.: 5 V @ 450 mA
Operating Temperature 0 ~ 60 °C (32 ~ 158 °F)
Storage Temperature -20 ~ 70 °C (-4 ~ 158 °F)
Operating Humidity 5 ~ 85% RH non-condensing
Storage Humidity 5 ~ 95% RH non-condensing
