Part Number
|
PPC-6191C-RMAE |
PPC-6191C-RTAE |
|
Storage
|
2 x 2.5" SATA HDD bay
|
1 x 2.5" SATA HDD bay
|
|

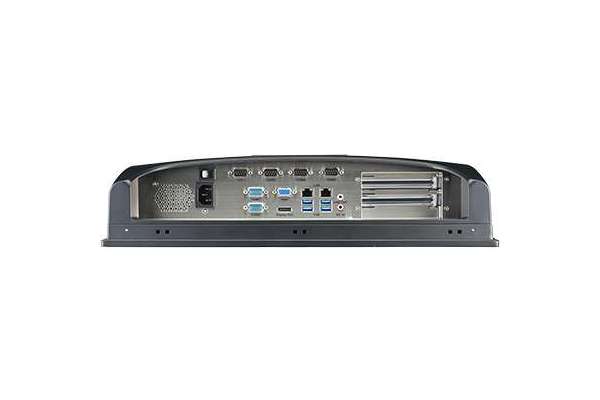

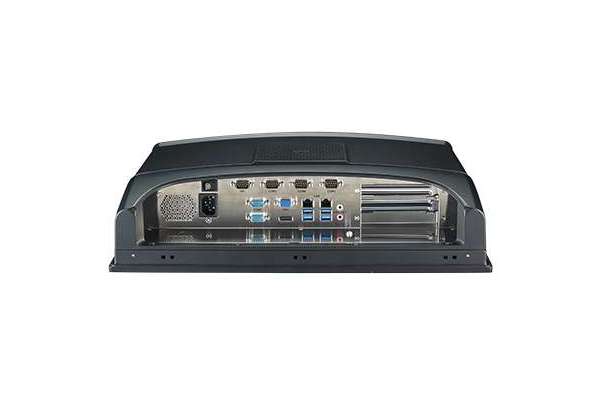

I/O ports
|
1 x AC inlet;1 x Power Switch;1 x DP port (input, for connecting M/B and LVDS panel);1 x USB 2.0 (input, for connecting M/B and touch controller);Reserved opening:Based on M/B's specific
|
1 x AC inlet;1 x Power Switch;Reserved opening:Based on M/B PPC-MB-8260AE's specific
|
|
Expansion
|
1 x PCIe x4 or 1 x PCI (in the accessory box)
|
1 x PCIe x4 or 2 x PCI (in the accessory box);2 x PCIe x1 (optional);1 x PCIe x1 + 1 x PCI (optional)
|
|
Speaker
|
2 X 1W
|
2 X 1W
|
|
Fan
|
2 x 12V, 60 x 60 x 15 mm
|
2 x 12V, 60 x 60 x 15 mm
|
| Physical Characteristics |
|
|
|
Dimensions
|
454 x 379.8 x 107.5 mm (17.9" x 15" x 4.2")
|
454 x 379.8 x 107.5 mm (17.9" x 15" x 4.2")
|
|
Weight
|
5.8 Kg(12.81b)
|
5.8 Kg(12.81b)
|
| OS Support |
|
|
| OS Support |
According to motherboard specifications
|
According to motherboard specifications
|
| Power Supply |
|
|
|
Input Voltage
|
100 - 240 Vac, 50/60Hz, 4-2A
|
100 - 240 Vac, 50/60Hz, 4-2A
|
| LCD Display |
|
|
|
Display Type
|
19" TFT LED Panel
|
19" TFT LED Panel
|
|
Max. Resolution
|
1280 x 1024
|
1280 x 1024
|
|
Viewing Angle (H/V°)
|
85 (left), 85 (right), 80 (up), 80 (down)
|
85 (left), 85 (right), 80 (up), 80 (down)
|
|
Luminance (cd/m2)
|
350
|
350
|
|
Contrast Ratio
|
100:1
|
100:1
|
|
Backlight Life
|
50, 000 hrs
|
50, 000 hrs
|
| Touch Screen |
|
|
|
Type
|
Analog Resistive 5-wire/Projected capacitive type (optional)
|
Analog Resistive 5-wire/Projected capacitive type (optional)
|
|
Light transmission
|
80+/-5%
|
80+/-5%
|
|
Controller
|
USB interface
|
USB interface
|
|
Durability (Touches)
|
35 million
|
35 million
|
| Environment |
|
|
|
Operating Temperature
|
0 ~ 50 °C (32 ~ 122 °F);0 ~ 45 °C (32 ~ 113 °F) with VESA mount module
|
0 ~ 50 °C (32 ~ 122 °F);0 ~ 45 °C (32 ~ 113 °F) with VESA mount module
|
|
Storage Temperature
|
-30 ~ 60°C (-22 ~ 140°F)
|
-30 ~ 60°C (-22 ~ 140°F)
|
|
Relative Humidity (Non-condensing)
|
10 ~ 95% @ 40°C (non-condensing)
|
10 ~ 95% @ 40°C (non-condensing)
|
|
Shock
|
Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
|
Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
|
|
Vibration
|
Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with HDD, IEC 60068-2-64 compliant
|
Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with HDD, IEC 60068-2-64 compliant
|
|
EMC
|
CE, FCC Class A
|
BSMI,CE,FCC,Class A
|
|
Safety
|
CB,CCC,UL
|
BSMI,CB,CCC,UL
|
|
Front Panel Protection
|
IP65 Compliant
|
IP65 Compliant
|
