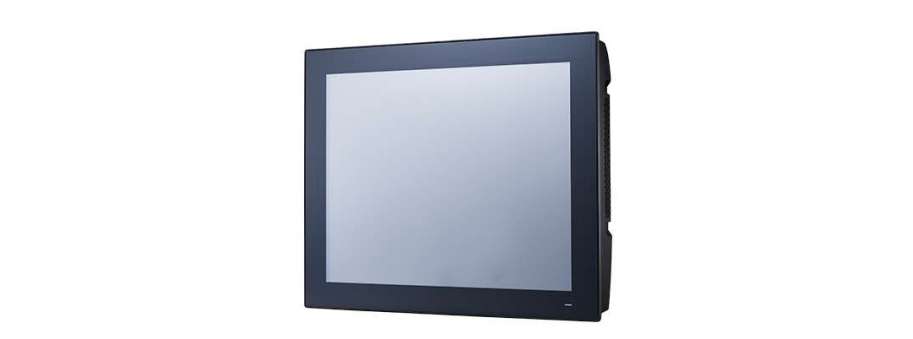

19" Panel PC Advantech PPC-6191С

Industrial configurable panel PCs 19" Intel® 6th/7th Gen. Core™ i Panel PC Chassis for selectable Mini-ITX Motherboard PPC-6191С

Industrial Computer >> Industrial Panel PC and HMI

 Price and avalability

Manufacturer: Advantech Co., Ltd.

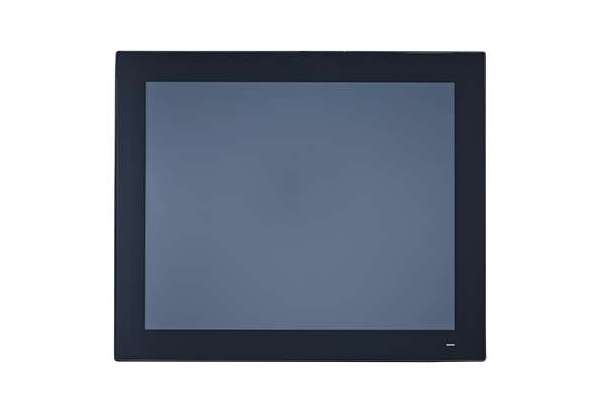

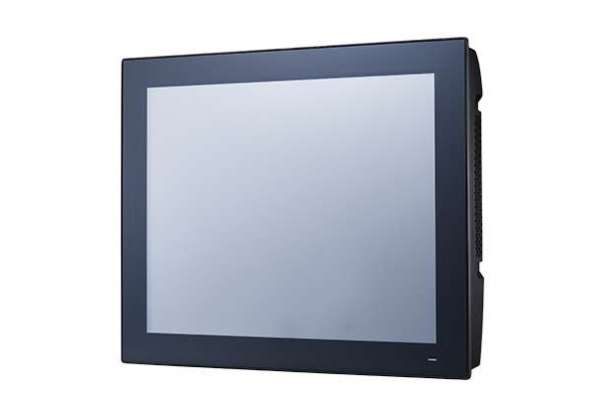

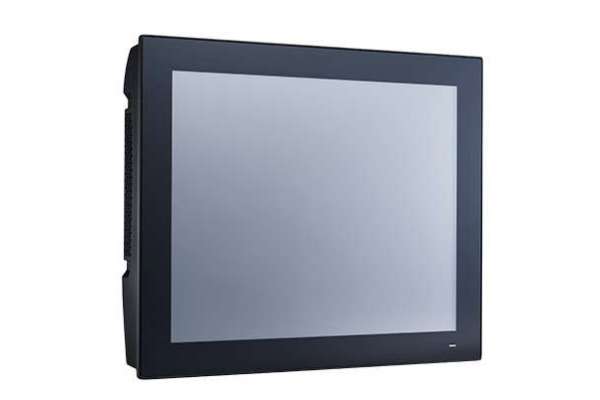

The PPC-6191C, a panel PC chassis with 19" TFT LED screen, is specifically designed for Mini-ITX motherboards, which supports a diverse range of Mini-iTX motherboards in fulfilling customer requirements for varied functionalities and price concern. PPC-6191C is a true flat bezel which meets market trends demanding for a stylish look and provides additional backup port and expansion slot in order to accommodate customers’ various application needs.

  • 19" true-flat panel PC with resistive touch
  • Supports certified mini-ITX motherboards (up to 45W TDP processor)
  • PCI or PCIe expansion slots
  • Front-facing power status LED indicators
  • IP65-rated front panel
  • Optional VESA mount module

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-6191C-RMAE Промисловий панельний комп'ютер (шасі) Advantech PPC-6191C 19“ Panel PC coMpatible Chassis, 250W AC PSU  48 179,0
PPC-6191C-RTAE Промисловий панельний комп'ютер (шасі) Advantech PPC-6191C 19“ Panel PC opTimized Chassis, 250W AC PSU  43 929,5

Additional information

Part Number

PPC-6191C-RMAE PPC-6191C-RTAE

Storage

2 x 2.5" SATA HDD bay

1 x 2.5" SATA HDD bay

I/O ports

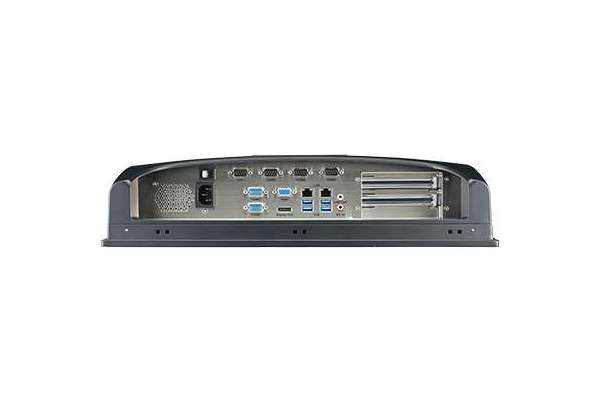

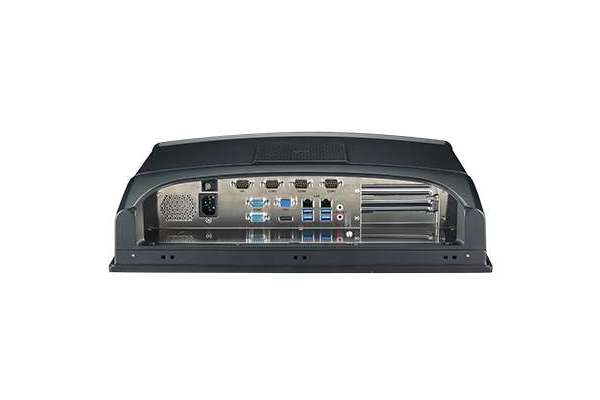

1 x AC inlet;1 x Power Switch;1 x DP port (input, for connecting M/B and LVDS panel);1 x USB 2.0 (input, for connecting M/B and touch controller);Reserved opening:Based on M/B's specific

1 x AC inlet;1 x Power Switch;Reserved opening:Based on M/B PPC-MB-8260AE's specific

Expansion

1 x PCIe x4 or 1 x PCI (in the accessory box)

1 x PCIe x4 or 2 x PCI (in the accessory box);2 x PCIe x1 (optional);1 x PCIe x1 + 1 x PCI (optional)

Speaker

2 X 1W

2 X 1W

Fan

2 x 12V, 60 x 60 x 15 mm

2 x 12V, 60 x 60 x 15 mm

Physical Characteristics

Dimensions

454 x 379.8 x 107.5 mm (17.9" x 15" x 4.2")

454 x 379.8 x 107.5 mm (17.9" x 15" x 4.2")

Weight

5.8 Kg(12.81b)

5.8 Kg(12.81b)

OS Support
OS Support

According to motherboard specifications

According to motherboard specifications

Power Supply

Input Voltage

100 - 240 Vac, 50/60Hz, 4-2A

100 - 240 Vac, 50/60Hz, 4-2A

LCD Display

Display Type

19" TFT LED Panel

19" TFT LED Panel

Max. Resolution

1280 x 1024

1280 x 1024

Viewing Angle (H/V°)

85 (left), 85 (right), 80 (up), 80 (down)

85 (left), 85 (right), 80 (up), 80 (down)

Luminance (cd/m2)

350

350

Contrast Ratio

100:1

100:1

Backlight Life

50, 000 hrs

50, 000 hrs

Touch Screen

Type

Analog Resistive 5-wire/Projected capacitive type (optional)

Analog Resistive 5-wire/Projected capacitive type (optional)

Light transmission

80+/-5%

80+/-5%

Controller

USB interface

USB interface

Durability (Touches)

35 million

35 million

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F);0 ~ 45 °C (32 ~ 113 °F) with VESA mount module

0 ~ 50 °C (32 ~ 122 °F);0 ~ 45 °C (32 ~ 113 °F) with VESA mount module

Storage Temperature

-30 ~ 60°C (-22 ~ 140°F)

-30 ~ 60°C (-22 ~ 140°F)

Relative Humidity (Non-condensing)

10 ~ 95% @ 40°C (non-condensing)

10 ~ 95% @ 40°C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27

Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27

Vibration

Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with HDD, IEC 60068-2-64 compliant

Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with HDD, IEC 60068-2-64 compliant

EMC

CE, FCC Class A

BSMI,CE,FCC,Class A

Safety

CB,CCC,UL

BSMI,CB,CCC,UL

Front Panel Protection

IP65 Compliant

IP65 Compliant
