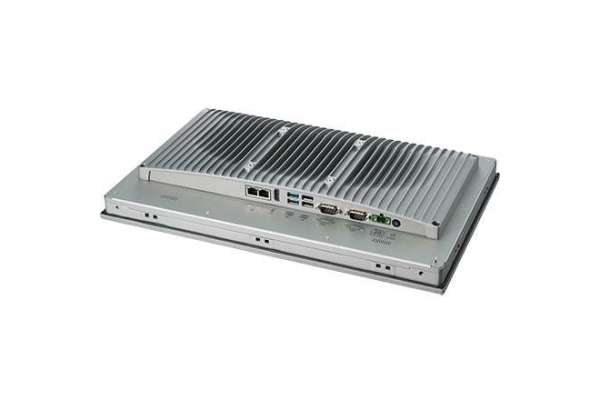

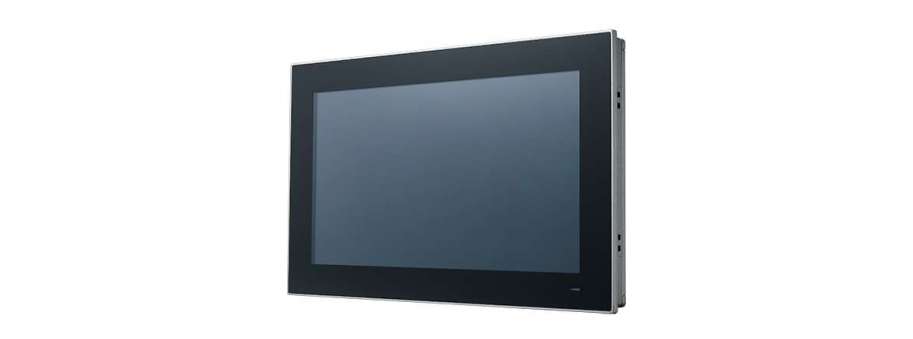

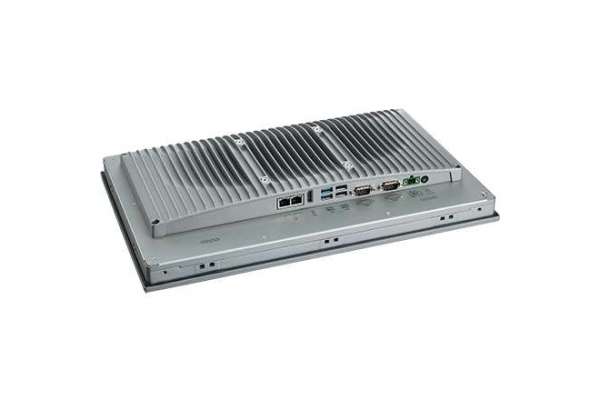

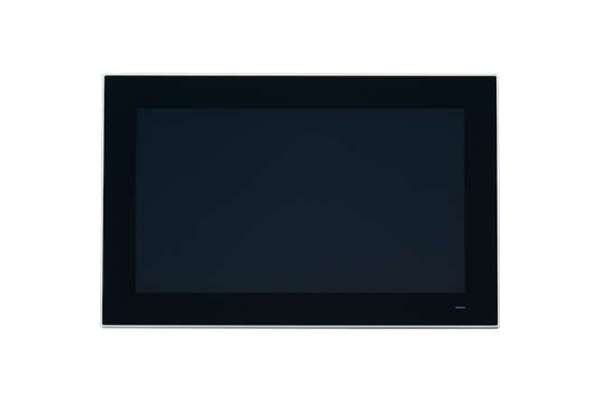

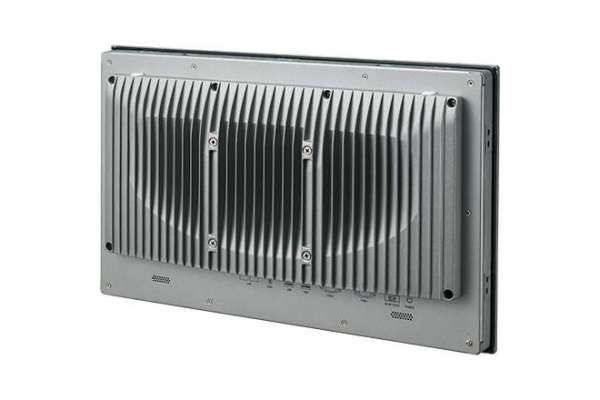

Industrial All-in-one Fanless Panel PC 15.6" with Intel® Core™ i5-6300U Processor Advantech PPC-3151SW
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| PPC-3151SW-P65A | Промисловий панельний комп'ютер Avantech PPC-3151SW, 15.6", Intel Core i5-6300U, Fanless Panel PC with multi-touch projected capacitive control | 111 996,0 | |
| PPC-3151SW-P65B | Промисловий панельний комп'ютер Avantech PPC-3151SW, 15.6", Intel Core i5-6300U, Fanless Panel PC with multi-touch projected capacitive control | 111 996,0 | |
| PPC-3151SW-P65AU | Промисловий панельний комп'ютер Avantech PPC-3151SW, 15.6", Intel Core i5-6300U, Fanless Panel PC with multi-touch projected capacitive control | 117 249,0 | |
| PPC-3151SW-P65BU | Промисловий панельний комп'ютер Avantech PPC-3151SW, 15.6", Intel Core i5-6300U, Fanless Panel PC with multi-touch projected capacitive control | 111 996,0 | |
| PPC-3151SW-P63A | Промисловий панельний комп'ютер 15.6" Advantech PPC-3151SW, Intel Core i3-6100U, Fanless Panel PC with multi-touch projected capacitive control | 93 191,7 | |
| PPC-3151SW-P63B | Панельний комп'ютер Advantech PPC-3151SW Intel Core i3-6100U Fanless 15.6" Panel PC | 93 191,7 | |
| PPC-3151SW-P67A | Промисловий панельний комп'ютер Advantech Intel Core i7-6600U Fanless 15.6" Panel PC | 138 111,0 | |
| PPC-3151SW-P67B | Панельний комп'ютер Advantech PPC-3151SW Intel Core i7-6600U Fanless 15.6" Panel PC | 138 111,0 |
The PPC-3151SW is an all-in-one light panel PC with a wide format 15.6" FHD industrial-grade LCD. Powered by 6th generation Intel® Core™ i processor, PPC-3151SW provides excellent performance, memory, graphics, and peripheral I/O support in a compact, fanless, embedded system. With a high durability
- Industrial-grade 15.6" FHD LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control
- High-performance, fanless 6th generation Intel® Core™ i processor
- Up to 16 GB DDR4 SDRAM
- Compact, fanless design with aluminum alloy enclosure
- IP65-rated front panel
- Supports dual displays (1 x external HDMI)
- Supports full-size mini PCIe expansion
- Supports USB 3.0
Additional information
| Part Number | PPC-3151SW-P65A |
Processor System |
|
| CPU | 6th gen Intel® Core™ i5-6300U dual core (i7-6500U/i3-6100U optional) |
| Frequency | 2.4 GHz; 3.0 GHz with turbo boost |
| 2nd Cache Memory | 3 MB |
| Memory | 1 x SODIMM DDR4 1866/2133 MHz (max. 16 GB) (1.2 V) |
| Storage 1 | 1 x 2.5" SATA bay |
| Network (LAN) | 2 x 10/100/1000 Mbps Ethernet (Intel I211-AT; Intel I219LM) |
| I/O Ports | 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS) 2 x USB 3.0, 2 x USB 2.0 |
| Expansion Slots | 1 x Full size Mini PCIe slot |
| Watchdog Timer | 255 timer levels; setup by software |
Physical Characteristics |
|
| Dimensions | 419.7 x 269 x 58.6 mm (16.52 x 10.59 x 2.3 in) |
| Weight | 6.8 kg (14.9 lb) |
OS Support |
|
| OS Support | WIN7 / WIN 8.1 / WIN 10 / Linux /WEC7 |
Power Supply |
|
| Input Voltage | 12-24 VDC |
| Power Consumption | 75W |
LCD Display |
|
| Display Size | 15.6" |
| Viewing Angle (H/V°) | 89 (left), 89 (right), 89 (up), 89 (down) |
| Max. Resolution | 1920 x 1080 |
| Luminance (cd/m2) | 300 |
| Contrast Ratio | 5000:1 |
| Backlight Life | 50, 000 hrs |
Touchscreen |
|
| Touch Type | 10-point multi-touch projected capacitive |
| Light Transmission | 90% ± 3% |
| Controller | USB interface |
Environment |
|
| Operating Temperature | 0 ~ 50° C (32 ~ 122° F) for SSD, 0~45° C for HDD |
| Storage Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
| Shock | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
| Vibration | Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64 |
| EMC | CE, FCC Class B, BSMI |
| Safety | CB, CCC, BSMI, UL |
| Front Panel Protection | IP65 Compliant |
