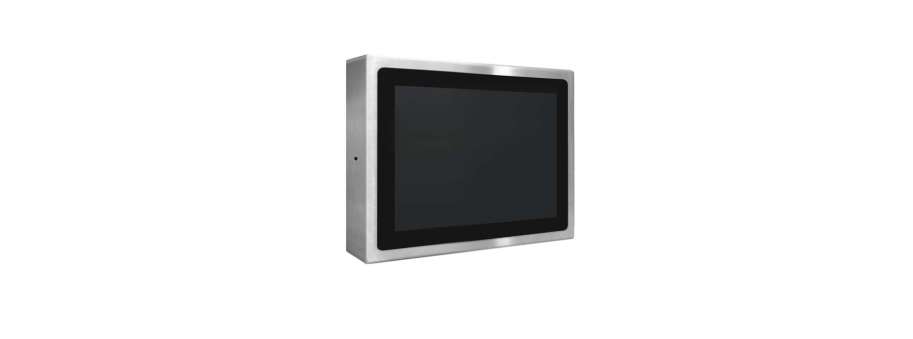

12.1'' Stainless Steel P-cap Panel PC ELGENS with Intel 7th Gen Core™ i7/i5/i3, 6 sides IP66 Metal Waterproof connectors, DC 12V Power Input LPC-P121S-LMx

  • 12.1" LCD with 1024*768 resolution
  • 350nits LED Backlight
  • DC 12V Power Input
  • Metal Waterproof connectors at bottom side
  • 6 Sides IP66
  • 20~60°C Operating Temp

Additional information

System

Processor Intel 7th Gen Core™ i7/i5/i3
System Memory DDR3L SO-DIMM, up to 8 GBDDR3L SO-DIMM, up to 8 GB
External I/O Port
  • 1 x USB 2.0 Type A
  • 1 x RJ45 GbE LAN
  • 1 x HDMI
  • 1 x RS-232/422/485 (COM1)
  • 1 x 3-Pin Power Input
Storage
  • 1 x CFast Slot
  • 1 x mSATA (full size, share with mini-PCIe)
Expansion 2 x MiniPCIe Slot ( 1 share with mSATA)
Operating System Windows 10 IoT Enterprise LTSC

LCD

Display Type 12″ TFT-LCD
Max. Resolution 1024*768
Max. Color 16.7 M
Luminance (cd/m2) 350nits
View Angle 80 / 80 / 80 / 80
Backlight Lifetime 30,000hrs

Touch Screen

Type USB P-Cap Touch

Power Requirement

Power Input DC 12V Power Input

Mechanical

Construction SUS304 Stainless Steel Case
IP Rating 6 sides IP66
Mounting VESA Mount, Yoke Mount
Dimension TBC

Environment

Operating Temp. -20~60 °C,IEC-60068-2-1/2/14
Storage Temp. -20~60 °C
Humidity 10~90% @40 °C, non-condensing
EMC FCC / CE Class A Certification
Vibration 1.5 Grms @10~500Hz, IEC-60068-2-64
