15.6" Panel Computer SPC-815

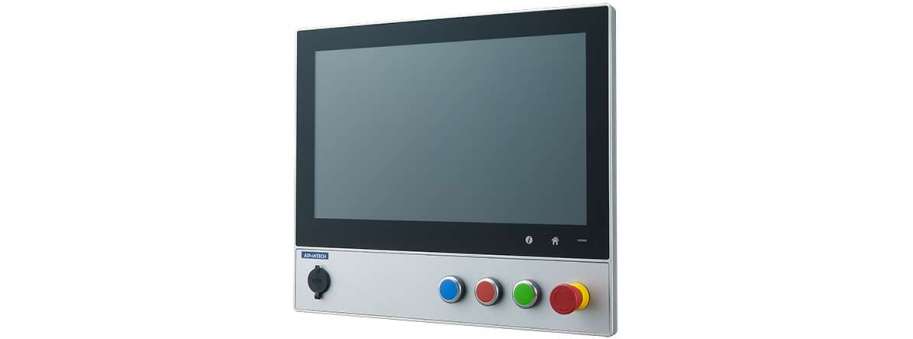

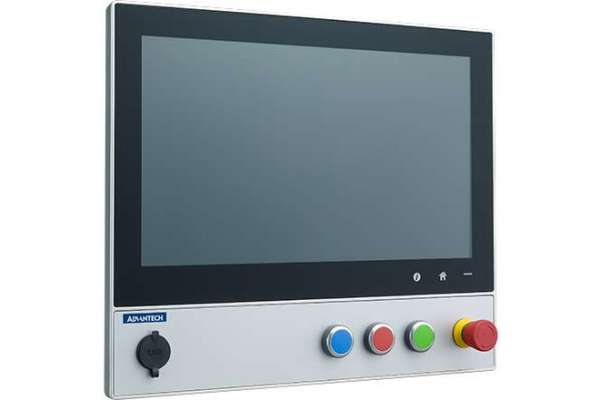

15.6" HD TFT LED LCD Standalone Multi-Touch Panel Computer Advantech SPC-815

Industrial Computer >> Industrial Panel PC and HMI

 Price and avalability

Manufacturer: Advantech Co., Ltd.

SPC-800 is an arm-mounted HMI that can be integrated with an extension unit that supports RAFI FS22+ Series pushbuttons. Designed to support diverse industrial mounting standards, such as CP 40 (Rittal) and CS-480 (Bernstein), SPC-800 provides a versatile HMI that can be installed in a variety of intelligent factories and machines. The SPC-800 is powered by an Intel® Core™ i3-6100U 2.3 GHz processor that delivers advanced graphical performance to facilitate the realization of field IoT applications. The HMI is also equipped with a silicone-free enclosure that features all-around IP65-rated protection from water and dust. Moreover, with the inclusion of an I/O cover, all cables can be hidden for a tidy appearance and simplified wiring installation.

  • 15.6" (Full) HD TFT LED LCD display
  • Intel® Core™ i3-6100U dual-core, 2.3 GHz processor
  • 16:9 widescreen with P-CAP multi-touch control
  • Built-in function keys for intuitive operation
  • Scratch-resistant touch panel with 7H surface hardness
  • Silicone-free enclosure with all-round IP65-rated protection
  • Supports CP 40 (Rittal) and CS-480 B.Flex (Bernstein) mount standards
  • Front-facing USB ensures easy maintenance
  • Supports the RAFI FS22+ Series pushbuttons

Price and avalability

Partnumber Description Price VAT incl Avalability
SPC-815-633AG Панельний комп`ютер Advantech SPC-815, захист IP65 по колу, 15,6" (1366 x 768), Intel Core i3-6100U 2.3GHz, RAM 8GB  86 869,4

Additional information

Specifications



General


Certification CCC, CE, FCC Class A, UL
Cooling System Fanless design
Dimensions (W x H x D)

SPC-815:

402.19 x 333.19 x 67 mm/15.83 x 13.11 x 2.63 in (without flange for arm mount)

402.19 x 333.19 x 160 mm/15.83 x 13.11 x 6.29 in (with flange for arm mount)

SPC-821:

546.69 x 420.34 x 67 mm/21.52 x 16.54 x 2.63 in (without flange for arm mount)

546.69 x 420.34 x 160 mm/21.52 x 16.54 x 6.29 in (with flange for arm mount)

Enclosure
  • Front bezel: Die-cast aluminum alloy
  • Rear housing: Die-cast aluminum alloy
  • Front push button bracket : metal sheet

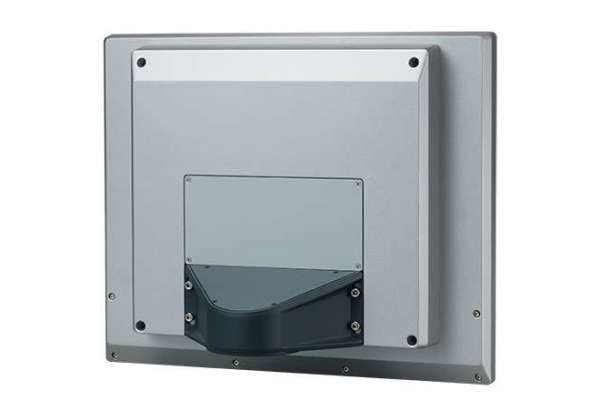

Mount Options
  • Pole Mount : Supports Rittal CP40 and Bernstein
  • CS-480 B.Flex arm system dimension
  • VESA Mount (Optional)
OS Support Microsoft® Windows 10 Enterprise LTSB
Power Consumption 35 W Typical, Max. 60 W Typical
Power Input 24 VDC
Weight (Net)
  • 21.5": 10.6 kg/23.3 lb
  • 15.6": 8.2kg/18.1 lb

System


CPU

Intel® Skylake U-series Processor

Intel® Core™ i3-6100U, 2.3 GHz i7-6600U,

2.6 GHz (optional) i5-6300U,

2.4 GHz (optional) Celeron® 3955U,

2.0 GHz (optional)

Memory 8 GB SODIMM DDR3L SDRAM, up to 16 GB RAM
LAN 2 x 10/100/1000 BASE-T
Expansion Slots 1 x Full-sized mini PCIe (optional)
Storage 1 x 2.5" SATA HDD bracket
I/O
  • 1 x USB 2.0 (front)
  • 2 x USB 3.0
COM Port 2 x 2 x RS-232/422/485 (optional)

LCD Display


Display Type
  • 21.5" Full HD TFT LED
  • 15.6" HD TFT LED (FHD optional)
Display Size
  • 21.5"
  • 15.6"
Max. Resolution
  • 21.5": 1920 x 1080
  • 15.6": 1366 x 768
Max. Colors 16.7 M
Luminance 250 (21.5")/400 cd/m2 (15.6")
Viewing Angle (H/V)
  • 21.5": 178°/178°
  • 15.6": 170°/130°
Backlight 50,000 hr lifetime

Touchscreen


Light Transmission ≥88%
Resolution 4096 x 4096 dots
Type Projected capacitive

Environment


Humidity 10 ~ 95% RH @ 40 °C/104 °F, non-condensing (tested for 48 hrs)
Ingress Protection All-round IP65 rating
Operating Temperature 0 ~ 55 °C (32 ~ 131 °F)
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Vibration Protection With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
