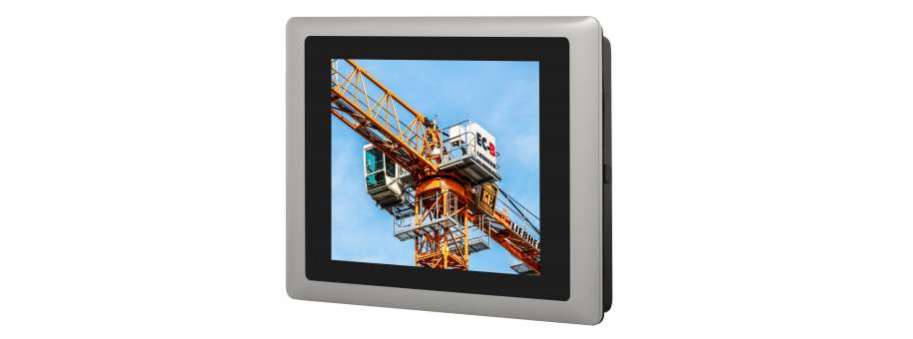

8.4" TFT-LCD Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor Cincoze CS-108/P1000

Price and avalability

Partnumber Description Price VAT incl Avalability
CS-108C-OB-R10/P1001-R10 Модульний панельний комп'ютер Cincoze CS-108C-OB-R10/P1001-R10, 8.4" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with Intel Atom E3845 Quad Core Processor, P-Cap. Touch and Optical Bonding  71 249,3
CS-108C-OB-R10/P1001E-R10 Модульний панельний комп'ютер Cincoze CS-108C-OB-R10/P1001E-R10, 8.4" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with Intel Atom E3845 Quad Core Processor, P-Cap. Touch 2x Universal I/O Bracket and Optical Bonding  72 652,8
CS-108C-R10/P1001-R10 Модульний панельний комп'ютер Cincoze CS-108C-R10/P1001-R10, 8.4" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with Intel Atom E3845 Quad Core Processor and P-Cap. Touch  80 083,2
CS-108C-R10/P1001E-R10 Модульний панельний комп'ютер Cincoze CS-108C-R10/P1001E-R10, 8.4" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with Intel Atom E3845 Quad Core Processor, P-Cap. Touch and 2x Universal I/O Bracket  81 651,8

CS-108/P1000 Series is a 8.4" TFT-LCD sunlight readable touch panel PC offering 1,600 nits ultra high brightness and 800 x 600 (SVGA) resolution. The system is equipped with Intel® Atom® E3845 processor and provides extensive I/O including 2x GbE, 4x USB, 2x RS232/422/485, 4x DI/4x DO, 1x VGA and 1x DisplayPort. It also supports 1x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 2 types of storage devices including 2.5" SATA HDD and CFast. The accessible design of these storage devices allows quick data access and easy maintenance. CS-108/P1000 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime. Furthermore, CS-108/P1000 Series is a truly rugged display system supporting wide range operating temperature (-20°C to 70°C), IP65 dust/water proof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.

  • 8.4” TFT-LCD with Ultra High Brightness up to 1,600 nits and 800 x 600 (SVGA) Resolution
  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • Supports 1x DDR3L SO-DIMM Socket, up to 8 GB
  • 1x 2.5” SATA Drive Bay, 1x CFast Card and 1x SIM Card Socket
  • 2x GbE LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
  • 1x Mini-PCIe Expansion Socket for Wireless and I/O Expansion
  • Wide Range Operating Temperature -20°C to 70°C
  • Designed with Aluminum Die-casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
  • Convertible Display System (CDS) Technology Supported

Additional information

Display

  • LCD Size: 8.4" (4:3)
  • Max. Resolution: 800 x 600
  • Brightness (cd/m2): 1600
  • Contrast Ratio: 600 : 1
  • LCD Color: 16.2M
  • Pixel Pitch (mm): 0.213 (H) x 0.213 (V)
  • Viewing Angle (H-V): 160 / 140
  • Backlight MTBF: 50000 hrs (LED Backlight)

Touch

Projected Capacitive Touch
Processor System Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz with AMI 64Mbit SPI BIOS
Memory 1x 204-Pin SO-DIMM DDR3L 1066/ 1333MHz (un-buffered and non-ECC), max. up to 8GB
I/O Ports
  • 1x VGA
  • 1x DisplayPort
  • 1x USB 3.0
  • 3x USB 2.0
  • 2x DB9 for COM1~2, Support RS232/422/485 with Auto Flow Control
  • 1x Line-out
  • 1x 4 Isolated DI & 4 Isolated DO Port
  • 1x Mic-in
  • 1x Power Switch
  • 1x Reset Button
  • 1x AT/ATX Switch
Expansion
  • 1x Full-size Mini PCIe Socket for Wi-Fi / GSM / Expansion Module
  • 2x Universal I/O Brackets [CS-108C/P1001E]
Other Features

Watchdog Timer: Software Programmable Supports 256 Levels System Reset

Audio: AMP 2W + 2W (Internal Speaker)

OSD Function: LCD On/Off, Brightness Up/Down

Ethernet 2x Intel® i210 GbE LAN Port, Support Wake-on-LAN and PXE
Storage
  • 1x External 2.5" SATA Drive Bay
  • 1x External CFast Socket
  • 1x External SIM Card Socket
Power
  • Support AT, ATX Mode
  • 1x 3-pin Terminal Block Connector with Power Input 9~48VDC
  • 1x Optional AC/DC 12V/5A, 60W Power Adapter
Physical

Dimensions (WxDxH, mm):

CS-108C/P1001: 262 x 186.2 x 65 mm

CS-108C/P1001E: 262 x 186.2 x 87.5 mm

Weight:

CS-108C/P1001: 2.92 kg

CS-108C/P1001E: 3.12 kg

Front Panel Construction: Flat Rugged Aluminum Die-casting Bezel
Mounting: Panel / VESA / *Rack Mounting (*with optional mounting kit)
Environment
  • Operating Temperature: Ambient with air flow: -20°C to 70°C (with Industrial Grade Peripherals)
  • Storage Temperature: -20°C to 70°C • Relative Humidity: 85% RH @ 40°C (non-condensing)
  • Shock: Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
  • Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
  • IP Level: IP 65 Compliant Front Panel
  • EMC: CE, FCC Class A
Protection
  • Reverse Power Input Protection
  • Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
  • Over Current Protection: 20A
  • ESD Protection: +/-8kV (air), +/-4kV (contact)
  • Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50µs waveform)
Operating System
  • Windows® 10
  • Windows® 8.1
  • Windows® 7
Certification
  • CE
  • FCC Class A
