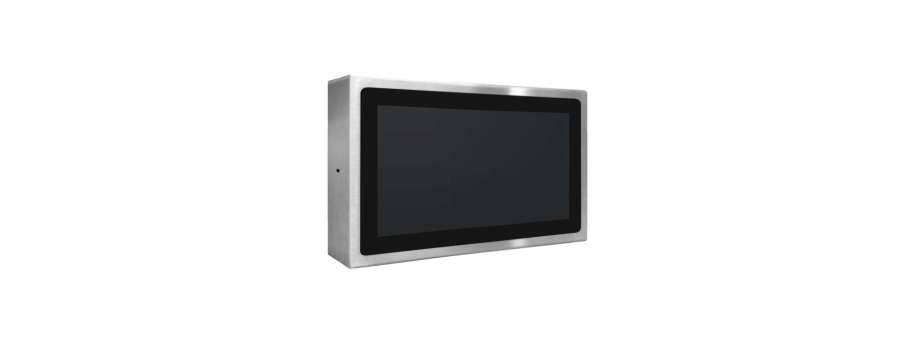

17.3" Stainless Steel P-cap Panel PC with Intel 7th/6th Gen KabyLake-U/Skylake-U Core™ i7/i5/i3 ELGENS LPC-P173W-LP

Price and avalability

Partnumber Description Price VAT incl Avalability
LPC-P173W-LPK3 Панельний комп'ютер Eldgens 17.3" Stainless P-cap Touch Panel PC, Kabylake-U i3-7100U, with -20~60 degrees operating temp, 6 sid  138 957,0
LPC-P173W-LPK5 Панельний комп'ютер Eldgens 17.3" Stainless P-cap Touch Panel PC, Kabylake-U i5-7300U, with -20~60 degrees operating temp, 6 sid  159 097,0

17.3" Stainless Steel P-cap Panel PC with Intel 7th/6th Gen KabyLake-U/Skylake-U Core™ i7/i5/i3, 6 sides IP66 Waterproof Feature and Wide Range Power Input

  • York / Desk / Vesa Mounting
  • 17.3" P-cap Flat Bezel
  • DC 12~24V Wide Range Power Input
  • 1920*1080 Resolution
  • Bottom Side M12 Plastic Connector
  • M12 Plastic Waterproof Connectors
  • Stainless Steel 316 Food Grade

Additional information

System

Processor 7th/6th Gen KabyLake-U/Skylake-U Core™ i7/i5/i3
System Memory DDR4 2133MHz SO-DIMM, up to 16 GB
External I/O Port
  • 1 x GIGA LAN External Waterproof cables by 1.5 meters (the end side is male RJ45)
  • 1 x USB 2.0 External Waterproof cables by 1.5 meters (the end side is female USB 2.0)
  • 1 x Power External Waterproof cables by 1.5 meters (the end side is 2 wire : ground & + )
  • 1 x COM (1 x RS-232/422/485) External Waterproof cables by 1.5 meters
  • 1 x HDMI (w/o Audio)
Storage
  • 2 x SATA3 (6.0Gb/s)
  • 1 x mSATA (full size mini-PCIe)
Operating System Windows 7 (32/64bit) (Sky Lake-ULT Only)Windows 8.1 (64bit) Windows 10 (64bit)
Expansion 2 x MiniPCIe Slot

LCD

Display Type 17.3" TFT LCD
Max. Resolution 1920*1080
Max. Color 16.7M
Luminance 400nits
View Angle 80/80/60/80
Backlight Lifetime 30,000 hours

Power Requirement

Power Input

M12 Power Input DC 12~24V Wide Range Power Input

Touch Screen

Type 17.3" P-cap USB interface

Environment

Operating Temp -20~60 °C,IEC-60068-2-1/2/14
Storage Temp -20~60 °C
Humidity 10~90% @40 °C, non-condensing
EMC FCC / CE Class A Certification, CE Class B Compliant
Vibration 1.5 Grms @10~500Hz, IEC-60068-2-64

Mechanical

Construction Stainless Steel case
IP Rating IP66 with 6 sides
Mounting VESA
Dimension TBC
