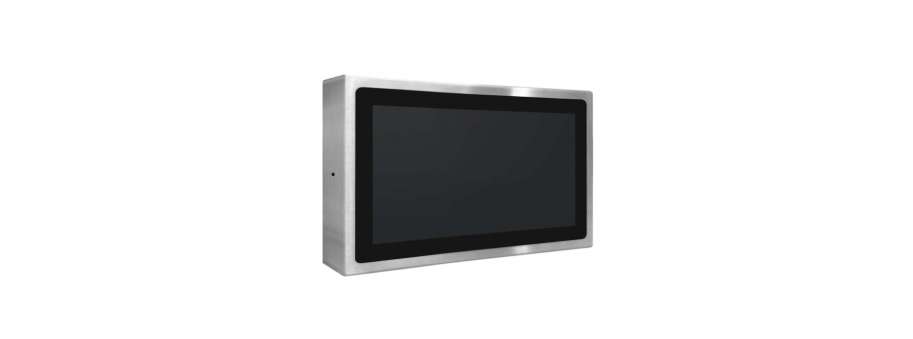

18.5" Stainless Steel P-cap Panel PC with Intel 7th/6th Gen KabyLake-U/Skylake-U Core™ i7/i5/i3, 6 sides IP66 ELGENS LPC-P185W
18.5" Stainless Steel P-cap Panel PC with Intel 7th/6th Gen KabyLake-U/Skylake-U Core™ i7/i5/i3, 6 sides IP66 Waterproof Feature and Wide Range Power Input
- York / Desk / Vesa Mounting
- 18.5" P-cap Flat Bezel
- DC 12~24V Wide Range Power Input
- 1920*1280 Resolution
- Bottom Side M12 Plastic Connector
- M12 Plastic Waterproof Connectors
- Stainless Steel 316 Food Grade
Additional information
System |
|
| Processor | 7th/6th Gen KabyLake-U/Skylake-U Core™ i7/i5/i3 |
| System Memory | DDR4 2133MHz SO-DIMM, up to 16 GB |
| External I/O Port |
|
| Storage |
|
| Operating System | Windows 7 (32/64bit) (Sky Lake-ULT Only)Windows 8.1 (64bit) Windows 10 (64bit) |
| Expansion | 2 x MiniPCIe Slot |
LCD |
|
| Display Type | 18.5" TFT LCD |
| Max. Resolution | 1920*1280 |
| Max. Color | 16.7M |
| Luminance | 350nits |
| View Angle | 89/89/89/89 |
| Backlight Lifetime | 30,000 hours |
Power Requirement |
|
| Power Input |
|
| Touch Screen | |
| Type | 18.5" P-cap USB interface |
Environment |
|
| Operating Temp | -20~60 °C，IEC-60068-2-1/2/14 |
| Storage Temp | -20~60 °C |
| Humidity | 10~90% @40 °C, non-condensing |
| EMC |
|
| Vibration | 1.5 Grms @10~500Hz, IEC-60068-2-64 |
Mechanical |
|
| Construction | Stainless Steel case |
| IP Rating | IP66 with 6 sides |
| Mounting | VESA |
| Dimension | TBC |
