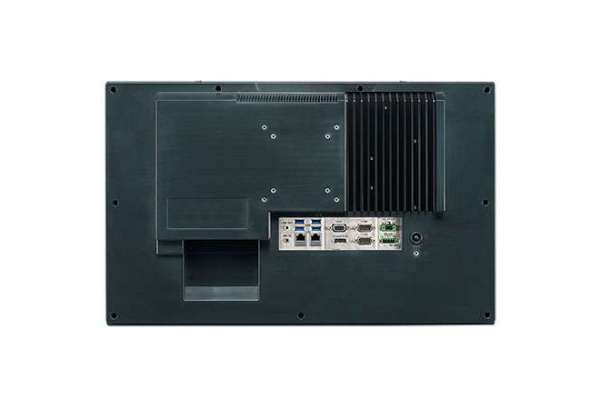

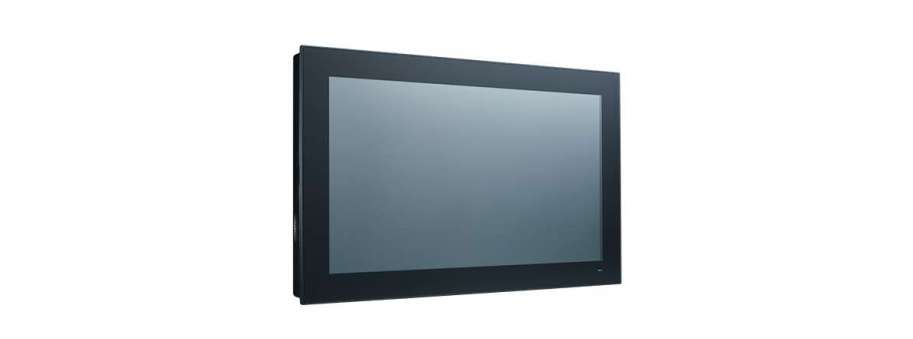

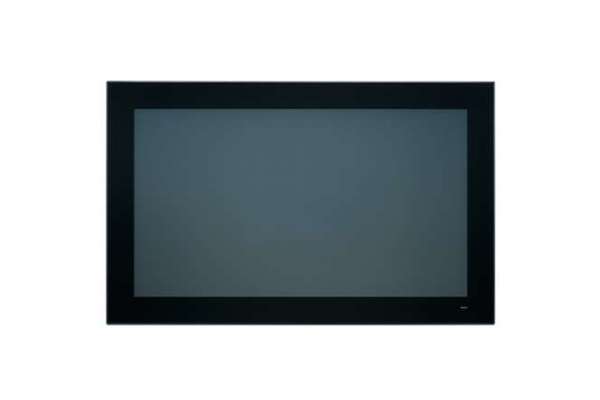

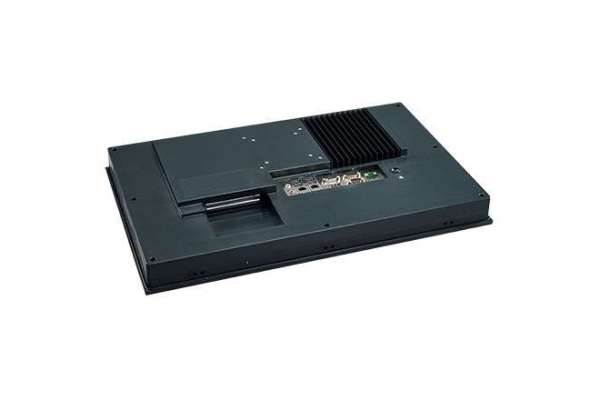

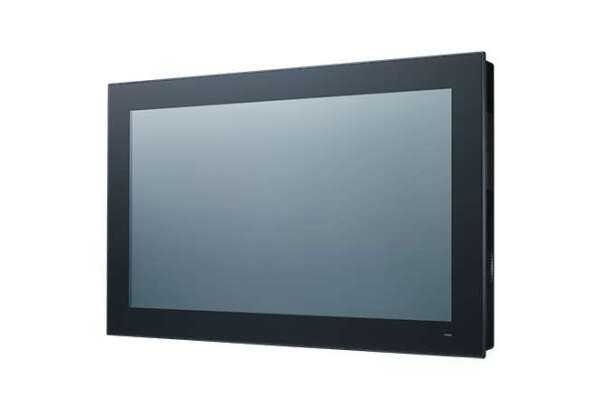

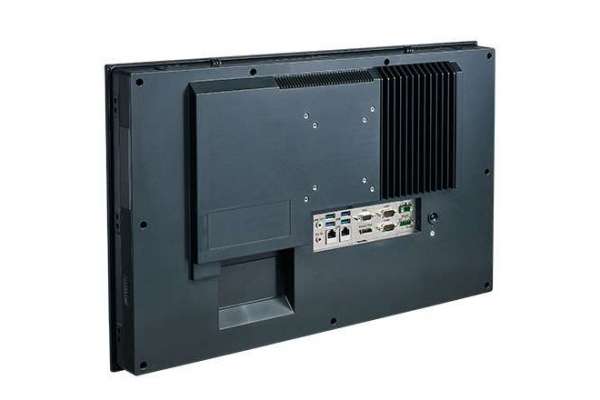

21.5" Fanless Widescreen PC with Intel® Core™ i5-7300U Processor Advantech PPC-3211W
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| PPC-3211W-P75A | Панельний комп'ютер 21.5" Advantech PPC-3211W, TFT Panel PC, Процесор Intel Core i5-7300U | 160 322,0 | |
| PPC-3211W-P75AO | Промисловий панельний комп'ютер Advantech 21.5" PPC-3211W-P75A w/o audio function | 138 149,0 | |
| PPC-3211W-P77AU | Промисловий панельний комп'ютер Advantech 21.5" TFT Panel PC, Intel core i7-7600U | 190 820,0 |
PPC-3211W is a new generation industrial interactive panel PC with a 21.5" TFT full HD LCD 1920 x 1080 resolution, which features a flat, sleek design to greatly reduce maintenance
effort. Pre-installed Intel® Core™ i processor and designed fanless architecture, PPC-3211W provide high performance and reliable system for factory automation or variety of industrial
applications. Furthermore, with the provision of multiple I/O, dual Intel® Gigabit ethernet, PCI/PCIe expansion, PPC-3211W ensures easy integration and connectivity.
- 21.5" true-flat Full HD LCD panel with projected capacitive touchscreen,
- anti-glare coating
- Intel® Core™ i5-7300U(default); i7-7600U/i3-7100U(optional) processor
- with fanless system design
- Supports PCIe x4 or PCI expansion
- 1 x isolated RS-422/485 with auto flow
- Wide input power range (9 ~ 32 VDC)
- Dual Gigabit Ethernet with IEEE1588 support
- 3 x Independent displays
- 1 x M.2 bay (2242) for storage only
- 1 x TPM 2.0 internal support (optional)
- Supports VESA 75/100 mounting interface
Additional information
| PPC-3211W-P75A | |
System |
|
| CPU | Intel® Core™ i5-7300U dual core (default); i7-7600U/i3-7100U (optional) |
| Frequency | 2.6 GHz, up to 3.5 GHz with turbo |
| L2 Cache | 3 MB |
| Memory | 1 x SODIMM DDR4 1866/2133 MHz, (max. 16 GB) |
| Storage | 2 x 2.5" SATA bay (supports Intel RAID) 1 x M.2 bay (size: 22 x 42 mm, socket 2 B key, for storage only) |
| Network (LAN) | 2 x 10/100/1000 Mbps Ethernet (Intel® I211-AT; Intel® I219LM) |
| I/O | 2 x RS-232, 1 x RS-422/485 with 1K VDC isolation Either 2 x RS-232 or 1 x RS-232 + 1 x GPIO(TTL, 8 pin programmable)) on right side (optional module) 4 x USB 3.0 1 x Line-out, 1 x Mic-in 1 x DB15 VGA 1 x Display Port (1.2) 1 x TPM 2.0 internal (optional) |
| Expansion | 1 x Mini PCIe 1 x PCIe x 4 (default); 1 x PCI (in the accessory box) |
| Watchdog Timer | 255 timer levels, set up by software |
| Speaker | 2 x 1W |
Physical Characteristics |
|
| Dimensions | 558.4 x 349.8 x 63.8 (22.0 x 13.7 x 2.5 in) |
| Weight | 7.7 kg (17.1 lb) |
OS Support |
|
| OS Support | Microsoft® Windows 10 (64-bit), Win 10 LTSC, Linux |
Power Consumption |
|
| Input Voltage | 9 ~ 32 VDC |
| Power Consumption | i5-7300U 75W (Burn-in test 8.1 in Windows 10 64bit) |
LCD |
|
| Display Type | 21.5" TFT LCD (LED backlight) |
| Max. Resolution | 1920 x 1080 |
| Viewing Angle | 89 (Left), 89 (Right), 89 (Up), 89 (Down) |
| Luminance (cd/m2 ) | 300 |
| Contrast Ratio | 5000 |
| Backlight Lifetime | 50,000 hr (min.) |
Touchscreen |
|
| Touch Type | Multi-touch projected capacitive |
| Light Transmission | 88 % ± 2 % |
| Controller | USB interface |
Environment |
|
| Operating Temperature | 0 ~ 50 °C (32 ~ 122 °F) |
| Storage Temperature | -20 ~ 60 °C (-4 ~ 140 °F) |
| Relative Humidity | 10 ~ 95% @ 40 °C (Non-Condensing) |
| Shock | Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27 |
| Vibration | Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD, Follows IEC 60068-2-64 |
| EMC | CE, FCC Class B, BSMI |
| Safety | CB, UL, CCC, BSMI |
| Front Panel Protection | IP65 compliant |
