Wireless I/O Module WISE-4060

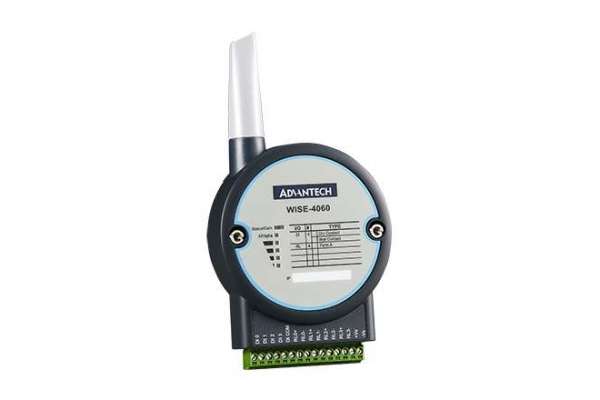

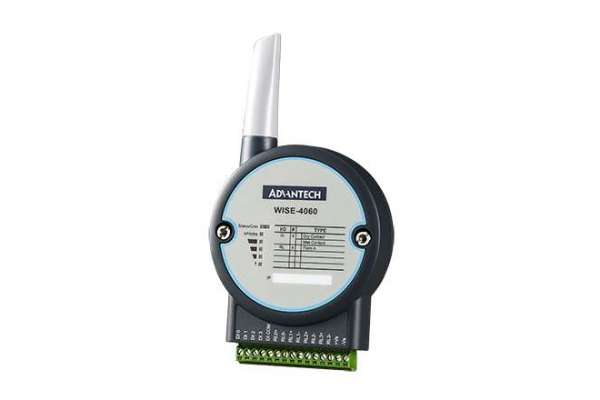

4-channel Digital Input and 4-ch Relay Output IoT Wireless I/O Module WISE-4060

Signal input/output >> IIoT equipment

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Advantech's new generation of remote I/O devices bring an IT oriented spirit to the market. With the advanced concepts of data A-P-P, data Acquisition, data Processing to data Publishing, fulfilling mobile monitoring and controlling needs under an IoT framework. Broad adoptability has made WISE a reliable source of big data which benefits users in identifying their next steps and which action to take. With intelligent processing and publishing features, the time it takes to generate insightful reports can be shortened. Thus users can quickly notice and identify possible issues and system downtime can be minimized or even avoided.

The WISE-4060, an IoT wireless I/O module with 4-channel digital input and 4-channel relay output, has an integrated Wi-Fi interface wuth AP mode and web configuration which can be accessed by mobile device directly. Data can be logged in the I/O module and then automatically pushed to the file-based cloud.

  • 4-ch Isolated Digital Input and 4-ch Isolated Relay Output
  • 2.4 GHz IEEE 802.11b/g/n WLAN
  • Supports both wireless client and server modes that can be accessed directly without AP or router
  • Supports mobile device web configuration with HTML5 without the platform limitation
  • Supports file-based cloud storage (preliminary) and local logging with RTC time stamp
  • Supports RESTful web API in JSON format for IoT integration
  • Supported Protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
  • Supports 10~30VDC power with reverse protection
  • Supports 3000Vrms isolation protection with dual watchdog timer for system and communication

Price and avalability

Partnumber Description Price VAT incl Avalability
WISE-4060-AE Модуль/плата расширения 4-ch DI and 4-ch Relay IoT Wireless I/O Module  4 174,0

Additional information

Part Number

WISE-4060-AE
Digital Input

Inverted DI Status

Support

Isolation

3,000 Vrms

Keep/Discard Counter Value when Power Off

Support

Frequency Input

0.1 ~ 3kHz

Counter Input

3kHz (32 bit + 1 bit overflow)

Channels

4-ch Dry Contact or Wet Contact

Logic level

Dry Contact 0: Open, 1: Close to DI COM; Wet Contact 0: 0 ~ 3 VDC, 1: 10 ~ 30 VDC (3 mA min.)

Digital Output
  • Insulation Resistance

1 GΩ min. @ 500 VDC

  • Output Rating (Resistive Load)

250 VAC @ 5 A, 30 VDC @ 3A

  • Pulse Output

60 operations/minute

  • Relay Off Time (Typ.)

10 ms

  • Relay On Time (Typ.)

5 ms

  • Channels

4-ch Power Relay

  • Isolation

3,000 Vrms

General

Certifications

CE, FCC, R&TTE, NCC, SRRC, RoHS

Protocol

Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT

Dimensions (W x H x D)

80 x 148 x 25 mm

Connectors

Plug-in screw terminal block (I/O and power)

Data Logger

Up to 10,000 samples with RTC time stamp

Enclosure

PC

LED Indicators

Status, Communication, Network Mode, Quality

Mounting

DIN 35 rail, wall, and stack

Real-time Clock

Yes, with battery backup

Watchdog Timer

System (1.6 second) & Communication (programmable)

Web Server

RESTful Web API in JSON format, HTML5 Configuration Interface with JavaScript & CSS3

Wireless Interface

Antenna Connector

Reverse SMA

Frequency Band

2.4GHz

IEEE Standard

IEEE 802.11b/g/n

Network Mode

Infrastructure, Limited AP

Outdoor Range

110m (L.O.S.)

Security

WPA2 Personal & Enterprise

Environment

Operating Humidity

20 ~ 95% RH (non-condensing)

Operating Temperature

-25 ~ 70°C (-13~158°F)

Storage Humidity

0 ~ 95% RH (non-condensing)

Storage Temperature

-40 ~ 85°C ( -40 ~ 185°F)

Power

Input Range

10 ~ 30 VDC

Power Consumption

2.5 W @ 24 VDC (not including I/O modules)

Protection

Power Reversal Protection
