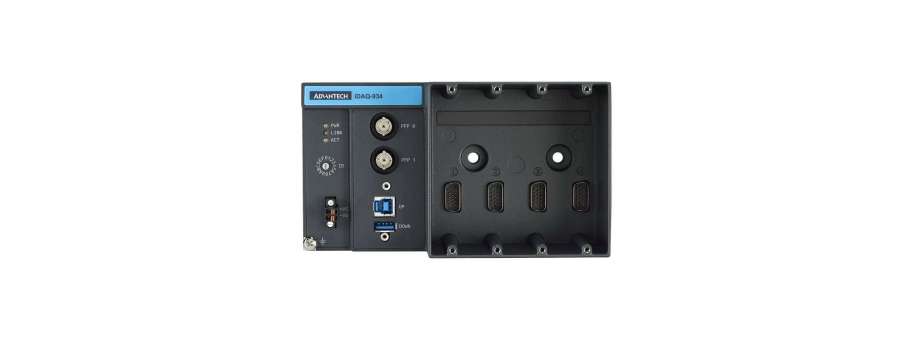

4-slot USB 3.0 Industrial DAQ Chassis Module Advantech iDAQ-934

Price and avalability

Partnumber Description Price VAT incl Avalability
IDAQ-934-AE 4-slot USB 3.0 iDAQ Chassis Module  40 981,9
  • USB 3.0 SuperSpeed
  • Built-in USB hub
  • Wide range power input
  • LED status indicators
  • Physical ID switch for multiple module identification
  • 4 iDAQ slots
  • 2 programmable function pin for timing signal (trigger, clock) input/output

Additional information

Programmable Function Pin

Channels BNC x 2
Direction Input or output, software configurable

Input level

  • Logic high: +3.5 V min.
  • Logic low: +1.5 V max.
Input protection voltage +6.5 V max, -0.5 V min.
Pull-down resistor 10 kΩ
Input signal frequency 10 MHz max.
Response time 20 ns max
Debounce filter 40 ns ~ 168 ms, software configurable
Output logic level
  • Logic high: +4.5 V min., 20 mA source max.
  • Logic low: +0.5 V max., 20 mA sink max.

USB Communication

Interface SuperSpeed USB 3.0
Data transfer rate 5 Gbps max
USB upstream port 1 port
USB downstream port 1 port

Power Requirement

Power Input 10~30 VDC
Power Consumption 24 W max., including modules and USB downstream port loads
Power consumption from USB 100 μA max.
Power connector 2-pin spring terminal

Mechanical

Module dimensions 178 x 100 x 71 mm (7.01 x 3.93 x 2.80 in.)
Weight 680 g
Installation DIN Rail/Wall Mount

Environment

Operating temperature -20 °C to 60 °C (-4 °F to 140 °F)
Storage temperature -40 °C to 70 °C (-40 °F to 158 °F)
Operating humidity 10% to 90% RH, non-condensing
Storage humidity 5% to 95% RH, non-condensing
Vibration 5Grms
Shock 30G
Indoor use only

Certification

EMC CE, FCC
Safety CB, UL
