ADAM-6000 analog input modules

Ethernet analog input modules Advantech ADAM-6015, ADAM-6017 and ADAM-6018 with MQTT, SNMP, MODBUS/TCP, P2P and GCL support

Signal input/output >> Remote input/output

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Advantech's Ethernet I/O Modules, ADAM-6000 series, accomplishes this integration easily through the latest internet technology, so that it can remotely monitor the device status more flexibly. ADAM-6000 modules are empowered by Peer-to-Peer (P2P) and Graphic Condition Logic (GCL), and can perform as standalone products for measurement, control and automation wiith Advantech's P2P and GCL technology. With the easy-to-use and intuitive graphic utility, system configurations can be done in an extremely short time. ADAM-6000 series models include Analog Input/Output Modules and Digital Input/Output Modules. ADAM-6000-D version and ADAM-6200-AE have supported the MQTT function as a new feature.

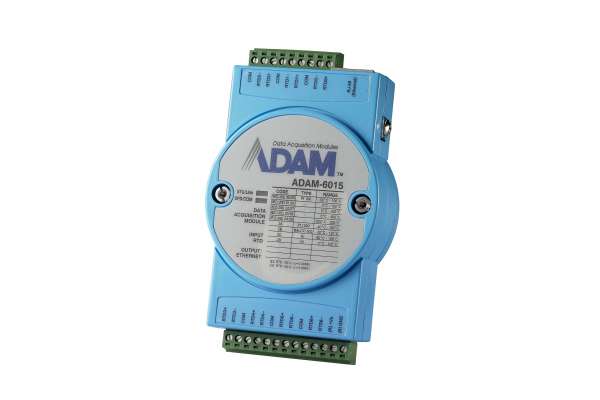

ADAM-6015 7-ch Isolated RTD Input Modbus TCP Module

  • I/O Type: 7 RTD
  • 10/100Based-T Ethernet
  • Supports multi-channel/multi-range
  • Pt 100/1000, Ni, Balco 500
  • Wiring burn-out detect function

The ADAM-6015 7-channel RTD input module accepts a wide range of RTD sensor types, including Pt100, Pt1000, Ni50, Ni508, and Balco 500 series. Multi input ranges are allowed in one module, creating a cost-effective solution. Most important of all, the ADAM-6015 supports open wiring diagnostic function which warns operators when the sensor wire has been broken. It specifically aims at building and factory temperature monitoring applications.

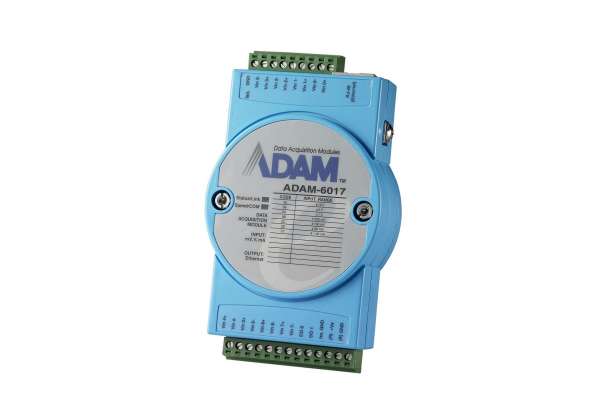

ADAM-6017 8-ch Isolated Analog Input Modbus TCP Module with 2-ch DO

  • 10/100 Mbps communication rate
  • I/O type: 8 AI / 2 DO
  • Input type: mV, V, mA
  • Provide default/customized web page
  • Provides math. Functions: Max., Min., Avg.

The ADAM-6017 is designed with 8 analog inputs and 2 digital outputs to satisfy all plant needs. Each analog channel is allowed to configure an individual range for variety of applications.

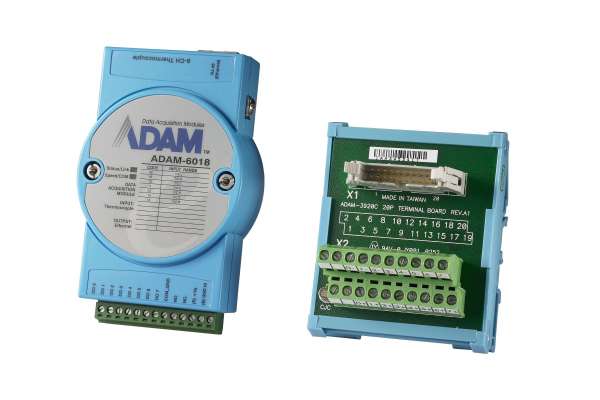

ADAM-6018 8-ch Isolated Thermocouple Input Modbus TCP Module with 8-ch DO

  • I/O Type: 8 T/C & 8 DO
  • 10/100Based-T Ethernet
  • Supports multi-channel/multi-range
  • Provides default/customized web page
  • 2,500 VDC optical isolation

The ADAM-6018 8-channel thermocouple input module is the most prevailing temperature sensor in today’s industrial automation market. In addition to 8 T/C input channels, the ADAM-6018 is also equipped with 8 digital output channels such as auxiliary alarm outputs or pure outputs. Last but not least, the ADAM-6018 comes with an external DIN-rail terminal board for wiring between the ADAM-6018 module and the field sensor. This special wiring mechanism greatly enhances the accuracy and reliability for thermocouple measurement in environmental and facility monitoring applications.

Price and avalability

Partnumber Description Price VAT incl Avalability
ADAM-6017-D Модуль ізольованого аналогового введення Advantech ADAM-6017, Ethernet, 8 AI/ 2 DO  11 263,0 Доступно
ADAM-6015-BE Модуль вводу-виводу Advantech ADAM-6000 Ethernet 7-Ch RTD Input Module  11 743,0
ADAM-6017-CE Модуль ізольованого аналогового входу 8-Ch AI/DO Module  9 914,7
ADAM-6018-BE Модуль ізольованого аналогового входу ( 8x J, K, T, E, R, S, BThermocouple) Input w/ DO Module (8 open collector)  12 830,7
