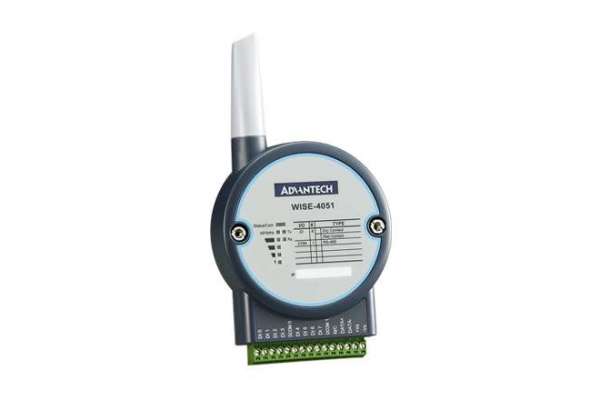

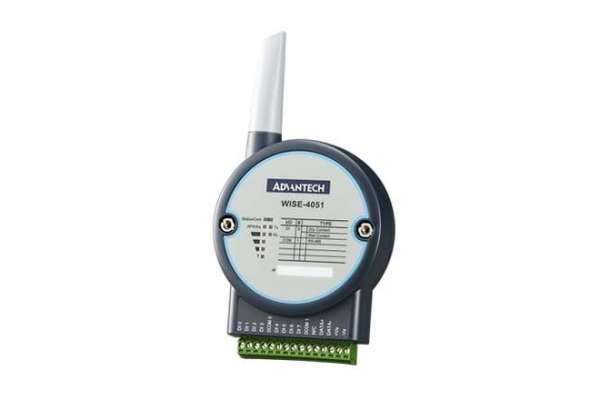

Digital Input IoT I/O Module WISE-4051

8-ch Digital Input IoT Wireless I/O Module with RS-485 Port WISE-4051

Signal input/output >> IIoT equipment

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Advantech's new generation of remote I/O & sensing devices bring an IT oriented spirit to the market. With the advanced concepts of data A-P-P, data Acquisition, data Processing to data Publishing, fulfilling mobile monitoring and controlling needs under an IoT framework. Broad adoptability has made WISE a reliable source of big data which benefits users in identifying their next steps and which action to take. With intelligent processing and publishing features, the time it takes to generate insightful reports can be shortened. Thus users can quickly notice and identify possible issues and system downtime can be minimized or even avoided.

The WISE-4000 series is an Ethernet-based wireless IoT device, integrated with IoT data acquisition, processing, and publishing functions. As well as various I/O types, the WISE-4000 series provides data pre-scaling, data logic, and data logger functions. These data can be accessed via mobile devices and be published to the cloud with security at anytime and anywhere.

  • 8-ch digital input with 1-port RS-485 for Modbus devices
  • 2.4GHz Wi-Fi reducing the wiring cost during big data acquisition
  • Easily extend the existing network by adding APs, and share existing Ethernet software
  • Supported Protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
  • Configured by mobile devices directly without installing any software or Apps
  • Zero data loss using the log function with RTC time stamp
  • Data can be automatically pushed to Dropbox or computer
  • Supports RESTful web API in JSON format for IoT integration

Price and avalability

Partnumber Description Price VAT incl Avalability
WISE-4051-AE Модуль/плата расширения 8-ch DI IoT Wireless I/O Module with RS-485 Port  5 456,8

Additional information

Part Number

WISE-4051-AE
Serial Communication

Baud Rate (bps)

1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200

Data Bits

7, 8

Parity

None, Odd, Even

Protection

15 kV ESD

Protocol

Modbus/RTU (Total 32 address by max. 8 instruction)

Serial Signal

DATA+, DATA-

Stop Bits

1, 2

Type

RS-485

Ports

1
Digital Input

Inverted DI Status

Support

Isolation

3,000 Vrms

Keep/Discard Counter Value when Power Off

Support

Frequency Input

0.1 ~ 3kHz

Counter Input

3kHz (32 bit + 1 bit overflow)

Channels

8-ch Dry Contact or Wet Contact

Logic level

Dry contact: Logic 0: Open, Logic 1: Close to GND

General

Certifications

CE, FCC, R&TTE, NCC, SRRC, RoHS

Protocol

Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT

Dimensions (W x H x D)

80 x 148 x 25 mm

Connectors

Plug-in screw terminal block (I/O and power)

Data Logger

Up to 10,000 samples with RTC time stamp

Enclosure

PC

LED Indicators

Status, Communication, Network Mode, Quality Serial Tx, Rx

Mounting

DIN 35 rail, wall, and stack

Real-time Clock

Yes, with battery backup

Watchdog Timer

System (1.6 second) & Communication (programmable)

Web Server

RESTful Web API in JSON format, HTML5 Configuration Interface with JavaScript & CSS3

Wireless Interface

Antenna Connector

Reverse SMA

Frequency Band

2.4GHz

IEEE Standard

IEEE 802.11b/g/n

Network Mode

Infrastructure, Limited AP

Outdoor Range

110m (L.O.S.)

Security

WPA2 Personal & Enterprise

Environment

Operating Humidity

20 ~ 95% RH (non-condensing)

Operating Temperature

-25 ~ 70°C (-13~158°F)

Storage Humidity

0 ~ 95% RH (non-condensing)

Storage Temperature

-40 ~ 85°C ( -40 ~ 185°F)

Power

Input Range

10 ~ 30 VDC

Power Consumption

2.2 W @ 24 VDC

Protection

Power Reversal Protection
