2xCOM 2xLAN Din-Rail Mount HDMI Input 24V DC Passive Cooling Standard T range

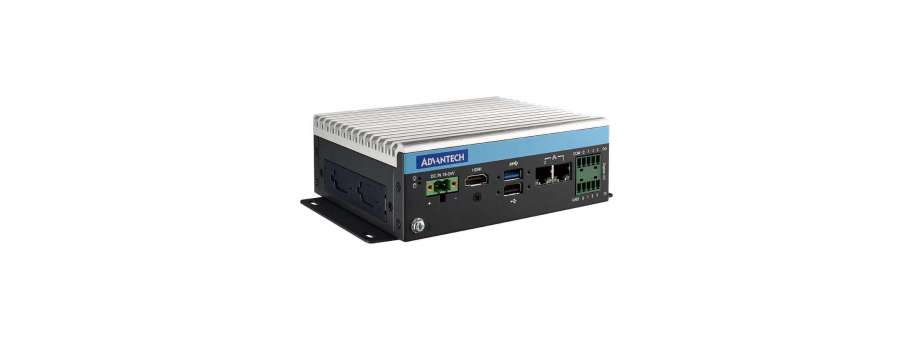

AI Inference System Based on NVIDIA® Jetson™ NANO for computer vision & video solution Advantech MIC-710AI

Price and avalability

Partnumber Description Price VAT incl Avalability
MIC-710AI-00A1 Компактний комп'ютер Advantech MIC-710AI, NVIDIA Jetson NANO AI Inference System  40 236,4
MIC-710AI-00A2 NVIDIA Jetson NANO AI sytem_NO SD  42 522,2
  • Fanless compact design
  • Embedded with NVIDIA® Jetson™ NANO up to 472 GOPS
  • Supports 2 x GbE, 1 x USB 3.0 , 1 x USB 2.0
  • Supports 1 x mPCIe, 1 x M.2 2280 (SATA interface)
  • Supports Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Devices

Additional information

Processor System

CPU Quad-core ARM A57 Complex
GPU 128-core NVIDIA Maxwell GPU
Memory 4GB LPDDR4
Flash 16G of eMMC

I/O

Ethernet 2 x 10/100/1000 Mbps
Display HDMI (Max. resolution 3840 x 2160 @ 60Hz)
USB
  • Internal: 1 x USB 2.0
  • External: 1 x USB 2.0, 1 x USB 3.0
DI/DO 4-ch DI, 4-ch DO
COM
  • Internal: 1 x RS-232 pin header
  • External: 1 x RS-232/RS-422/RS-485
OTG USB 1 x Micro USB (Internal)

Expansion

Mini PCIe 1 x mPCIe (Signal: PCIe + USB)
SIM 1 x Nano SIM slot
iDoor (Optional) 1 x iDoor bracket reserved

Storage

Storage
  • 1 x Micro SD slot
  • 1 x M.2 2280 (M-Key, signal: SATA3)
  • 1 x SATA3 connector

Power

Type Terminal block, 2-pin, AT
Input Voltage 19-24 VDC, 1.5A-1.18A

Environment

Operating temperature MODE 0 10W 4 CORES: -10 ~ +60°C with 0.7 m/s airflow
Operating humidity 95% @ 40 °C; 104 °F (non-condensing)
Vibration 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock 10G / 11 ms

Mechanical Specifications

Dimensions (W x D x H)

147 x 118 x 52 mm (5.7" x 4.6" x 2")
Weight 1.2 kg (3.5 lb)
Installation Desktop / DIN-rail
BSP
Jetpack 4.6
Certifications CE/FCC/BSMI/CCC (No RED certification)
