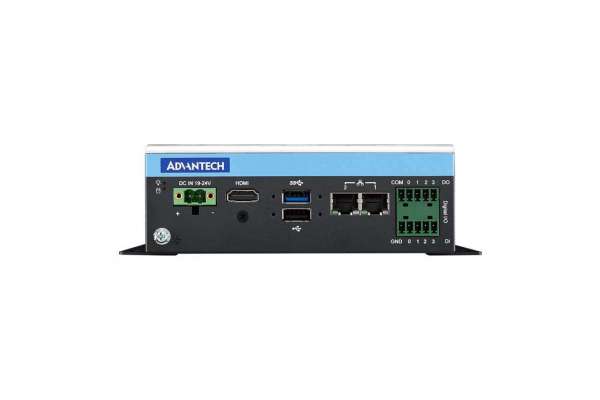

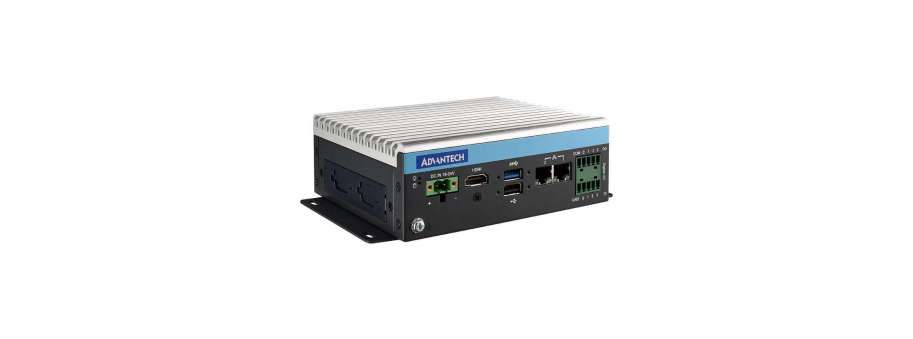

Fanless AI Inference System Based on NVIDIA® Jetson™ Xavier NX with 2 x GbE, 1 x USB 3.0 , 1 x USB 2.0 Advantech MIC-710AIX

Price and avalability

Partnumber Description Price VAT incl Avalability
MIC-710AIX-00A1 Система штучного інтелекту Advantech на базі NVIDIA Jetson Xavier NX AI Inference System  92 106,0
MIC-710AIX-00A2 NVIDIA Jetson Xavier NX AI system_NO SD  92 106,0

AI Inference System based on NVIDIA Jetson™ Xavier NX. Fanless compact design for edge AI inference in smart city and manufacturing applications.

  • Fanless compact design
  • Embedded with NVIDIA® Jetson™ Xavier NX up to 21 TOPS
  • Supports 2 x GbE, 1 x USB 3.0 , 1 x USB 2.0
  • Supports 1 x mPCIe, 1 x M.2 2280 (SATA interface)
  • Supports Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Devices

Additional information

Jetson Xavier NX

Processor System

CPU 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU
GPU 384-core NVIDIA Volta GPU with 48 Tensor Cores
Memory 8GB LPDDR4
Flash 16G of eMMC

I/O

Ethernet 2 x 10/100/1000 Mbps
Display HDMI (Max. resolution 3840 x 2160 @ 60Hz)
USB
  • Internal: 1 x USB 2.0
  • External: 1 x USB 2.0, 1 x USB 3.0
DI/DO 4-ch DI, 4-ch DO
COM
  • Internal: 1 x RS-232 pin header
  • External: 1 x RS-232/RS-422/RS-485
OTG USB 1 x Micro USB (Internal)

Expansion

Mini PCIe 1 x mPCIe (Signal: PCIe + USB)
SIM 1 x Nano SIM slot
iDoor (Optional) 1 x iDoor bracket reserved

Storage

Storage
  • 1 x Micro SD slot
  • 1 x M.2 2280 (M-Key, signal: SATA3)
  • 1 x SATA3 connector

Power

Type Terminal block, 2-pin, AT
Input Voltage 19-24 VDC, 1.5A-1.18A

Environment

Operating temperature MODE 2 15W 6CORES: -10 ~ +60 °C with 0.7 m/s airflow
Operating humidity 95% @ 40 °C; 104 °F (non-condensing)
Vibration 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock 10G / 11 ms

Mechanical Specifications

Dimensions (W x D x H) 147 x 118 x 52 mm (5.7" x 4.6" x 2")
Weight 1.2 kg (3.5 lb)
Installation Desktop / DIN-rail

BSP

Jetpack 4.6
Certifications CE/FCC/BSMI/CCC (No RED certification)
