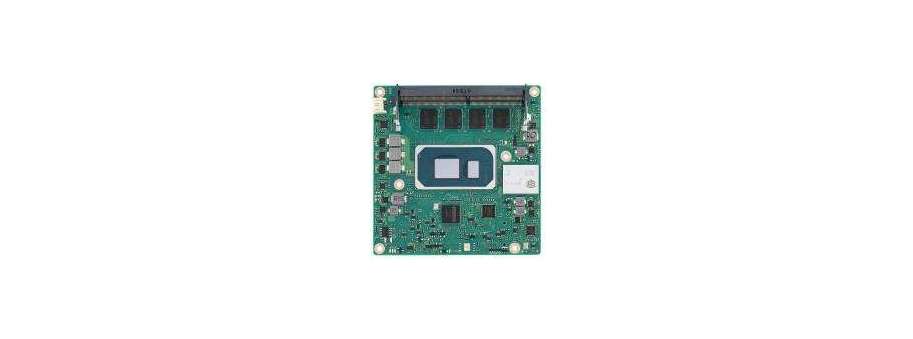

11th Gen. Intel® Core™ Processor U-Series (Code Name: Tiger Lake-UP3) COM Express® Compact Type6 Advantech SOM-6883

Price and avalability

Partnumber Description Price VAT incl Avalability
SOM-6883C7A-S8A1 i7-1185G7E 1.8G DDR4 16GB NVMe 32GB  87 076,6
SOM-6883C7-S8A1 i7-1185G7E 16GBDDR4 PCIe x4  84 664,8
SOM-6883C5-S5A1 i5-1145G7E 8GBDDR4 PCIe x4  61 805,6
SOM-6883C5A-S5A1 i5-1145G7E 8GBDDR4 PCIe x4 w/eDP  58 321,9
SOM-6883C3-U2A1 i3-1115G4E PCIe x4  37 692,2
SOM-6883CR-S8A1 Celeron 6305E PCIe x4  26 310,2
SOM-6883R7X-S8A1 Ind i7-1185GRE 16GBDDR4 32GNVMe Phoenix -40~85C  113 119,0
SOM-6883R5X-S5A1 Ind i5-1145GREE 8GBDDR4 PCIe x4 Phoenix -40~85C  82 253,7
SOM-6883R3X-U2A1 Ind i3-1115GRE PCIe x4 Phoenix -40~85C   51 871,1
SOM-6883C3B-U2A1 i3-1115G4E 8GBDDR4 w/2 port USB4  33 673,4
  • 11th Gen. Intel® Core™ Processor U-Series
  • COM Express R3.0 Compact Module Type 6 Pinout
  • Dual channel with one memory down and one SO-DIMM
  • High speed I/O: 1 PCIe x4 Gen4, 5 PCIe x1 Gen3, 4 USB3.2 Gen2
  • Onboard NVMe x4 SSD up to 64GB, TPM2.0
  • Supports SUSI, DeviceOn and Edge AI Suite
CPU Core™ i7-1185G7E Core™ i5-1145G7E Core™ i3-1115G4E Celeron® 6305E Core™ i7-1185GRE Core™ i5-1145GRE Core™ i3-1115GRE
Base Frequency 2.8GHz 2.6GHz 3.0GHz 1.8GHz 2.8GHz 2.6GHz 2.6GHz
Turbo Frequency 4.4GHz 4.1GHz 3.9GHz N/A 4.4GHz 4.1GHz 3.9GHz
Cores 4 4 2 2 4 4 2
Cache 12 MB 8 MB 6 MB 4 MB 12 MB 8 MB 6 MB
CPU TDP 28W 28W 28W 15W 28W 28W 28W
Configurable TDP-up/ Frequency 15W/1.8GHz 15W/1.5GHz 15W/2.2GHz N/A 15W/1.8GHz 15W/1.5GHz 15W/2.2GHz
Configurable TDP-down/Frequency 12W/1.2GHz 12W/1.1GHz 12W/1.7GHz N/A 12W/1.2GHz 12W/1.1GHz 12W/1.7GHz

Additional information

Form Factor

Form Factor COM Express Compact Module
Pin-out Type COM Express R3.0 Type 6 compatible

Memory

Technology DDR4, Dual-channel memory,up to 3200 MT/s
Onboard Memory 16GB/8GB
SODIMM Memory up to 32 GB by one SODIMM Socket

Graphics

Controller Intel® Iris® Xe Graphics/Intel® UHD Graphics
Graphics Max Dynamic Frequency
  • Core™ i7-1185G7E - 1.35GHz
  • Core™ i5-1145G7E - 1.30GHz
  • Core™ i3-1115G4E - 1.25GHz
  • Celeron® 6305E - 1.25GHz
  • Core™ i7-1185GRE - 1.35GHz
  • Core™ i5-1145GRE - 1.30GHz
  • Core™ i3-1115GRE - 1.25GHz
2D&3D/HW Acceleration

HW Encode: Supports AVC, MPEG-2, HEVC, and VP9.

HW Decode: Supports Direct3D* 9 Video API (DXVA2),Direct3D12 Video API,Intel Media SDK,MFT (Media Foundation Transform) filters,Intel VA API

Display

VGA 1920 x 1200@60Hz
LCD LVDS dual channel: 1920 x 1200@60Hz (option support eDP 4096 x 2304@60Hz, 24bpp)
DDI

3 DDI ports support configurable HDMI/DisplayPort

-HDMI 2.0b: 4Kx2K 48-60Hz 24bpp

-DisplayPort 1.4: 4096x2304 60Hz 36bpp

Multiple Display Four displays with each display combinations

Expansion

PCI Express x1 (Gen3) 5 PCIe x1 (Up to 6 by option)

Serial Bus

SMBus Yes
I2C Bus Yes

Ethernet

Gigabit Intel I225 IT controller ; Speed: 10M / 100M / 1000M / 2.5G speeds

I/O

SATA3.0 2 Ports (6Gbps)
USB3.2 (Gen2) 4 Ports (10 Gbps)
USB2.0 8 Ports (480 Mbps)
LPC Yes
SPI Bus Yes
GPIO 8-bit GPIO
Watchdog 65536 level, 0 ~ 65535 sec
CAN Bus Support one CAN Bus option from COM Port
COM Port 2 Ports (2-Wire)
TPM TPM2.0
Smart Fan 2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board

Power

Type ATX: Vin, VSB; AT: Vin
Supply Voltage Vin: 8.5V ~ 20V; VSB: 4.75V ~ 5.25 V, RTC Battery: 2.0V ~ 3.3V

Environment

Operating Temperature
  • Standard: 0 ~ 60 °C
  • Extend: -40 ~ 85 °C
Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)
Humidity
  • Operating: 40 °C @ 95% relative humidity, non-condensing
  • Storage: 60 °C @ 95%relative humidity, non-condensing
Vibration Resistance 3.5 Grms

Mechanical

Dimensions 95 x 95 mm (3.74" x 3.74")
