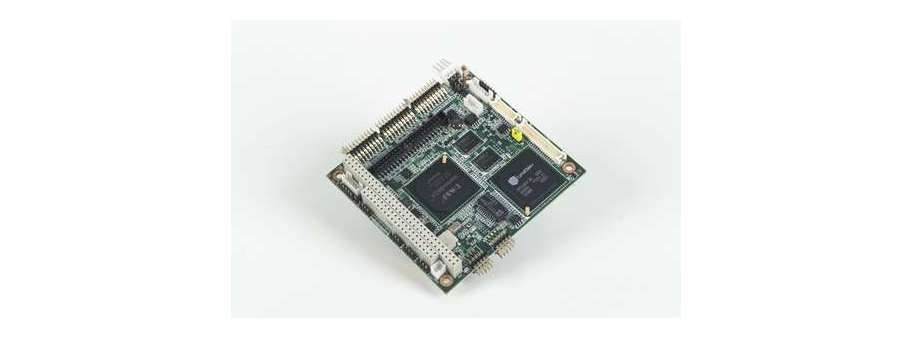

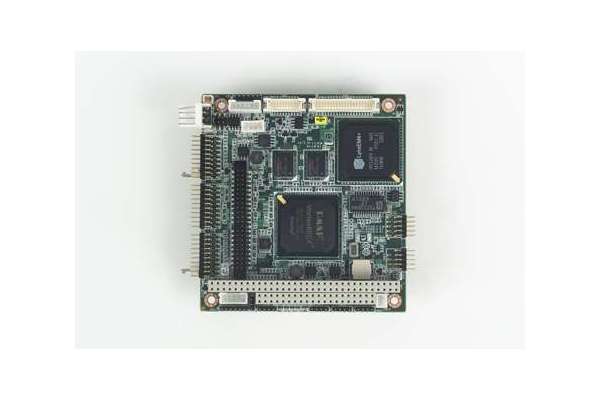

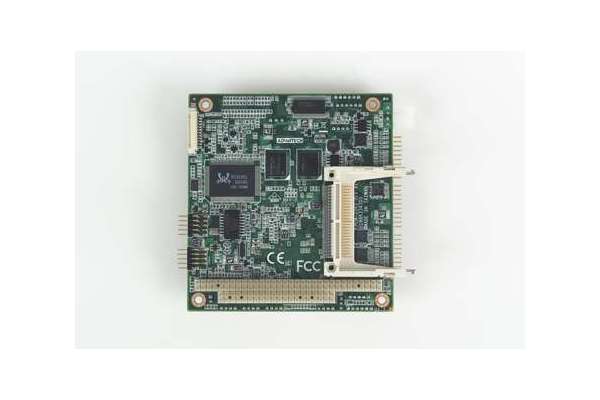

Ultra low power fanless CPU module PCM-3343

PC/104 CPU module driven by the ultra low power System On Chip DM&P Vortex86DX Advantech PC-3343 with onboard memory

System Components >> Embedded boards and Modules

 Price and avalability

Manufacturer: Advantech Co., Ltd.

PC/104 CPU module driven by the ultra low power DM&P Vortex86DX

Advantech PCM-3343 - DM&P Vortex86DX-800MHz PC/104 SBC, LCD, Ethernet, CFC, Onboard Memory

  • Ultra low power, fanless DM&P Vortex86DX- 800MHz and 256 MB onboard DDR2 memory
  • VGA+LCD dual display outputs, 24-bit LVDS/TTL supported
  • Integrated Floating Point Unit
  • Supports 2 Fast Ethernet ports in standard PC/104 96 x 90 mm dimensions
  • Supports embedded software APIs and Utilities

PCM-3343 is a cost-effective System On Chip (SoC) PC/104 CPU module driven by the ultra low power DM&P Vortex86DX 800 MHz processor with 256 MB of DDR2 SDRAM memory on board. PCM-3343 has the standard dimensions of 96 x 90 mm in a fanless PC/104 architecture, supporting rich graphic output including VGA and 24-bit LVDS or TTL up to 1024 x 768 resolution. PCM-3343 delivers ultra low power consumption of less than 5 Watts under full load, and extended temperature support between -40 ~ 85° C. It is well-suited for those applications which need only basic CPU performance, but very low power consumption at an attractive price. This latest SoC CPU board will appeal to system integrators developing DOS, WinCE, WinXP Embedded and Linux –based OS applications in factory automation and industrial instrument fields as well as medical products and devices.

Price and avalability

Partnumber Description Price VAT incl Avalability
PCM-3343EF-256A1E Встраиваемый процессорный модуль DM&P Vortex86DX-800MHz PC/104 SBC, LCD,LAN,CFC  6 701,9
PCM-3343EL-256A1E Встраиваемый процессорный модуль DM&P Vortex86DX-800MHz PC/104 SBC, w/oVGA/TTL CF  4 970,5
PCM-3343Z-256A1E Встраиваемый процессорный модуль PCM-3343F-256A1E extended temp -20~80C  12 044,5
PCM-3343Z2-256A1E Встраиваемый процессорный модуль PCM-3343F-256A1E extended temp -40~85C  13 952,8

Additional information

Part Number

PCM-3343EF-256A1E

PCM-3343EL-256A1E

Form Factor



Form Factor

PC/104

PC/104

Processor



CPU

DM&P Vortex86DX 800 MHz, supports Floating Point Unit (FPU)

DM&P Vortex86DX 800 MHz, supports Floating Point Unit (FPU)

Frequency

800MHz

800MHz

L2 Cache

256KB

256KB

BIOS

Award integrated 16 Mbit ROM in SOC

Award integrated 16 Mbit ROM in SOC

Memory



Technology

DDR2 333 MHz SDRAM on board

DDR2 333 MHz SDRAM on board

Max. Capacity

512MB

512MB

Onboard Memory

Onboard 256 MB (512 MB supported by request)

Onboard 256 MB (512 MB supported by request)

Display



Graphic Engine

62.5 MHz single clock/cycle engine (EM+)/-





86 MHz single clock/cycle engine (EM4+)





Designed to accelerate DirectDraw







Graphic Memory

4 MB internal memory/-



VGA

up to 1024 x 768 at 85 Hz/-



LCD (TTL/LVDS/eDP)

LVDS:24-bit up to 1024 x 768/-





TTL: single channel 24 bits up to 1024 x 768



Multiple Display

Dual/-



Expansion



I2C Bus

1

1

PC/104

1

1

Ethernet



Controller

GbE1: Vortex86DX SOC integrated

GbE1: Vortex86DX SOC integrated



GbE2: Realtek RTL8100C-LF

GbE2: Realtek RTL8100C-LF

Speed

10/100 Mbps

10/100 Mbps

Connector

Pin Header

Pin Header

Watchdog Timer



WatchDog Timer

Yes

Yes

Storage



IDE

1

1

CompactFlash

1

1

I/O



USB2.0

4,2

4,2

SPI Bus

Optional onboard 4 MB SPI Flash Disk (Supported by request for boot device or storage on DOS OS)

Optional onboard 4 MB SPI Flash Disk (Supported by request for boot device or storage on DOS OS)

GPIO

1

1

COM Port

4 (3 x RS232, 1 x RS232/ 422/ 485)/2 (1 x RS232, 1 x RS232/ 422/ 485)/2 (1 x RS232, 1 x RS232/ 422/ 485)

4 (3 x RS232, 1 x RS232/ 422/ 485)/2 (1 x RS232, 1 x RS232/ 422/ 485)/2 (1 x RS232, 1 x RS232/ 422/ 485)

Keypad

1

1

Power



Power Type

AT

AT

Power Supply Voltage

5V ± 5% only to boot up (12 V is optional for LCD inverter and add-on card)

5V ± 5% only to boot up (12 V is optional for LCD inverter and add-on card)

Power Consumption (Idle)

0.74 @ +5 V, 3.7 Watt (Vortex86DX 1 GHz, DDR2 256 MB)

0.74 @ +5 V, 3.7 Watt (Vortex86DX 1 GHz, DDR2 256 MB)

Power Consumption (Full Load)

0.85 A @ +5 V, 4.25 Watt (Vortex86DX 1 GHz, DDR2 256 MB)

0.85 A @ +5 V, 4.25 Watt (Vortex86DX 1 GHz, DDR2 256 MB)

Battery

3 V/210 mAH

3 V/210 mAH

Environment



Operational Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 85% RH non-condensing)

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 85% RH non-condensing)

Non-Operational Temperature

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

Physical



Dimension (mm)

96 x 90 mm (3.8" x 3.5")

96 x 90 mm (3.8" x 3.5")

Weight

0.508 kg (1.12 lb)

0.508 kg (1.12 lb)

Operating System



Microsoft Windows

Yes

Yes

Linux

Yes

Yes

Certification



EMC

CE, FCC

CE, FCC
