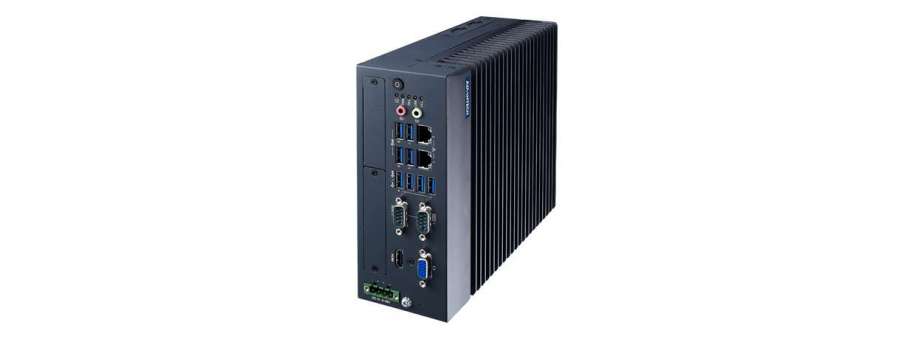

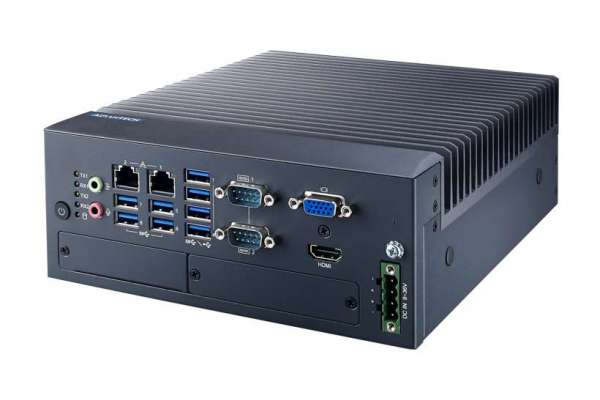

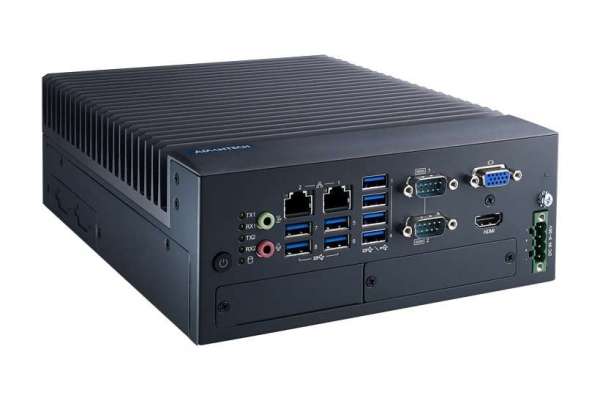

Compact Modular System MIC-770 V2

Compact Fanless System by Advantech with 10th Gen Intel® Xeon®/Core™ i CPU Socket (LGA 1200) MIC-770 V2

Industrial Computer >> Embedded computers with expansion slots

 Price and avalability

Manufacturer: Advantech Co., Ltd.

  • Intel® 10th Gen Xeon®/Core™ i CPU socket-type (LGA1200) with Intel® W480E/H420E chipset
  • Wide operating temperature (-10 ~ 60 °C)
  • VGA and HDMI output
  • 2 x GigaLAN, 2 x USB 3.2 (Gen2) and 6 x USB 3.2 (Gen1)
  • 2 x RS-232/422/485 and 4 x RS232 serial ports (Optional)
  • 1 x 2.5" HDD/SSD, and 1 x mSATA
  • 9 ~ 36 VDC input power range
  • Supports FlexIO and iDoor technology, flexible configure additional HDMI, DVI, Comport, DIO, Remote switch IO
  • Supports Advantech i-Modules

Price and avalability

Partnumber Description Price VAT incl Avalability
MIC-770W-20A1 W480E, Modular IPC  32 076,1
MIC-770H-20A1 H420E, Modular IPC  28 905,9

Additional information

Specifications

10th Generation Processor (TDP 35W)


CPU W-1290TE* W-1270TE* W-1250TE* i9-10900TE i7-10700TE i5-10500TE i3-10100TE G6400TE G5900TE
Core/Thread number 10/20 8/16 6/12 10/20 8/16 6/12 4/8 2/4 2/2
Base Frequency 1.80 GHz 2.00 GHz 2.40 GHz 1.80 GHz 2.00 GHz 2.30 GHz 2.30 GHz 3.20 GHz 3.00 GHz
Max Tirbo Frequency 4.50 GHz 4.40 GHz 3.80 GHz 4.50 GHz 4.40 GHz 3.70 GHz 3.60 GHz
L3 Cache 20 MB 16 MB 12 MB 20 MB 16 MB 12 MB 6 MB 4 MB 2 MB
Temperature -10 ~ 60 °C (w/ industrial wide-temp SSD, 0.7m/s air flow)
Chipset W480E/H420E *Xeon CPU supported by W480E SKU
BIOS AMI 256Mb/128Mb SPI Flash

10th Generation Processor (TDP 65W)


CPU i9-10900E i7-10700E i5-10500E i3-10100E G6400E (58W) G5900E (58W)
Core/Thread number 10/20 8/16 6/12 4/8 2/4 2/2
Base Frequency 2.80 GHz 2.90 GHz 3.10 GHz 3.20 GHz 3.80 GHz 3.20 GHz
Max Tirbo Frequency 4.70 GHz 4.50 GHz 4.20 GHz 3.80 GHz
L3 Cache 20 MB 16 MB 12 MB 6 MB 4 MB 2 MB
Temperature -10 ~ 50 °C (w/ industrial wide-temp SSD, 0.7m/s air flow)
Chipset W480E/H420E
BIOS AMI 256Mb/128Mb SPI Flash

Memory


Technology Dual-channel DDR4 2933/2666 MHz (W480E SKU supports ECC)
Socket 2 x 260-pin DDR4 SODIMM (up to 32GB per socket)
Maximum Capacity 64GB

Display


Chipset
  • Xeon and Core i: Intel® HD Graphics 630, supports DirectX 12
  • Pentium/Celeron: Intel® HD Graphics 610, supports DirectX 12

VGA 1 x DB15, up to 1920 x 1200 maximum resolution
HDMI 1 x HDMI, up to 4096 x 2160@30Hz (with optional expansion cable for 2nd HDMI or 1 x DVI connector)
Multiple Display
  • W480E: 3 x independent displays (third display output via optional cable)
  • H420E: 2 x independent displays


Ethernet


Controller
  • W480E LAN1: Intel® I219LM, LAN2: Intel® i210IT
  • H420E LAN1: Intel® I219V, LAN2: Intel® i210IT

Interface 2 x RJ45

Storage


HDD 1 x 2.5" HDD/SSD
mSATA 1
RAID 0/1/5/10 (W480E SKU only)

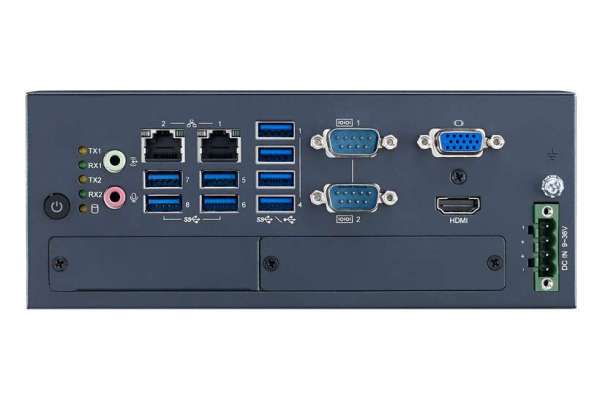

I/O


USB
  • W480E: 2 x USB3.2 (Gen2), 6 x USB3.2 (Gen1), 1 x USB 2.0 (Internal)
  • H420E: 4 x USB3.2 (Gen1), 4 x USB2.0

Serial Port 2 x DB9, RS-232/422/485 support auto flow control; 4 x RS-232 (Optional)
Audio 2 (1 x line out and 1 x mic in)

Expansion


Module Supports Advantech i-Modules
Mini PCIe/mSATA
  • W480E: 1 x mini PCIe (via Nano-SIM), 1 x mini PCIe/mSATA
  • H420E: 1 x mini PCIe (via Nano-SIM), 1 x mSATA


LED and Switch


LED 2 (1 x Storage and 1 x Power), 4 for COM1 TX/RX and COM2 TX/RX
Button 1 x Power on/off switch
Remote Switch Yes, 2pin terminal block (Optional)

Power


Type ATX/AT
Input Voltage 9 ~ 36 VDC
Power consumption Maximum: 112W

Watchdog Timer


Output System reset
Interva Programmable 1 ~ 255 sec/min

Environment


Humidity 95% @ 40 °C (non-condensing)
Vibration With SSD: 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis With 2.5" HDD: 1 Grms @ 5 ~ 500 Hz, random, 1 hr/axis           2G
Shock With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration           50G 11 ms

Mechanical


Dimensions (W x H x D) 77 x 192 x 230 mm (3.07" x 7.55" x 9.05")
Weight 2.8 kg (6.17 lbs)
Installation Desktop/wall mount

Certifications


EMC CE/FCC Class A, CCC, BSMI
Safety CB/UL, CCC, BSMI
OS Support Windows 10, Windows 10 IoT, Linux OS
