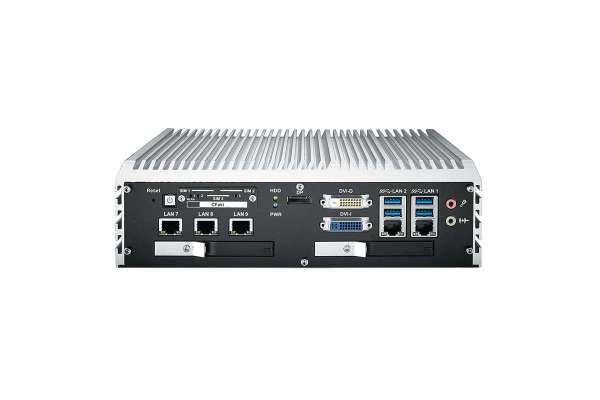

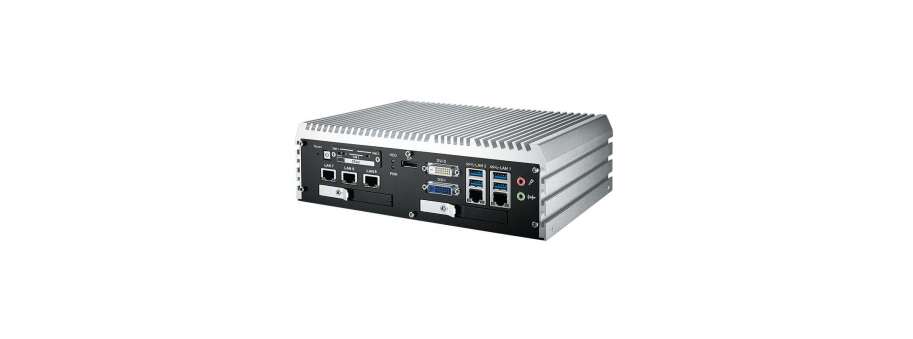

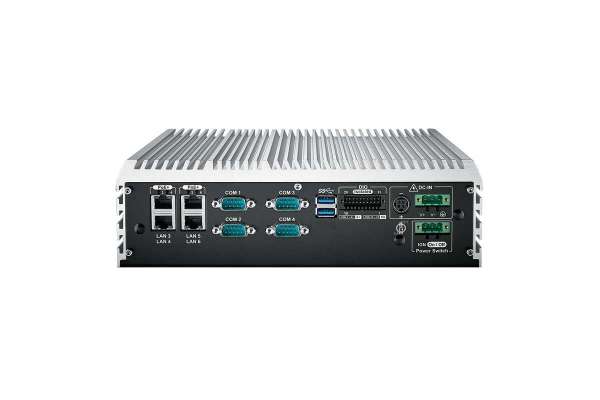

Fanless Embedded System ECS-9000

Fanless Embedded System ECS-9000 with Intel® C236 Chipset, 9 GigE LAN with 4 PoE+

Industrial Computer >> Embedded computers and fanless BoxPCs

 Price and avalability

Manufacturer: Vecow

With Workstation-grade 7th Generation Intel® Xeon®/Core™ i7/i5/i3 processor (Kaby Lake-S/Skylake-S), fanless -40°C to 75°C operating temperature, all-in-one integrated features, multiple I/O connection, user-friendly, smart manageability, outstanding system performance & mobile availability, 6V to 36V power input with 80V surge protection, ignition power control, intelligent circus protection and rugged reliability in harsh environments, Vecow ECS-9000 Series Fanless Embedded System is your excellent choices for Machine Vision, Intelligent Automation, Smart Manufacturing, Intelligent Surveillance, Vehicle Computing, Robot Control, and any Industry 4.0 performance-driven real-time embedded computing applications.

  • LGA 1151 Socket supports 7th Generation Intel® Xeon®/Core™ i7/i5/i3 processor (Kaby Lake-S/Skylake-S)
  • Fanless, -40°C to 75°C Operating Temperature
  • 9 Independent GigE LAN with 4 IEEE 802.3at PoE+, iAMT 11.0 supported
  • 3 Front-access SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS
  • 16 Isolated DIO
  • 2 Front-access 2.5" SSD/HDD Tray
  • 6V to 36V DC-in with 80V Surge Protection
  • Configurable Ignition Power Control
  • 6 USB 3.0, 4 COM, 3 Mini PCIe
  • Onboard DVI-I, DVI-D and DisplayPort display interface, up to 4K display
  • Optional supports 2-port SFP LAN/10 GigE RJ45/Fiber LAN

Price and avalability

Partnumber Description Price VAT incl Avalability
ECS-9000-9R Промисловий компактний комп'ютер Vecow ECS-9000-9R (ECS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 9 GigE LAN w/4 PoE+, 2 SSD Tray, 4 COM, 3 SIM, 6 USB 3.0, 16 Isolated DIO)  48 134,0
ECS-9000-9GD Промисловий компактний комп'ютер Vecow ECS-9000-9GD (ECS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 9 GigE LAN w/4 PoE+, 4 COM, 3 SIM, 6 USB 3.0, 16 Isolated DIO)  45 514,5
ECS-9000-PoER Промисловий компактний комп'ютер Vecow ECS-9000-PoER (ECS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 6 GigE LAN w/4 PoE+, 2 SSD Tray, 4 COM, 3 SIM, 6 USB 3.0, 16 Isolated DIO)  41 585,2
ECS-9000-PoE Промисловий компактний комп'ютер Vecow ECS-9000-PoE (ECS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 6 GigE LAN w/4 PoE+, 4 COM, 3 SIM, 6 USB 3.0, 16 Isolated DIO)  38 965,7
ECS-9000-6F Промисловий компактний комп'ютер Vecow ECS-9000-6F (ECS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 6 GigE LAN with 2 SFP, 4 COM, 3 SIM, 6 USB 3.0, 16 GPIO)  41 257,8
ECS-9000-6FR Промисловий компактний комп'ютер Vecow ECS-9000-6FR (ECS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 6 GigE LAN with 2 SFP, 2 SSD Tray, 4 COM, 3 SIM, 6 USB 3.0, 16 GPIO)  43 877,3
ECS-9000-4R Промисловий компактний комп'ютер Vecow ECS-9000-4R (ECS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 4 GigE LAN, 2 SSD Tray, 4 COM, 3 SIM, 6 USB 3.0, 16 GPIO)  37 001,0
ECS-9000-4G Промисловий компактний комп'ютер Vecow ECS-9000-4G (ECS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 4 GigE LAN, 4 COM, 3 SIM, 6 USB 3.0, 16 GPIO)  34 381,5
ECS-9000-2R Промисловий компактний комп'ютер Vecow ECS-9000-2R (ECS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 2 GigE LAN, 2 SSD Tray, 4 COM, 3 SIM, 6 USB 3.0, 16 GPIO)  33 726,6
ECS-9000-2G Промисловий компактний комп'ютер Vecow ECS-9000-2G (ECS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 2 GigE LAN, 4 COM, 3 SIM, 6 USB 3.0, 16 GPIO)  31 107,0
ECS-9055R Промисловий компактний комп'ютер Vecow ECS-9055R (ECS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 6 GigE LAN with 4 PoE+, 2 10G RJ45, 2 SSD Tray, 4 COM, 3 SIM, 6 USB 3.0, 16 Isolated DIO)  57 302,4
ECS-9055 Промисловий компактний комп'ютер Vecow ECS-9055 (ECS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 6 GigE LAN with 4 PoE+, 2 10G RJ45, 4 COM, 3 SIM, 6 USB 3.0, 16 Isolated DIO)  54 682,9
ECS-9071R Промисловий компактний комп'ютер Vecow ECS-9071R (ECS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 6 GigE LAN with 4 PoE+, 2 10G SFP+, 2 SSD Tray, 4 COM, 3 SIM, 6 USB 3.0, 16 Isolated DIO)  57 302,4
ECS-9071 Промисловий компактний комп'ютер Vecow ECS-9071 (ECS-9000, Intel® Core™ i7/ i5/ i3 Processor (Skylake-S), 6 GigE LAN with 4 PoE+, 2 10G SFP+, 4 COM, 3 SIM, 6 USB 3.0, 16 Isolated DIO)  54 682,9

Additional information

System
Processor Intel® Xeon®/Core™ i7/i5/i3 processor (Kaby Lake-S/Skylake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 64GB
I/O Interface
Serial  4 COM RS-232/422/485
USB

- 6 USB 3.0 (External)

- 1 USB 3.0 (Internal)
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO
LED Power, HDD, PoE
SIM Card  3 SIM Card Socket (External)
Expansion
Mini PCIe

- 3 Mini PCIe Socket :

- 2 Full-size Mini PCIe for PCIe/USB/External SIM Card/ mSATA

- 1 Half-size Mini PCIe for PCIe/USB 3.0/External SIM Card

SUMIT A, B 2 SUMIT Slot (Optional)
Graphics
Graphics Processor Intel® HD Graphics P630/630/P530/530
Interface

- DVI-I : Up to 1920 x 1200 @ 60Hz

- DVI-D : Up to 1920 x 1200 @ 60Hz

- DisplayPort : Up to 4096 x 2304 @ 60Hz

Storage
SATA 2 SATA III (6Gbps)
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
SATA DOM 1 SATA II (3Gbps)
Storage Device

- 1 CFast Socket, Push-in/Push-out Ejector

ECS-9000-9R, PoER, 6FR, 4R, 2R :

- 2 Front-access 2.5" SSD/HDD Tray

ECS-9000-9GD. PoE, 6F, 4G, 2G :

- 2 2.5" SSD/HDD Bracket (Internal)

Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
LAN 7 Intel® 82574L GigE LAN
LAN 8 Intel® 82574L GigE LAN
LAN 9 Intel® 82574L GigE LAN
PoE
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
Power
Power Input 6V to 36V, DC-in
Power Interface

- 3-pin Terminal Block : V+, V-, Frame Ground

- Mini-DIN 4-pin
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension  (W x L x H) 260mm x 175mm x 79mm (10.2" x 6.9" x 3.1")
Weight 3.8 kg (8.38 lb)
Mounting

- Wallmount by mounting bracket

- DIN Rail Mount
Environment
Operating Temperature

35W TDP CPU :

•  Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F)

•  Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F)

65W TDP CPU :

Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F)

80W TDP CPU :

Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to 45°C (-40°F to 113°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Shock

- IEC 60068-2-27

- SSD : 50G @ wallmount, Half-sine, 11ms

Vibration

- IEC 60068-2-64

- SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC E13, CE, FCC, EN50155, EN50121-3-2
