Digital I/O Module ADAM-4056SO

Digital I/O Module ADAM-4056SO/ADAM-4056S

Signal input/output >> Remote input/output

 Price and avalability

Manufacturer: Advantech Co., Ltd.

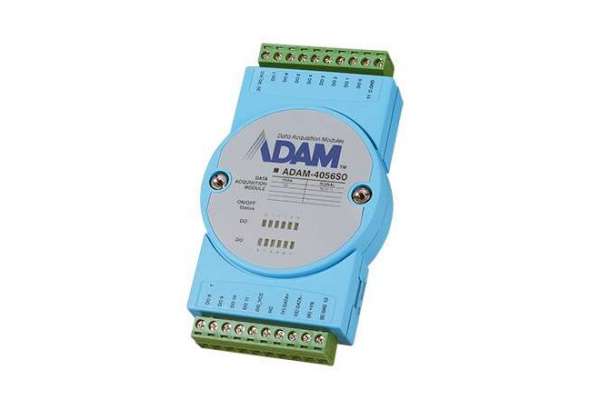

ADAM-4056SO

12-channel Source Type Isolated Digital Output Module

  • DO Source Power Failure Detection
  • I/O Type: Source Type Output
  • 12 Channels
  • Digital Output: VCC: 1-~35 Vdc, Current: 1A (per ch.)
  • Over Current Detection

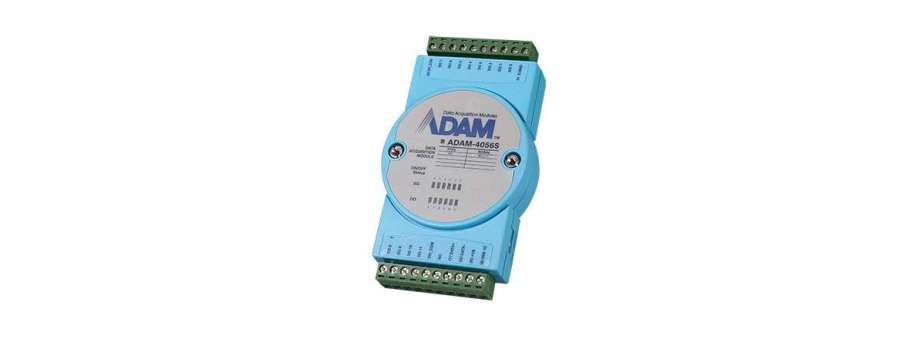

ADAM-4056S

12-ch Sink Type Isolated Digital Output Module with Modbus

  • Sink Type: Digital Output
  • Digital Output: Open collector to 40V (200 mA max. load)
  • 12 Channels
  • I/O Type: Sink Type Output

Price and avalability

Partnumber Description Price VAT incl Avalability
ADAM-4056SO-AE Модуль виведення Advantech ADAM-4056SO, з RS485, 12 дискретних каналів з оптичною ізоляцією і світлодіодною індикацією, Modbus  3 996,3 Доступно
ADAM-4056S-AE Модуль виведення Advantech ADAM-4056S, з RS485, 12 дискретних каналів з ізоляцією і світлодіодною індикацією, Modbus  3 411,7

Additional information

Part Number ADAM-4056SO-AE ADAM-4056S-AE

Display


LED Indicators Power, DO Power, DO

Power Supply


Power Requirement 10~30 VDC 10~30 VDC

General


Watchdog Timer System (1.6 second) & Communication System (1.6 second) & Communication
Connector 2 x plug-in terminal block (#14~22 AWG) 2 x plug-in terminal block (#14~22 AWG)
Temperature (Operating) -10~70 °C (14~158 °F) -10~70 °C (14~158 °F)
Humidity 5~95 % RH 5~95 % RH
Temperature (Storage) -25~85 °C (-13~185 °F) -25~85 °C (-13~185 °F)
Interface RS-485 RS-485
Isolation Protection 5,000 VDC 5,000 VDC
Communication Protocol ASCII command & Modbus/RTU ASCII command & Modbus/RTU
Communication Speed Serial: From 1,200 to 115.2 k Serial: From 1,200 to 115.2 k
Comm. Distance Serial: 1.2 km Serial: 1.2 km
Data Flow Control Yes Yes

Digital Output


Channels 12 (Source type) VCC: 10~35 VDC, Current: 1 A (per channel) Over current detection and protection 12 (Sink type) Open collector to 40V, 200 mA max. load
Power Dissipation  -  Chanel: 1 W max Total: 2.2 W (8 Channels)
