MODBUS/TCP modules ADAM-6200

Advantech ADAM-6200 series is a new selection of Ethernet I/O family comprised of analog I/O, digital I/O and relay modules.

Signal input/output >> Remote input/output

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Advantech ADAM-6200 series is a new selection of Ethernet I/O family comprised of analog I/O, digital I/O and relay modules. With Daisy chain and HTML5, ADAM-6200 series module possesses plenty of advanced features whatever the evolution of hardware design and what’s worth expecting for user is a variety of useful software functions to make it effective in the application field. With new design and strong capabilities, ADAM-6200 can be a well-integrated I/O solution in Ethernet control system.

In order to fulfill ideal remote DAQ devices in IoT world, Advantech releases ADAM-6200 series, a new selection of Ethernet I/O family comprised of analog I/O, digital I/O and relay modules. ADAM-6200 series module possesses plenty of advanced features whatever the evolution of hardware design and what’s worth expecting for user is a variety of useful software functions to make it effective in the application field. With new design and strong capabilities, ADAM-6200 can be a well-integrated I/O solution in Ethernet control system.

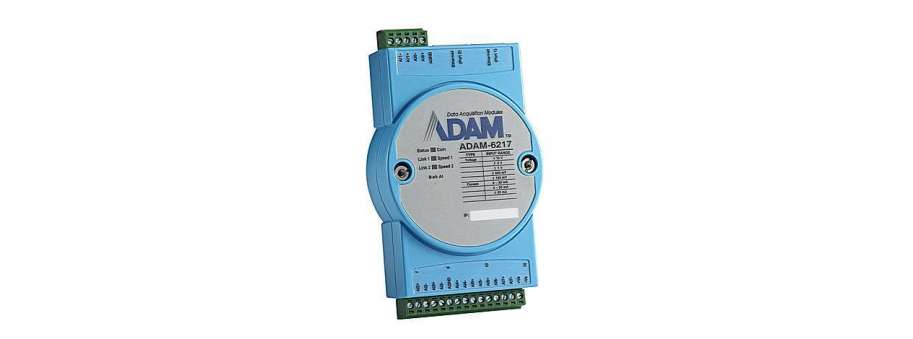

ADAM-6217 8-ch Isolated Analog Input Modbus TCP Module

  • 8-ch differential AI, 2-port Ethernet
  • Daisy chain connection with auto-bypass protection
  • Remote monitoring and control with mobile devices
  • Group configuration capability for multiple module setup
  • Flexible user-defined Modbus address
  • Intelligent control ability by Peer-to-Peer and GCL function
  • Multiple protocol support: Modbus TCP, TCP/IP, UDP, HTTP, DHCP
  • Web language support: XML, HTML 5, Java Script

ADAM-6224 4-ch Isolated Analog Output Modbus TCP Module

  • 4-ch AO, 4-ch DI, 2-port Ethernet

ADAM-6250 15-ch Isolated Digital I/O Modbus TCP Module

  • 8-ch DI, 7-ch DO, 2-port Ethernet

ADAM-6251 16-ch Isolated Digital Input Modbus TCP Module

  • 16-ch DI, 2-port Ethernet

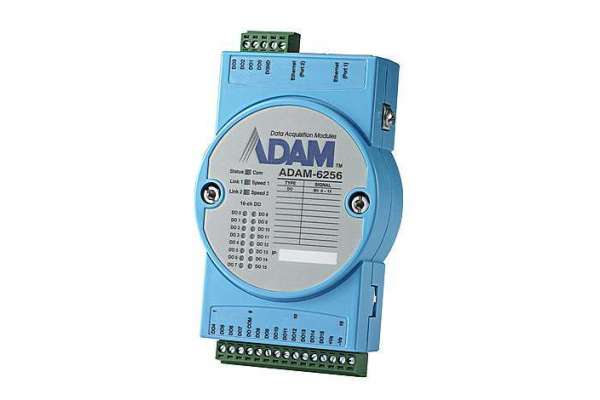

ADAM-6256 16-ch Isolated Digital Output Modbus TCP Module

  • 16-ch DO, 2-port Ethernet

ADAM-6260 6-ch Relay Output Modbus TCP Module

  • 6-ch Relay Output, 2-port Ethernet

ADAM-6266 4-ch Relay Output Modbus TCP Module with 4-ch DI

  • 4-ch Relay Output, 4-ch DI, 2-port Ethernet

Price and avalability

Partnumber Description Price VAT incl Avalability
ADAM-6217-AE Модуль ізольованого аналогового входу 8-ch Isolated Analog Input Modbus TCP Module  9 249,0
ADAM-6217-B Модуль ізольованого аналогового входу 8-ch Isolated Analog Input Modbus TCP Module  8 986,5
ADAM-6224-AE Модуль ізольованого виходу 4-ch Isolated Analog Output Modbus TCP Module  10 546,3 Доступно
ADAM-6250-AE Модуль ввода-вывода 15-ch Isolated Digital I/O Modbus TCP Module  6 304,1
ADAM-6250-B Модуль дискретного вводу-виводу 15-ch Isolated Digital I/O Modbus TCP Module  6 131,5 Доступно
ADAM-6251-AE Модуль дискретного вводу-виводу 16-ch Isolated Digital Input Modbus TCP Module  6 304,1
ADAM-6251-B Модуль дискретного вводу-виводу 16-ch Isolated Digital Input Modbus TCP Module  6 131,5 Доступно
ADAM-6256-AE Модуль дискретного вводу-виводу 16-ch Isolated Digital Output Modbus TCP Module  6 304,1
ADAM-6256-B Модуль дискретного вводу-виводу 16-ch Isolated Digital Output Modbus TCP Module  6 131,5 Доступно
ADAM-6260-AE Модуль релейного вводу-виводу 6-ch Relay Output Modbus TCP Module  6 304,1
ADAM-6260-B Модуль релейного вводу-виводу 6-ch Relay Output Modbus TCP Module  6 372,6
ADAM-6266-AE Модуль релейного вводу-виводу 4-ch Relay Output Modbus TCP Module with 4-ch DI  6 304,1 Доступно
ADAM-6266-B Модуль релейного вводу-виводу 4-ch Relay Output Modbus TCP Module with 4-ch DI  6 131,5
